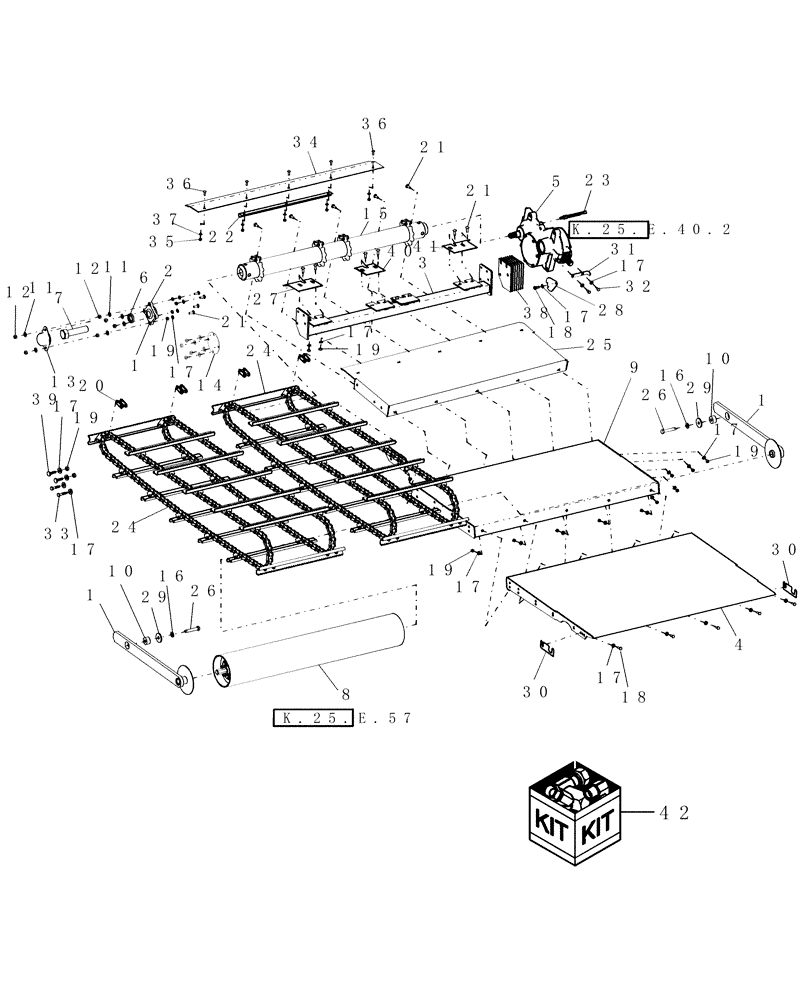

Запчасти Case IH AFX8010 (K.25.E.48[07]) - FEEDER FLOOR AND CHAINS - NON ROCK TRAP, PIN HAJ106756 AND AFTER K - Crop Processing

1

87282449

ARM

See Also: Ref. 42

2шт.

2

86995212

BEARING ASSY

1шт.

3

87385031

SUPPORT

1шт.

4

87393958

FLOOR

1шт.

5

87283912

GEARBOX

1шт.

6

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

1шт.

7

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

1шт.

8

86981181

ROLL

1шт.

9

87282537

FLOOR

1шт.

9

84084681

DIA KIT, HARVESTER

Perforated Floor; Includes: Instructions

1шт.

10

87282454

BUSHING,17mm ID x 44.45mm OD x 24mm L

2шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

12

9706685

NUT,M12 x 1.75, Cl 8

10шт.

13

86996082

COVER

1шт.

14

86995710

COVER

1шт.

15

87283554

SPROCKET

1шт.

16

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

34шт.

18

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

19

100016

NUT,M10 x 1.5, Cl 8

24шт.

20

87283350

LINK,41.4mm Pitch

4шт.

21

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

17шт.

22

87537644

CHANNEL

1шт.

23

87105603

SENSOR

1шт.

24

87397924

CHAIN,Feeder, 111 Links x 41.4mm = 4636.8mm

2шт.

25

87533206

FLOOR

1шт.

26

87283073

BOLT

2шт.

27

87384616

PLATE

1шт.

28

87281862

PLATE

1шт.

29

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

2шт.

30

87537643

SHIM,50mm OD x 1.32mm Thk

2шт.

31

87044119

BRACKET

1шт.

32

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

33

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

34

87533210

SEAL

1шт.

35

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

36

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

5шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

38

87385034

SHIM

8шт.

39

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

40

87384612

PLATE

2шт.

41

87384614

PLATE

1шт.

42

84182198

DIA KIT, HARVESTER

Feeder Chain Tensioning; For Component Breakdown, See Fig. K.25.E.48[11]

1шт.

Updates Machine To Model Year '08 Chain Tensioning System

1шт.
