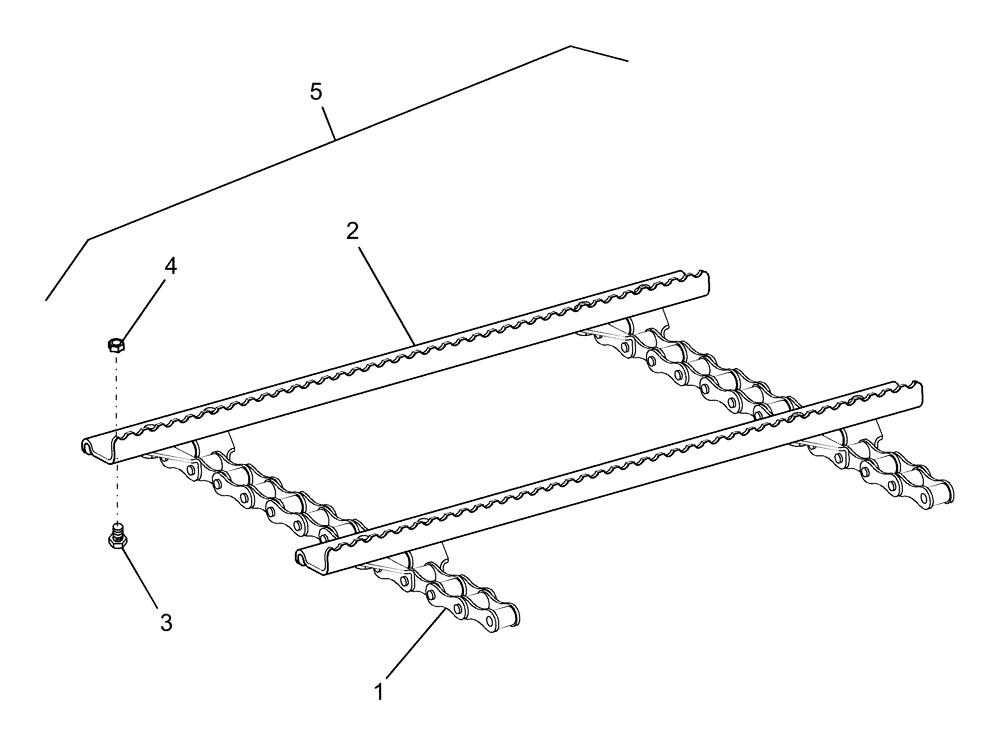

Запчасти Case IH AFX8010 (K.25.E.48[06]) - CHAIN ASSY AND SLAT FEEDERS K - Crop Processing

1

87372975

CHAIN (AG),A557, 13 Links x 41.4mm = 538.2mm

Chain Assy

2шт.

2

87395271

SLAT

Feeder

2шт.

3

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

8шт.

4

86512554

NUT,M10 x 1.5, Cl 10

8шт.

5

87397927

ELEVATOR CHAIN

Assy. Includes: Refs. 1-4

1шт.
