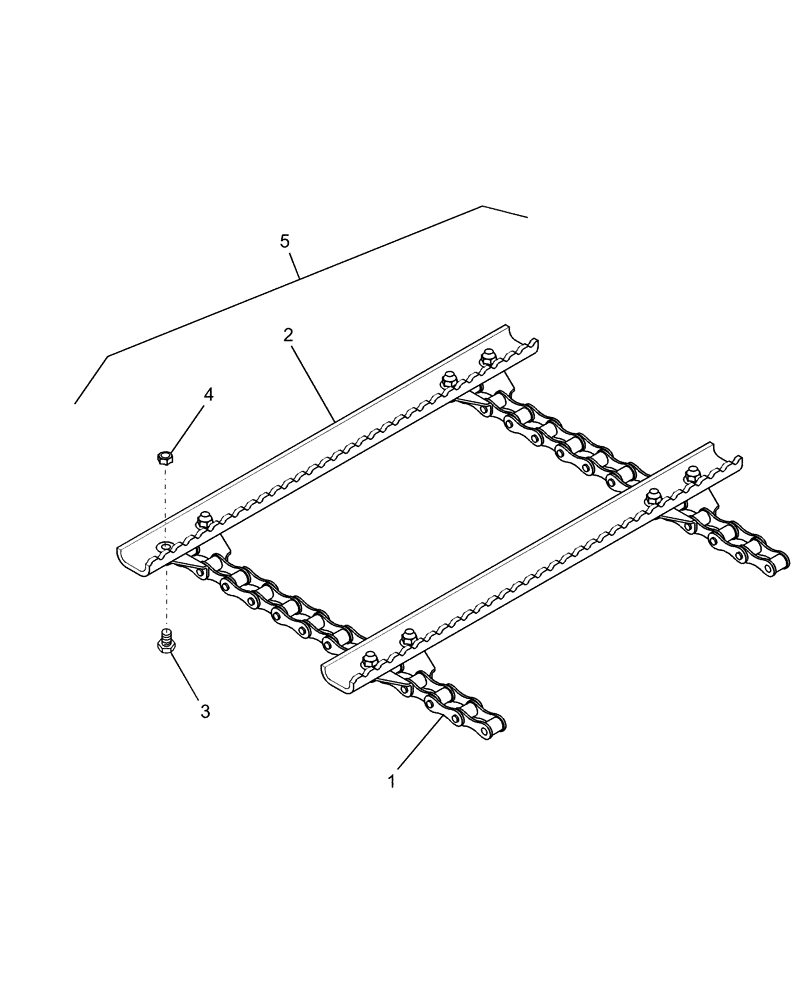

Запчасти Case IH AFX8010 (K.25.E.48[05]) - CHAIN ASSY AND SLAT FEEDERS K - Crop Processing

1

87372975

CHAIN (AG),A557, 13 Links x 41.4mm = 538.2mm

Chain Assy

2шт.

2

87282650

SLAT,Chain, 630mm L

Feeder

2шт.

3

86981484

BOLT,Hex, M10 x 25mm, Cl 10.9, Full Thd

8шт.

4

86981467

FLANGE NUT,M10 x 1.5, Flg, Cl 10

8шт.

5

87372978

CHAIN (AG)

Assy. Includes: Refs. 1-4

1шт.
