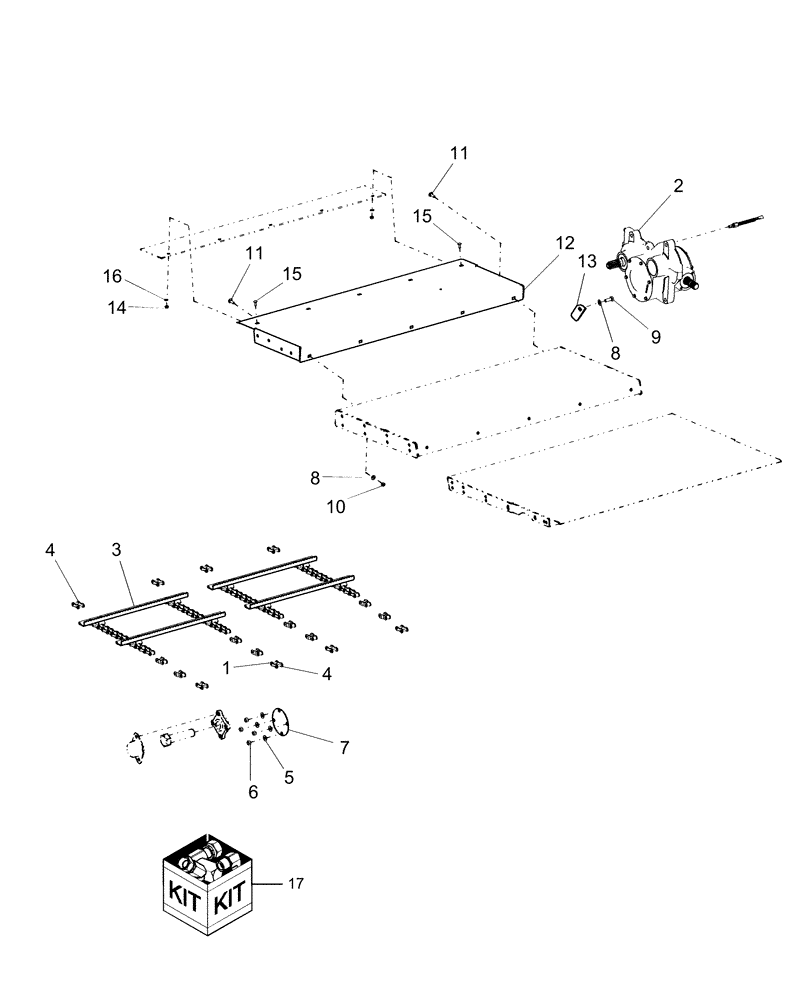

Запчасти Case IH AFX8010 (K.25.E.48[04]) - NON STONE TRAP KIT K - Crop Processing

1

87283350

LINK,41.4mm Pitch

8шт.

2

87283912

GEARBOX

w/o Stone Trap

1шт.

3

87372978

CHAIN (AG)

Chain Assy. Part of Kit P/N 87372974

2шт.

3

87397927

ELEVATOR CHAIN

Assy. Part of Kit P/N 87397926

2шт.

4

87283349

LINK,41.4mm Pitch

8шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

6

9706685

NUT,M12 x 1.75, Cl 8

4шт.

7

86995710

COVER

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

9

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

10

100016

NUT,M10 x 1.5, Cl 8

5шт.

11

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

5шт.

12

87283282

FLOOR

Rear

1шт.

12

87533206

FLOOR

Rear

1шт.

13

87281862

PLATE

1шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

5шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

17

87553554

KIT

Non Stone Trap, Includes: Refs. 1-16

1шт.

17

87372974

KIT

Non Stone Trap, Includes: Refs. 1-16

1шт.

17

87397926

KIT

Non Stone Trap, Includes: Refs. 1-16

1шт.

18

1329837C2

PIN,2.63mm OD

S Type For Ref. 1 & 4

1шт.
