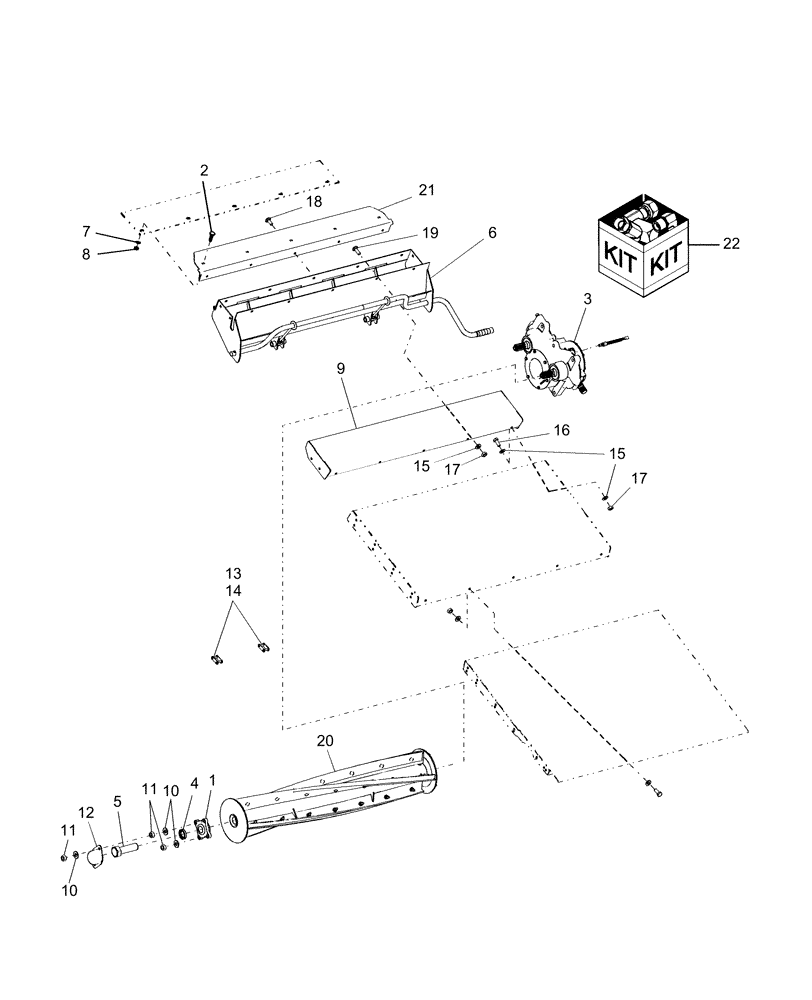

Запчасти Case IH AFX8010 (K.25.E.48[03]) - STONE TRAP KIT K - Crop Processing

1

86995212

BEARING ASSY

1шт.

2

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

5шт.

3

87283914

GEARBOX

w/ Stone Trap

1шт.

87536821R

REMAN-GEARBOX

AFX8010, PIN HAJ105105 Thru HAJ199999, Reman For New P/N's 87283914 & 87536821,

1шт.

87536821C

CORE-GEARBOX

Return Number

1шт.

3

84273350R

REMAN-GEARBOX

AFX8010, PIN HAJ105105 Thru HAJ199999, Reman For New P/N's 87283914 & 87536821,

1шт.

3

84273350C

CORE-GEARBOX

Return Number

1шт.

4

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

1шт.

5

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

1шт.

6

86995139

SUMP

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

9

87533212

FLOOR

1шт.

9

86995578

FLOOR

1шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

11

9706685

NUT,M12 x 1.75, Cl 8

6шт.

12

86996082

COVER

1шт.

13

87283350

LINK,41.4mm Pitch

16шт.

14

87283349

LINK,41.4mm Pitch

4шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

16

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

17

100016

NUT,M10 x 1.5, Cl 8

15шт.

18

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

5шт.

19

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

5шт.

20

87284912

BEATER,Assembly

Assy., Stone Roll, Was 87108961

1шт.

21

87537638

FLOOR

Rear, Replaces 87283284

1шт.

21

87283284

FLOOR

Rear

1шт.

22

87553555

KIT

Stone Trap, Includes Ref. 1-24

1шт.

22

87372971

KIT

Stone Trap, Includes: Refs. 1-21

1шт.

23

1329837C2

PIN,2.63mm OD

S Type For Ref. 13 & 14

1шт.

24

87546900

SHIM

Not Shown

4шт.
