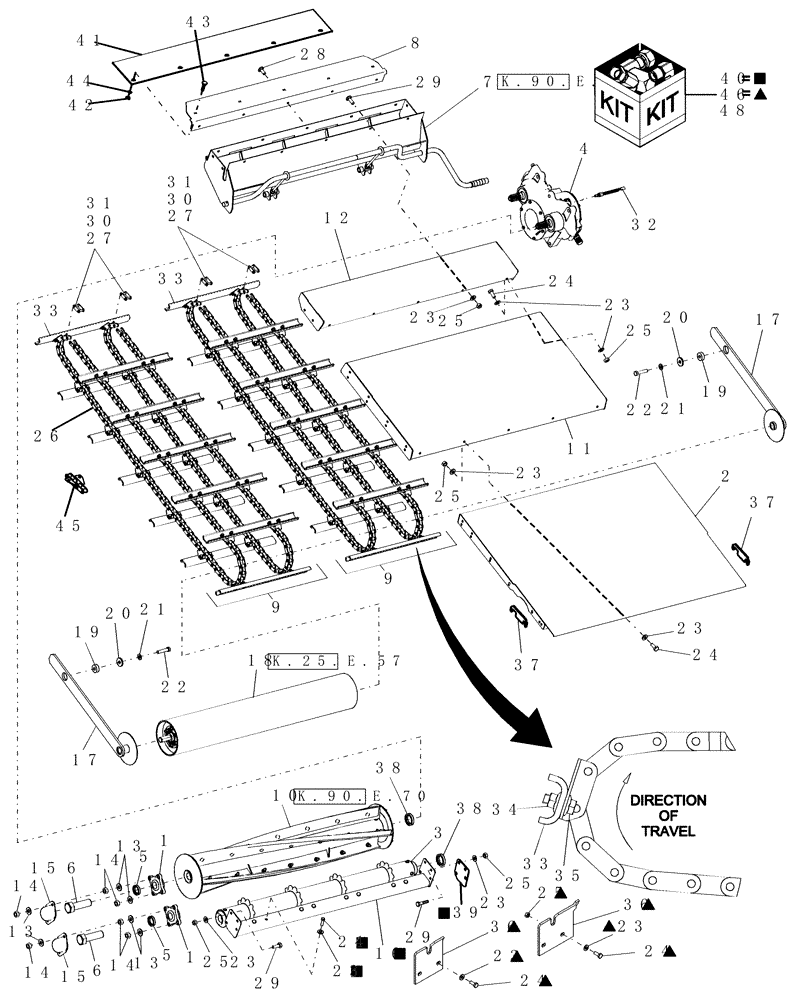

Запчасти Case IH AFX8010 (K.25.E.48[02]) - FEEDER FLOOR AND CHAINS - WITH ROCK TRAP, PRIOR TO PIN HAJ106756 K - Crop Processing

1

86995212

BEARING ASSY

2шт.

2

87109623

FLOOR

Front, Years: -09-FEB-04

1шт.

2

87282541

FLOOR

Front, Start Year: 09-FEB-04

1шт.

3

87282648

ROLLER

Upper

1шт.

4

87283914

GEARBOX

1500NM Clutch Setting, Replaces 86996329 [1300NM Clutch Setting]

1шт.

87536821R

REMAN-GEARBOX

AFX8010, Prior to P.I.N. HAJ106756,

1шт.

87536821C

CORE-GEARBOX

Return Number

1шт.

4

84273350R

REMAN-GEARBOX

AFX8010, Prior to P.I.N. HAJ106756,

1шт.

4

84273350C

CORE-GEARBOX

Return Number

1шт.

5

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

2шт.

6

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

2шт.

7

86995139

SUMP

1шт.

8

86996311

FLOOR

Rear

1шт.

9

87283356

ELEVATOR CHAIN,98 Links x 41.4mm = 4098.6mm

Serrated Slats

2шт.

9

87283357

CHAIN (AG)

Smooth Slats

2шт.

9

87397925

CHAIN (AG)

Reinforced, Serrated Slats, Start Serial: HAJ106756

2шт.

10

See Fig K.90.E.70

1шт.

11

86995577

FLOOR

Center, Years: -09-FEB-04

1шт.

11

87282537

FLOOR

Center, Start Year: 09-FEB-04

1шт.

11

86995665

FLOOR

Center, Optional - Perforated

1шт.

12

86995578

FLOOR

Rear

1шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

14

9706685

NUT,M12 x 1.75, Cl 8

12шт.

15

86996082

COVER

2шт.

16

87385031

SUPPORT

1шт.

17

87282449

ARM

See Also: Ref. 48

2шт.

18

86981181

ROLL

Front Feed

1шт.

19

86995910

BUSHING

, Years: -09-FEB-04

2шт.

19

87282454

BUSHING,17mm ID x 44.45mm OD x 24mm L

, Start Year: 09-FEB-04

2шт.

20

333040

WASHER,16.5mm ID x 49mm OD x 6mm Thk

, Years: -09-FEB-04

2шт.

20

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

Hardened, Start Year: 09-FEB-04

2шт.

21

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

22

120092

BOLT,M16 x 70mm, Cl 8.8

, Years: -09-FEB-04

2шт.

22

87283073

BOLT

Special, Start Year: 09-FEB-04

2шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

34шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

With Strip Off Plates

1шт.

24

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

24

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

With Strip Off Plates

16шт.

25

100016

NUT,M10 x 1.5, Cl 8

1шт.

26

87283355

CHAIN,A557, 98 Links x 41.4mm = 4057.2mm

4шт.

27

87283349

LINK,41.4mm Pitch

4шт.

28

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

5шт.

29

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

29

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

29

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.

30

87283350

LINK,41.4mm Pitch

Offset Link

4шт.

31

87283351

LINK,Chain, 41.4mm Pitch

Roller Link

1шт.

32

87105603

SENSOR

Feeder Speed

1шт.

33

87282650

SLAT,Chain, 630mm L

Serrated, Holes 198 mm [7.8"] from centerline

12шт.

33

87283556

SLAT

Optional, Smooth, Holes 198 mm [7.8"] from centerline

12шт.

34

86981467

FLANGE NUT,M10 x 1.5, Flg, Cl 10

48шт.

35

86981484

BOLT,Hex, M10 x 25mm, Cl 10.9, Full Thd

48шт.

36

87384612

PLATE

Strip-Off, Center

2шт.

36

87384614

PLATE

Strip-Off, LH

1шт.

36

87384616

PLATE

Strip-Off, RH

1шт.

37

87282304

SHIM

, Start Year: 09-FEB-04

1шт.

38

87109491

OIL SEAL

2шт.

39

87385034

SHIM

4шт.

40

87510604

DIA KIT, HARVESTER

Support, Includes Ref. 16, 39 & Hardware

1шт.

41

87283285

SEAL

1шт.

42

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

43

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

5шт.

44

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

45

87283373

LINK,Chain, 3 Links x 41.4mm = 124.2mm

Slat Attaching

1шт.

46

87397429

REPAIR KIT

Strip-Off Plates, Includes: Refs. 23, 25, 29, 36

1шт.

46

87523360

REPAIR KIT

Feeder Strippers and Support, Includes Ref. 16, 23, 25, 29, 36, 39, Years: 01-JAN-06-31-DEC-06

1шт.

47

1329837C2

PIN,2.63mm OD

S - Type For Ref. 27 & 30

1шт.

48

84182198

DIA KIT, HARVESTER

Feeder Chain Tensioning; For Component Breakdown, See Fig. K.25.E.48[11]

1шт.

Updates Machine To Model Year '08 Chain Tensioning System

1шт.
