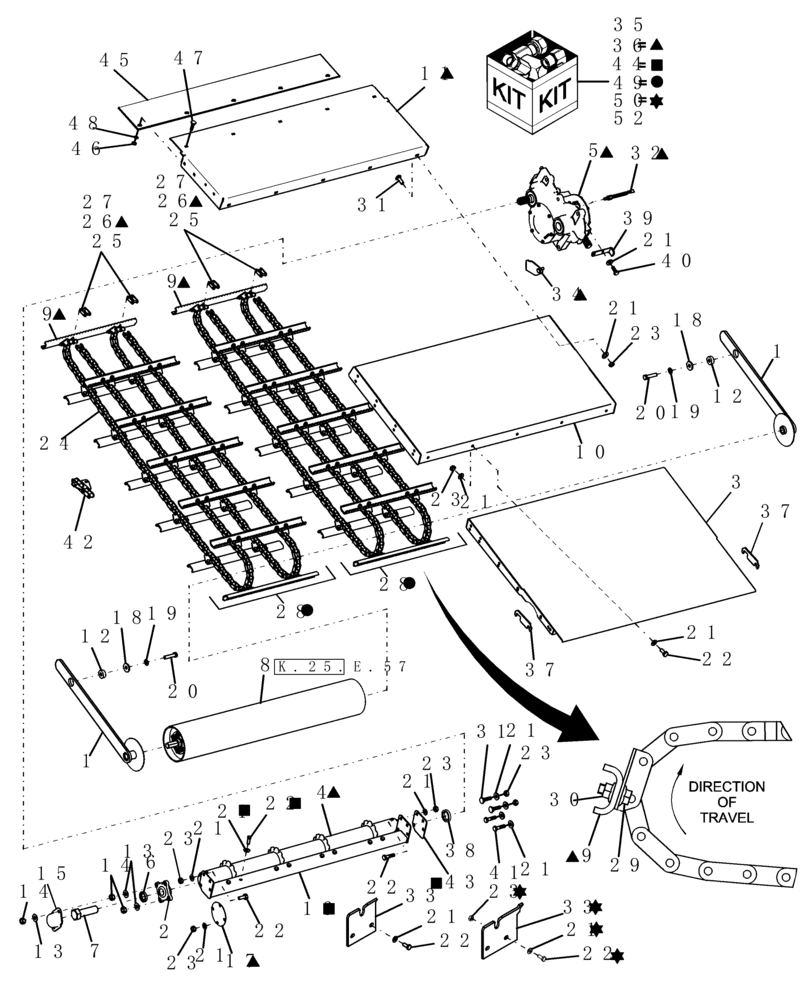

Запчасти Case IH AFX8010 (K.25.E.48[01]) - FEEDER FLOOR AND CHAINS - NON ROCK TRAP, PRIOR TO PIN HAJ106756 K - Crop Processing

1

87282449

ARM

See Also: Ref. 52

2шт.

2

86995212

BEARING ASSY

1шт.

3

87109623

FLOOR

Front, Years: -09-FEB-04

1шт.

3

87282541

FLOOR

Front, Start Year: 09-FEB-04

1шт.

4

See Fig K.25.E.48 (07)

1шт.

5

87283912

GEARBOX

1500NM Clutch Setting, Replaces 86996330 [1300NM Clutch Setting]

1шт.

6

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

1шт.

7

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

1шт.

8

86981181

ROLL

Front Feed

1шт.

9

87282650

SLAT,Chain, 630mm L

Serrated, Holes 198 mm [7.8"] from centerline

2шт.

9

87283556

SLAT

Option, Smooth, Holes 198 mm [7.8"] from centerline

2шт.

10

86995577

FLOOR

Center, Years: -09-FEB-04

1шт.

10

87282537

FLOOR

Center, Start Year: 09-FEB-04

1шт.

10

86995665

FLOOR

Center, Optional, Perforated

1шт.

11

87108934

FLOOR

Rear, Years: -09-FEB-04

1шт.

11

87282534

FLOOR

Rear, Start Year: 09-FEB-04

1шт.

11

87283282

FLOOR

1шт.

12

86995910

BUSHING

, Years: -09-FEB-04

2шт.

12

87282454

BUSHING,17mm ID x 44.45mm OD x 24mm L

, Start Year: 09-FEB-04

2шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

14

9706685

NUT,M12 x 1.75, Cl 8

10шт.

15

86996082

COVER

1шт.

16

87385031

SUPPORT

1шт.

17

86995710

COVER

1шт.

18

333040

WASHER,16.5mm ID x 49mm OD x 6mm Thk

, Years: -09-FEB-04

2шт.

18

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

Hardened, Start Year: 09-FEB-04

2шт.

19

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

20

120092

BOLT,M16 x 70mm, Cl 8.8

, Years: -09-FEB-04

2шт.

20

87283073

BOLT

CL 10.9, M16 x 90, Special, Start Year: 09-FEB-04

2шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

19шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

With Strip Off Plates

1шт.

22

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

5шт.

22

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

With Strip Off Plates

13шт.

23

100016

NUT,M10 x 1.5, Cl 8

1шт.

24

87283354

CHAIN,A557, 111 Links x 41.4mm = 4594.29mm

A557

4шт.

25

87283349

LINK,41.4mm Pitch

A557

1шт.

26

87283350

LINK,41.4mm Pitch

A557

1шт.

27

87283351

LINK,Chain, 41.4mm Pitch

A557

1шт.

28

87283358

CHAIN,Feeder, 111 Links x 41.4mm = 4636.8mm

Serrated Slats, A557

2шт.

28

87283359

ELEVATOR CHAIN

Smooth Slats, A557

2шт.

29

86981484

BOLT,Hex, M10 x 25mm, Cl 10.9, Full Thd

56шт.

30

86981467

FLANGE NUT,M10 x 1.5, Flg, Cl 10

56шт.

31

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

31

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

31

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.

32

87105603

SENSOR

Feeder Speed

1шт.

33

87384612

PLATE

Strip-Off, Center

2шт.

33

87384614

PLATE

Strip-Off, LH

1шт.

33

87384616

PLATE

Strip-Off, RH

1шт.

34

87281862

PLATE

1шт.

35

87105405

SERVICE KIT

Hardware

1шт.

36

87105340

KIT

Feeder, Std. - Includes: Ref. 4, 5, 9, 11, 17, 26, 32, 34, 35

1шт.

36

87372974

KIT

Feeder, Replaces: P/N 87105340

1шт.

37

87282304

SHIM

, Start Year: 09-FEB-04

1шт.

38

87109491

OIL SEAL

1шт.

39

87044119

BRACKET

1шт.

40

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

41

412160

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

42

87283373

LINK,Chain, 3 Links x 41.4mm = 124.2mm

Repair

1шт.

43

87385034

SHIM

4шт.

44

87510604

DIA KIT, HARVESTER

Support, Includes Ref. 16, 43, & Hardware

1шт.

45

87283285

SEAL

1шт.

46

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

47

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

5шт.

48

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

49

84084683

ELEVATOR CHAIN

Kit, Smooth Slat, 2-Sets

1шт.

50

87397429

REPAIR KIT

Kit, Strip Off Plates, Includes: Refs. 21, 23, 31 and 33

1шт.

50

87523360

REPAIR KIT

Feeder Strippers and Support, Includes Ref. 16, 21, 23, 31, 33, 43, Years: 01-JAN-06-31-DEC-06

1шт.

51

1329837C2

PIN,2.63mm OD

S - Type, For Ref. 25 & 26

1шт.

52

84182198

DIA KIT, HARVESTER

Kit, Feeder Chain Tensioning; For Component Breakdown, See Fig. K.25.E.48[11]

1шт.

Updates Machine To Model Year '08 Chain Tensioning System

1шт.
