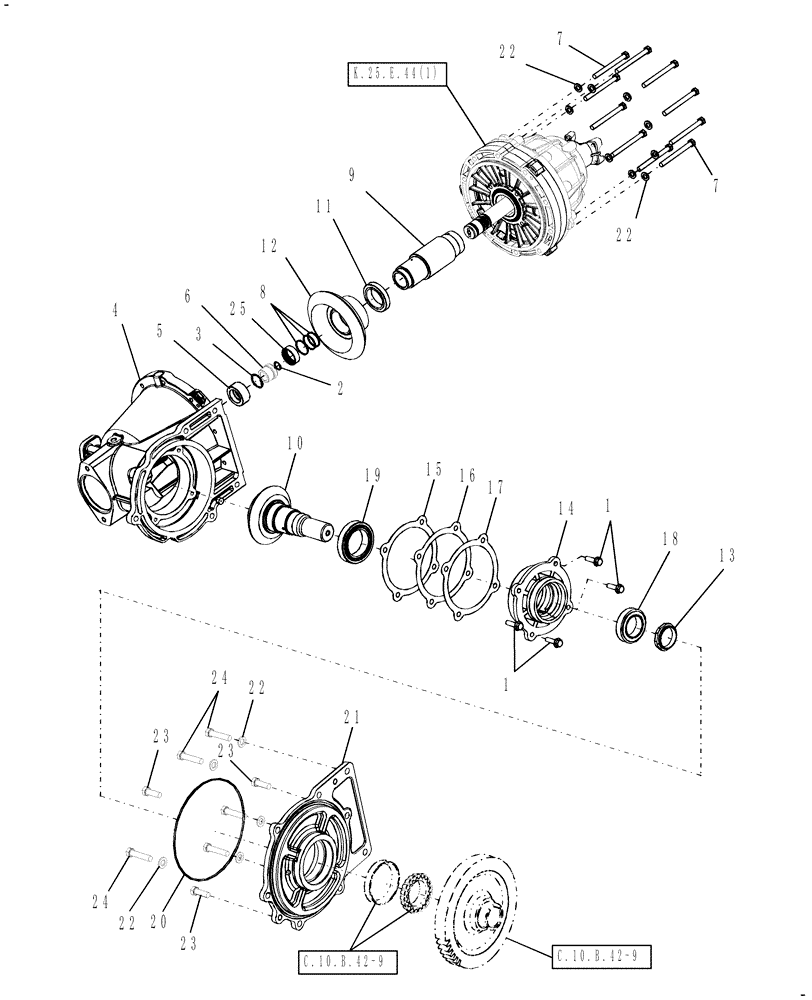

Запчасти Case IH AFX8010 (K.25.E.44[2]) - GEARBOX, HEADER/FEEDER, VARIABLE SPEED, INPUT HALF K - Crop Processing

86998844

GEARBOX

Includes: Ref.s 1 Thru 25, Plus Output Half (Breakdown on Fig. K.25.E.44[1])

1шт.

86998844R

REMAN-TRANSMISSION

Reman for New PN 86998844

1шт.

86998844C

CORE-TRANSMISSION

Return number

1шт.

1

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

4шт.

2

800-2122

SNAP RING,M22, Internal

1шт.

3

800-2137

SNAP RING,M37, Internal

1шт.

4

87281499

HOUSING

Rear

1шт.

5

87281435

SLEEVE

1шт.

6

87281436

ADAPTER

1шт.

7

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

10шт.

8

87587474

SEALING RING

SEALRING

5шт.

9

87281441

SHAFT

Bevel Gear

1шт.

10

87281452

BEVEL GEAR

1шт.

11

87281502

TAPERED BEARING,55mm ID x 80mm OD x 17mm W

1шт.

12

87281442

BEVEL GEAR

Input

1шт.

13

87281509

NUT

M50

1шт.

14

87281453

SLEEVE

Input

1шт.

15

87281510

SHIM

0.4 mm

1шт.

16

87281511

SHIM

0.6 mm

1шт.

17

87281512

SHIM

0.6 mm

1шт.

18

86998145

BEARING ASSY,65mm ID x 100mm OD x 23mm W

1шт.

19

427662A1

TAPERED BEARING

1шт.

20

87281428

RING

1шт.

21

86997812

FLANGE

1шт.

22

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

15шт.

23

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

3шт.

24

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

5шт.

25

86996784

NEEDLE BEARING,39.99mm ID x 46.98mm OD x 15.85mm W

1шт.
