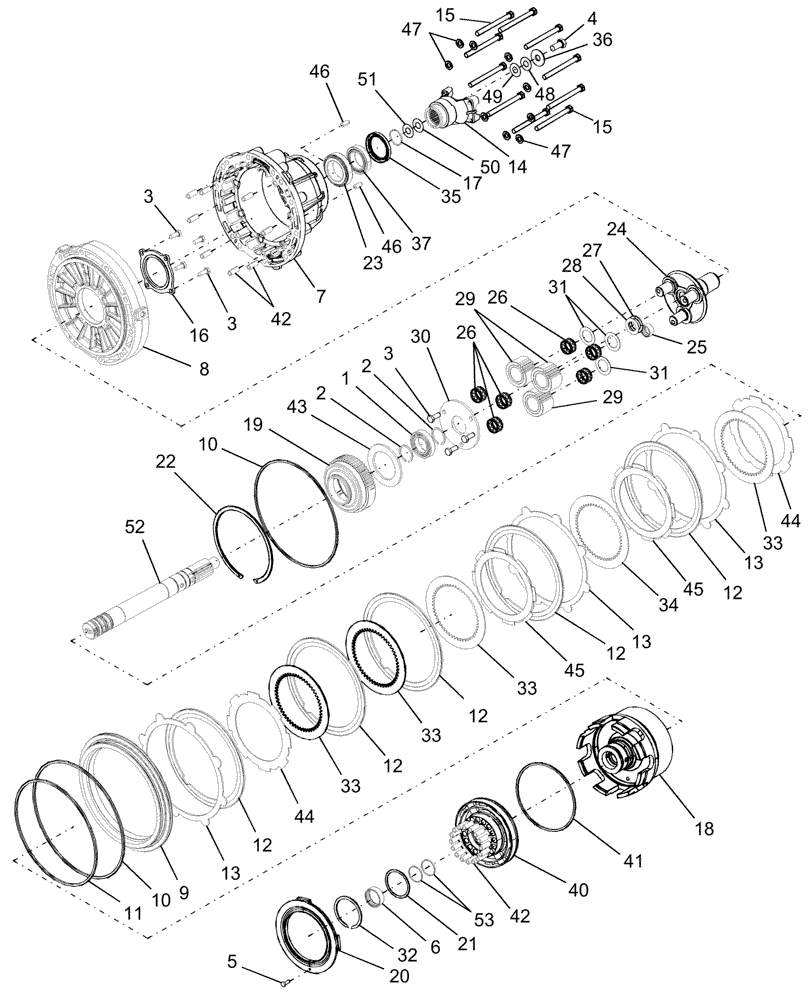

Запчасти Case IH AFX8010 (K.25.E.44[1]) - GEARBOX, HEADER/FEEDER, VARIABLE SPEED, OUTPUT HALF K - Crop Processing

1

A75193

BALL BEARING,1.5748" ID x 2.6882" OD x 0.5906" Thk

1шт.

2

87281477

SNAP RING

Retaining

2шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

7шт.

4

514-1021

BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9

1шт.

5

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

1шт.

6

86996784

NEEDLE BEARING,39.99mm ID x 46.98mm OD x 15.85mm W

2шт.

7

86999534

CASE

Front, Output

1шт.

8

86999536

PLATE

Center

1шт.

9

87281427

PISTON

Reverse

1шт.

10

87281428

RING

1шт.

11

87281429

RING

1шт.

12

87281430

CLUTCH DRIVING PLATE

Friction

3шт.

13

87281431

CLUTCH PLATE,216mm ID x 241mm OD x 2.4mm Thk

Steel

4шт.

14

87281432

YOKE

1шт.

15

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

10шт.

16

87281434

RETAINER

1шт.

17

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.

18

87281443

RING GEAR,207mm OD, W/ Ring Gear

Ring & Drum

1шт.

19

87281445

HUB

Drive

1шт.

20

87281446

PLATE

End

1шт.

21

87281447

RING,64.7mm ID x 71.3mm OD x 2.1mm Thk

1шт.

22

87281501

SNAP RING

1шт.

23

225805A1

BEARING ASSY,60mm ID x 95mm OD x 23mm W

1шт.

24

87281448

SHAFT

Output

1шт.

25

87281503

NEEDLE BEARING,25 mm ID x 32 mm OD x 16 mm

1шт.

26

87281504

NEEDLE BEARING,32mm ID x 38mm OD x 20mm W

Roller

6шт.

27

87281505

THRUST BEARING,30mm ID x 47mm OD x 2.8mm Thk

Thrust

1шт.

28

87281507

THRUST WASHER

1шт.

29

87281450

PLANETARY GEAR

25T

3шт.

30

87281451

PLATE WASHER

1шт.

31

87281508

THRUST WASHER

3шт.

32

428163A1

RING, SNAP

RING SNAP

1шт.

33

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK 2.4 mm

1шт.

34

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK 2.1 mm

1шт.

35

S8820S00F

OIL SEAL

1шт.

36

S8860S00F

THRUST WASHER

1шт.

37

427662A1

TAPERED BEARING

1шт.

38

86998145

BEARING ASSY,65mm ID x 100mm OD x 23mm W

2шт.

40

352833A1

PISTON

Clutch, 9"

1шт.

41

87431391

RING

1шт.

42

352828A1

SPRING

Return

24шт.

43

352827A1

PLATE

Spring Return

1шт.

44

375528A1

CLUTCH DISC

CLUTCH DISK 7"

2шт.

45

375529A1

CLUTCH DISC

CLUTCH DISK 7"

4шт.

46

837-12030

DOWEL,M12 x 30mm OAL

2шт.

47

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

48

S9950S00F

SHIM,0.1mm Thk

(0.10 mm)

1шт.

49

S9960S00F

SHIM,0.31mm Thk

(0.30 mm)

1шт.

50

S9970S00F

SHIM,0.51mm Thk

(0.51 mm)

1шт.

51

S9980S00F

SHIM,0.71mm Thk

(0.7 mm)

1шт.

52

87281437

SHAFT

1шт.

53

87587474

SEALING RING

SEALRING

1шт.
