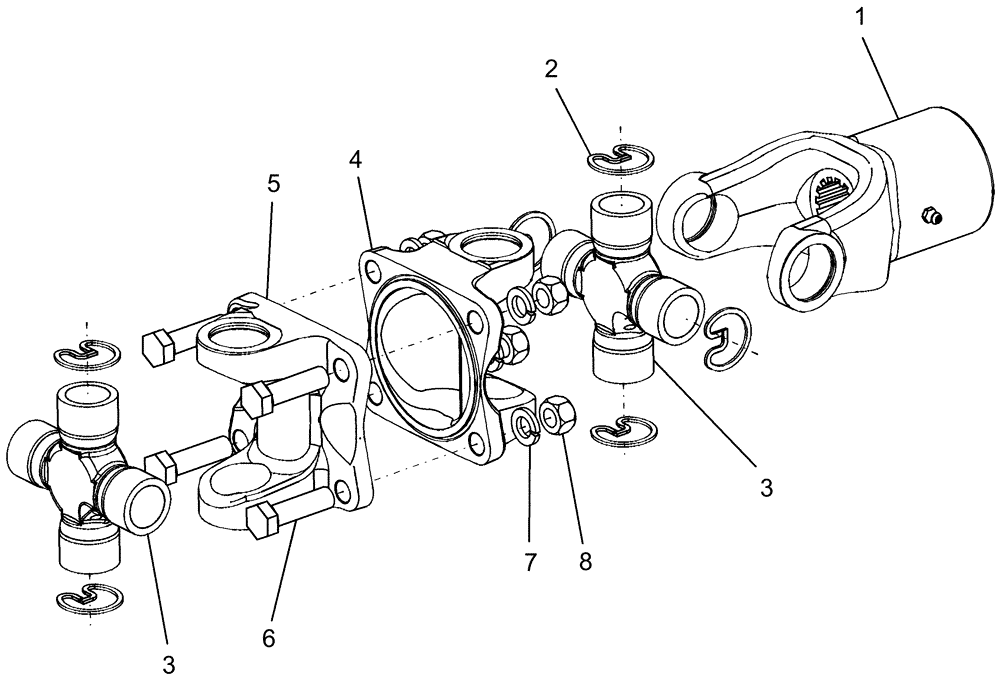

Запчасти Case IH AFX8010 (K.25.E.41.10[01]) - PIVOT SHAFT, FEEDER / HEADER K - Crop Processing

1

87000203

DRIVE SHAFT

Pivot, Feeder

1шт.

1

NSS

NOT SOLD SEPARAT

Order Complete

1шт.

2

87280463

SNAP RING

6шт.

3

87400942

UNIVERSAL JOINT

Cross Bearing

2шт.

4

NSS

NOT SOLD SEPARAT

Yoke, Flange, Order Complete

1шт.

5

NSS

NOT SOLD SEPARAT

Yoke, Flange, Order Complete

1шт.

6

428-828

BOLT,Hex, 1/2"-20 x 1-3/4", Gr 8

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

8

86539262

NUT,1/2"-20, Gr 8

4шт.

9

NSS

NOT SOLD SEPARAT

Yoke

1шт.
