Запчасти Case IH AFX8010 (K.25.E.40[4]) - CLUTCH, FRICTION DISC K - Crop Processing

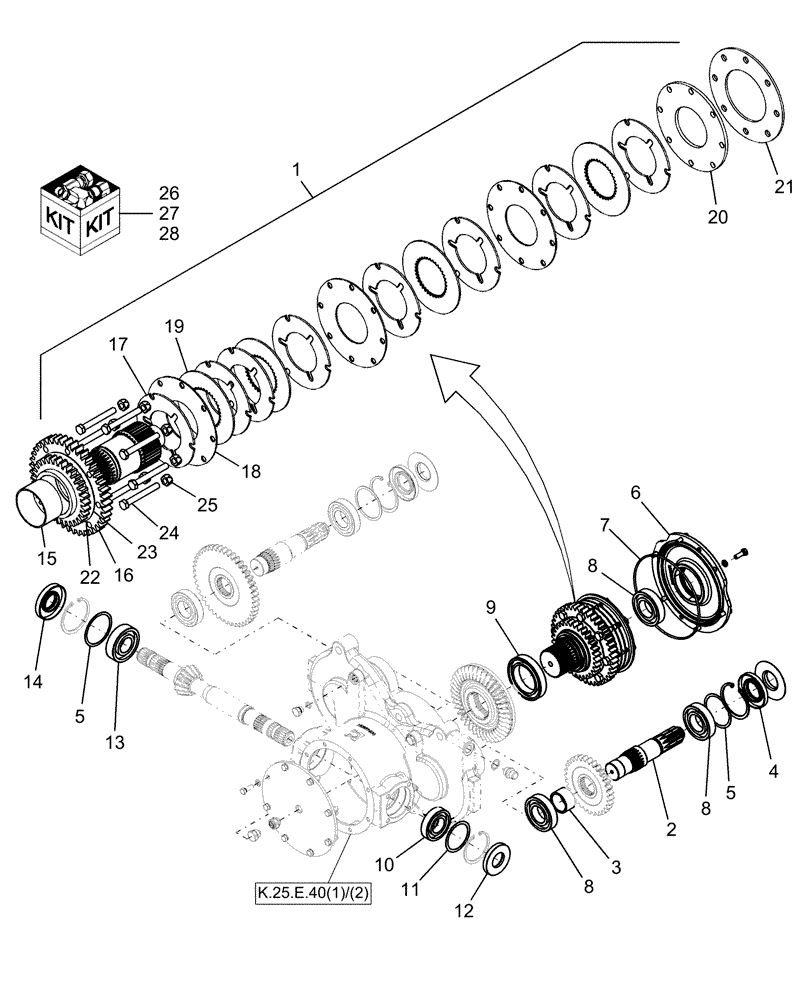

Схема запчастей Case IH AFX8010 - (K.25.E.40[4]) - CLUTCH, FRICTION DISC K - Crop Processing
8
27
6
5
25
2
24
14
13
4
20
8
18
16
15
23
1
28
17
26
21
10
11
7
8
5
k.25.e.40(1)/(2)
22
3
12
19
9

Артикул

Название

Примечание

Количество

1

87536810

CLUTCH ASSEMBLY

1шт.

84224780C

CORE-CLUTCH ASSEMBLY

CORE-CLUTCH ASSY Return Number, CLUTCH ASSY., FRICTION SLIP - for N.A. Only

1шт.

87536810C

CORE-CLUTCH ASSEMBLY

CORE-CLUTCH ASSY Return Number, CLUTCH ASSY. - for N.A. Only

1шт.

2

87536812

SHAFT

1шт.

3

87536813

SPACER

1шт.

4

87612665

OIL SEAL,38.3mm ID x 80mm OD x 10mm Thk

1шт.

5

87282025

SHIM KIT

2шт.

6

87536811

COVER

1шт.

7

87302761

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

1шт.

8

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

3шт.

9

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

1шт.

10

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

1шт.

11

87282023

SHIM KIT

1шт.

12

87612666

OIL SEAL,35mm ID x 72mm OD x 10mm Thk

1шт.

13

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

14

87612667

OIL SEAL,33.3mm ID x 80mm OD x 12mm Thk

1шт.

15

87536803

SHAFT

1шт.

16

87536802

GEAR SET

1шт.

17

87536805

PLATE

NLA, Order Complete Clutch Assy Per Serial

8шт.

18

87536807

PLATE

External Separator

3шт.

19

87536806

PLATE

Internal Separator

4шт.

20

87536808

PLATE

1шт.

21

87536809

BELLEVILLE SPRING

1шт.

22

300636

SNAP RING,M70, External

1шт.

23

87536804

THRUST WASHER,70.3mm ID x 82mm OD x 4mm Thk

1шт.

24

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

8шт.

25

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

26

87619913

SERVICE KIT

Friction Slip Clutch; Includes: Ref.s 1, 6, 7, & 8, Plus Instructions

1шт.

27

87536816

SHAFT ASSY.

Rock Trap; Includes: Ref.s 2, 3, 4, & 5

1шт.

28

87621731

SERVICE KIT

Rebuild; Includes: Ref.s 5 (1), 8 (2), 9 (1), 10 (1), 11 (1), 12 (1), 13 (1), & 14 (1)

1шт.

29

87624260

SERVICE KIT

Friction Slip Clutch, Complete; Includes: Ref. 26 & 28

1шт.

W/O Rock Trap

1шт.

30

87624261

SERVICE KIT

Friction Slip Clutch, Complete; Includes: Ref. 26, 27, & 28

1шт.

W/Rock Trap

1шт.

31

87624259

SERVICE KIT

Friction Slip Clutch; Includes: Ref. 26 & 27

1шт.

Can Be Used To Convert Radial Pin Clutch To Friction Disc-Type Clutch

1шт.

32

87536803

SHAFT

1шт.

Выбрано товаров: 37
