Запчасти Case IH AFX8010 (K.25.E.40[2]) - GEARBOX - FEEDER CONVEYOR DRIVE WITHOUT ROCK TRAP K - Crop Processing

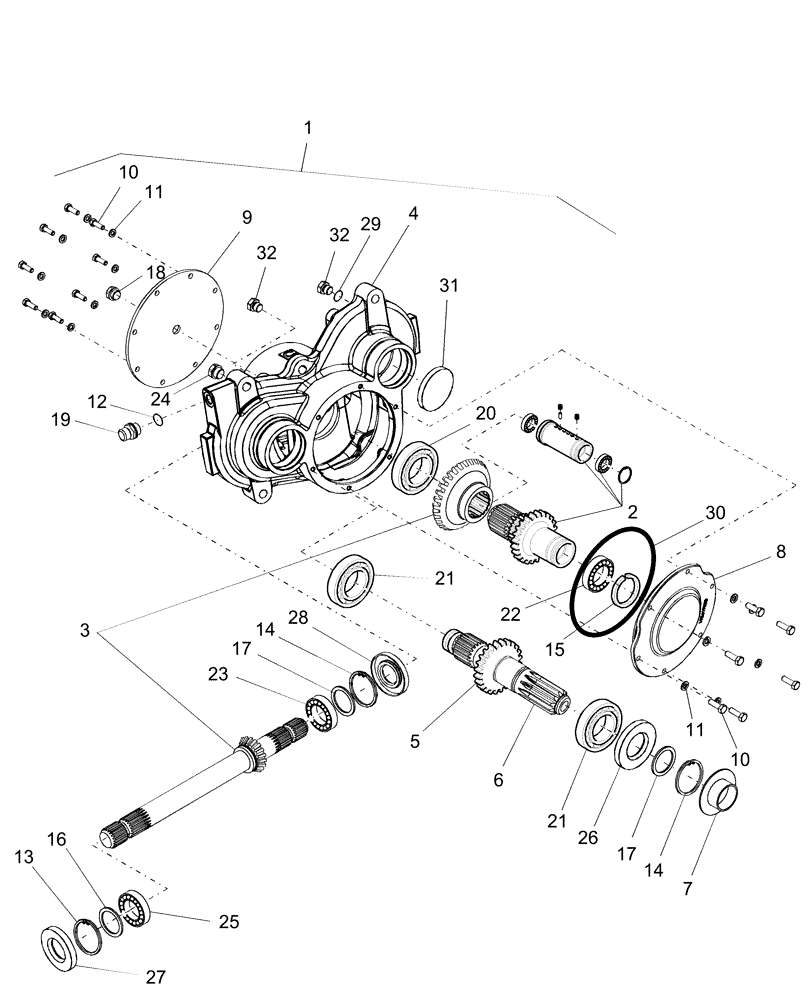

Схема запчастей Case IH AFX8010 - (K.25.E.40[2]) - GEARBOX - FEEDER CONVEYOR DRIVE WITHOUT ROCK TRAP K - Crop Processing
14
17
23
10
1
15
6
21
3
19
20
21
2
12
22
9
5
11
17
32
16
24
7
11
10
28
27
13
8
14
4
29
18
32
31
25
30
26

Артикул

Название

Примечание

Количество

1

86996330

GEARBOX

, Years: -04-OCT-04

1шт.

1

87283912

GEARBOX

, Start Year: 04-OCT-04

1шт.

2

87282021

CLUTCH ASSEMBLY

Torque Limiter, See Fig K.25.E.40 [5], Years: -04-OCT-04

1шт.

2

87448715

CLUTCH ASSEMBLY

Torque Limiter, See Fig K.25.E.40 [5], Start Year: 04-OCT-04

1шт.

2

87619913

SERVICE KIT

Friction Slip Clutch, For Component Breakdown See Fig K.25.E.40[4]

1шт.

Not Shown

1шт.

Service Only; Provides Improved Feeding

1шт.

3

87282018

GEAR SET

1шт.

4

87281999

HOUSING

1шт.

5

87282002

GEAR

1шт.

6

87282003

SHAFT

Conveyor

1шт.

7

87282006

GUARD

1шт.

8

87282007

COVER

1шт.

9

87282008

COVER

1шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

14шт.

11

892-11008

LOCK WASHER,8mm ID

14шт.

12

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

13

800-2172

SNAP RING

1шт.

14

800-2180

SNAP RING,M80, Int

2шт.

15

87282009

SNAP RING

1шт.

16

87282023

SHIM KIT

Kit - .72

1шт.

17

87282025

SHIM KIT

Kit - .80

2шт.

18

87282045

SIGHTGLASS

1шт.

19

87282044

PLUG,M18 x 1.5, 28mm L

1шт.

20

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

1шт.

21

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

2шт.

22

87282012

BALL BEARING,94.99mm ID x 119.99mm OD x 12.9mm W

1шт.

23

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

24

87282043

MAGNETIC PLUG

1шт.

25

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

1шт.

26

87282014

OIL SEAL,40mm ID x 80mm OD x 10mm Thk

1шт.

27

87282015

OIL SEAL,35mm ID x 72mm OD x 10mm Thk

1шт.

28

87282016

OIL SEAL

1шт.

29

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

30

238-5263

O-RING,0.139" Thk x 7.234" ID, -263, Cl 5, 75 Duro

1шт.

31

87282017

PLUG,80mm OD x 10mm Thk

1шт.

32

220064A1

PLUG,M14 x 1.5, ORB

1шт.

Выбрано товаров: 37
