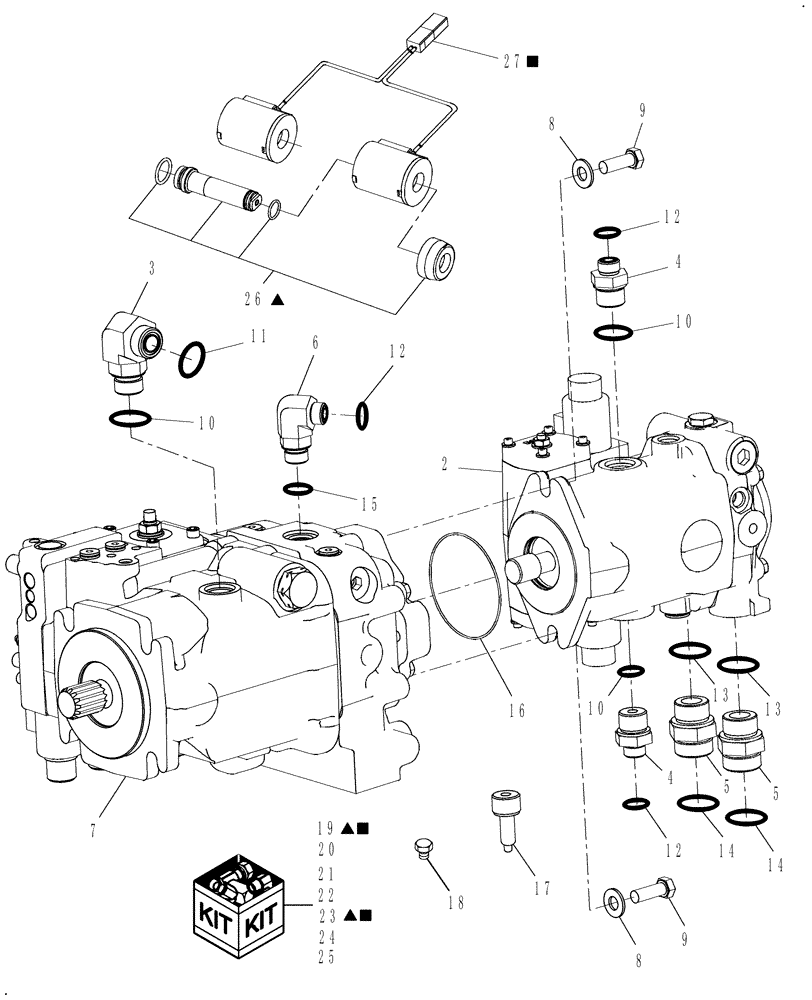

Запчасти Case IH AFX8010 (A.12.A.20[1]) - PUMP, TANDEM HYDRO - ROTOR & HEADER FEEDER A - Distribution Systems

1

86638315

HYDRAULIC PUMP

Tandem Hydro (Rotor and Header Feeder )

1шт.

1

86638314R

REMAN-HYD PUMP

Tandem Hydro (Rotor and Header Feeder )

1шт.

1

86638314C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86638314

HYDRAULIC PUMP,40.6 CC

Variable Feeder - Includes Ref. 22, 23, 24, 25

1шт.

2

86638314R

REMAN-HYD PUMP

Variable Feeder - Includes Ref. 22, 23, 24, 25

1шт.

2

86638314C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

1шт.

4

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

2шт.

5

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

2шт.

6

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

1шт.

7

86999117

HYDRAULIC PUMP

Rotor - Includes Ref. 17, 18, 19, 20, 21

1шт.

7

87010876

REMAN-HYD PUMP

Rotor

1шт.

7

87010875

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

2шт.

9

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

Bolt, HH, CL 8.8, M12 x 35

2шт.

10

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

13

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

14

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

15

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

16

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

17

86995060

VALVE

Port Relief

1шт.

18

87450568

PLUG

Orfice, Charge Relief

1шт.

19

87450563

KIT

EP Controller; Includes: Ref.s 26, 27, Plus Gasket 87450566 (1) & Screw 61-33132 (6)

1шт.

20

87450570

SEAL KIT

Shaft

1шт.

21

87450569

SEAL KIT

Pump

1шт.

22

87453381

VALVE, PRESSURE RELI

EF Valve, Relief

1шт.

23

87453375

SERVICE KIT

Servo Controller; Includes: Ref.s 26, 27, Plus Gasket 87453380 (1) & Screw 61-33132 (6)

1шт.

24

87453382

SEAL KIT

Kit, Seal Relief

1шт.

25

87453383

SEAL KIT

Kit, Shaft Seal

1шт.

26

87450565

SOLENOID

Tube

1шт.

27

87450564

SOLENOID,Coil Pair

Solenoid Coil

1шт.
