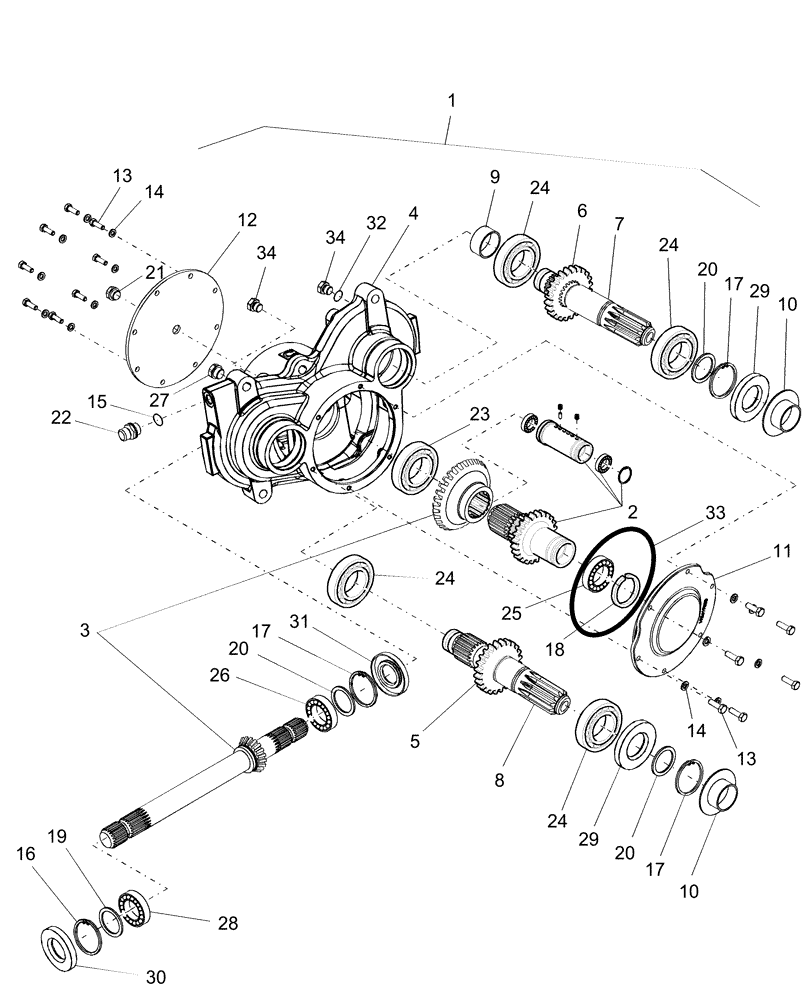

Запчасти Case IH AFX8010 (K.25.E.40[1]) - GEARBOX - FEEDER CONVEYOR DRIVE, WITH ROCK TRAP DRIVE K - Crop Processing

1

86996329

GEARBOX

, Years: -04-OCT-04

1шт.

1

87283914

GEARBOX

, Start Year: 04-OCT-04

1шт.

87536821R

REMAN-GEARBOX

AFX8010, PIN HAJ105105 THRU HAJ199999, Reman For New P/N's 87283914 & 87536821,

1шт.

87536821C

CORE-GEARBOX

Return Number

1шт.

1

84273350R

REMAN-GEARBOX

AFX8010, PIN HAJ105105 THRU HAJ199999, Reman For New P/N's 87283914 & 87536821,

1шт.

1

84273350C

CORE-GEARBOX

Return Number

1шт.

2

87282021

CLUTCH ASSEMBLY

Torque Limiter, See Fig K.25.E.40 [5], Years: -04-OCT-04

1шт.

2

87448715

CLUTCH ASSEMBLY

Torque Limiter, See Fig K.25.E.40 [5], Start Year: 04-OCT-04

1шт.

2

87619913

SERVICE KIT

Friction Slip Clutch, For Component Breakdown See Fig K.25.E.40[4]

1шт.

Not Shown

1шт.

Service Only; Provides Improved Feeding

1шт.

3

87282018

GEAR SET

1шт.

4

87281999

HOUSING

1шт.

5

87282001

GEAR

31T

1шт.

6

87282002

GEAR

44T

1шт.

7

87282003

SHAFT

Conveyor

1шт.

8

87282004

SHAFT

Rock Trap

1шт.

8

87536812

SHAFT

Rock Trap; Used W/Friction Slip Clutch; See Also: Fig. K.25.E.40[4]

1шт.

Service Only

1шт.

9

87282005

SPACER

1шт.

10

87282006

GUARD

2шт.

11

87282007

COVER

1шт.

12

87282008

COVER

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

14шт.

14

892-11008

LOCK WASHER,8mm ID

14шт.

15

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

16

800-2172

SNAP RING

1шт.

17

800-2180

SNAP RING,M80, Int

3шт.

18

87282009

SNAP RING

1шт.

19

87282023

SHIM KIT

Kit

1шт.

20

87282025

SHIM KIT

Kit

3шт.

21

87282045

SIGHTGLASS

Level

1шт.

22

87282044

PLUG,M18 x 1.5, 28mm L

Breather

1шт.

23

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

1шт.

24

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

4шт.

25

87282012

BALL BEARING,94.99mm ID x 119.99mm OD x 12.9mm W

1шт.

26

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

27

87282043

MAGNETIC PLUG

1шт.

28

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

1шт.

29

87282014

OIL SEAL,40mm ID x 80mm OD x 10mm Thk

2шт.

30

87282015

OIL SEAL,35mm ID x 72mm OD x 10mm Thk

1шт.

31

87282016

OIL SEAL

1шт.

32

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

33

238-5263

O-RING,0.139" Thk x 7.234" ID, -263, Cl 5, 75 Duro

1шт.

34

220064A1

PLUG,M14 x 1.5, ORB

2шт.
