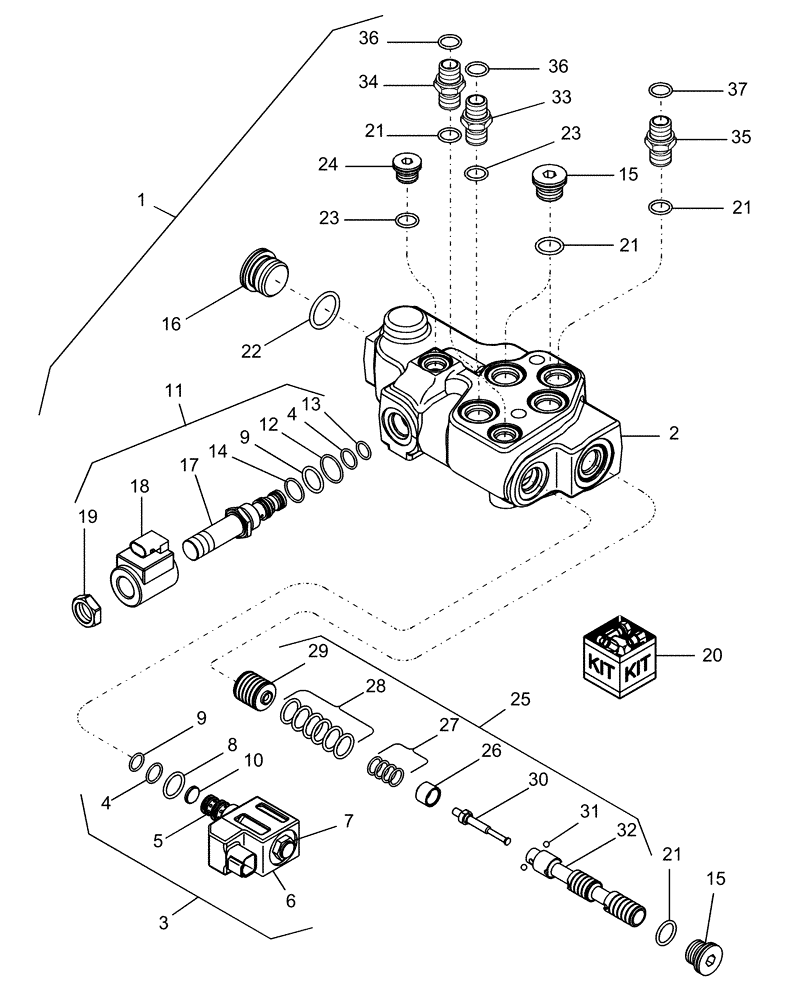

Запчасти Case IH AFX8010 (K.25.E.14.20[1]) - VALVE, PTO - CLUTCH CONTROL K - Crop Processing

1

86981235

CONTROL VALVE

Includes Ref. 2 - 37 - Variable Speed

1шт.

1

87447038

CONTROL VALVE

Includes Ref. 2 - 37 - Fixed Speed, Start Year: 04-DEC-04

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

3

349295A1

SOLENOID VALVE

Includes Ref. 4 - 10

1шт.

4

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

5

349291A1

CARTRIDGE

1шт.

6

298614A1

SOLENOID

1шт.

7

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

Jam

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

10

196096A1

SCREEN

1шт.

11

239552A2

SOLENOID VALVE

Includes Ref. 4, 9, 12-14, 17-19

1шт.

12

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

13

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

14

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

15

221578A1

PLUG,M18 x 1.5 ORB

3шт.

16

221580A1

PLUG,M27 x 2 ORB

1шт.

17

304831A1

SPOOL

Cartridge

1шт.

18

304834A1

SOLENOID

1шт.

19

304836A1

NUT

1шт.

20

308245A1

SEAL KIT

Includes (1) each Ref. 4, 9, 12, 13 & 14

1шт.

21

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

5шт.

22

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

23

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

24

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

2шт.

25

86981236

SPOOL

Includes Ref. 26 - 32, For 86981235

1шт.

25

283642A4

SPOOL

Includes Ref. 26 - 32, For 87447038, Start Year: 04-DEC-04

1шт.

26

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

27

NSS

NOT SOLD SEPARAT

Spring

1шт.

28

NSS

NOT SOLD SEPARAT

Spring

1шт.

29

NSS

NOT SOLD SEPARAT

Piston

1шт.

30

NSS

NOT SOLD SEPARAT

Pin

1шт.

31

511-1040

BALL,4mm Dia

2шт.

32

86981237

SPOOL

1шт.

33

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

34

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

35

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

36

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

37

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
