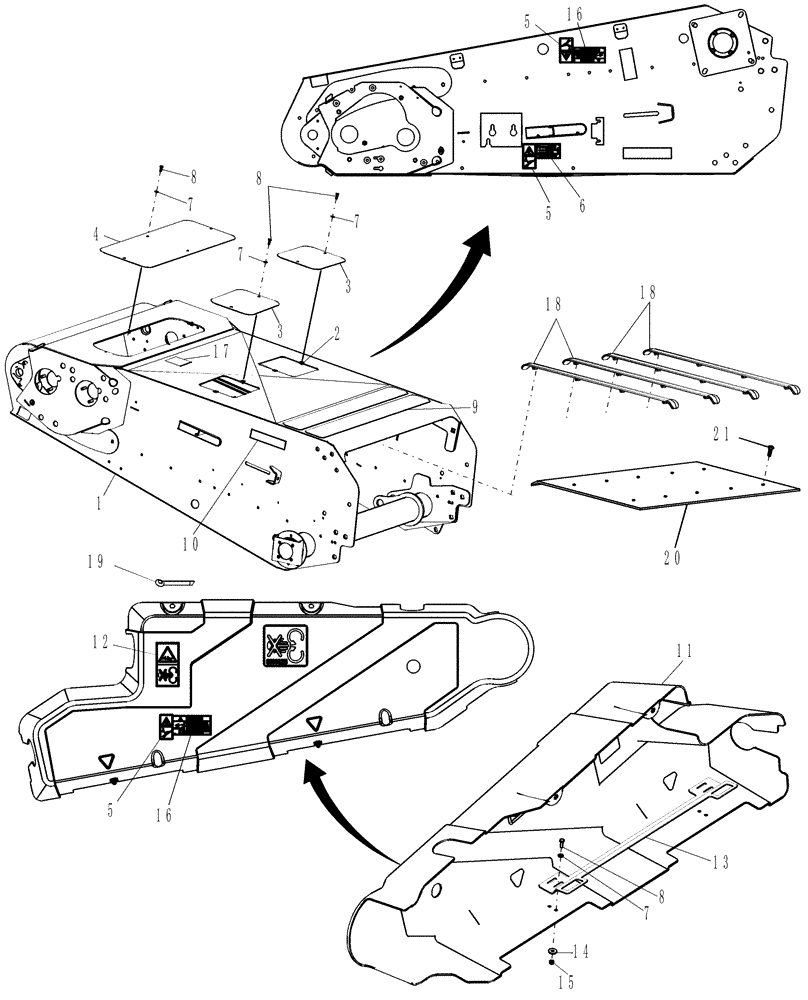

Запчасти Case IH AFX8010 (K.25.E) - FEEDER HOUSING AND SHIELDS K - Crop Processing

1

86995292

HOUSING

Feeder, Includes: Decals and Anti-Skid Pads

1шт.

1

87282752

Feeder, Includes: Decals and Anti-Skid Pads

1шт.

For EU Only

1шт.

2

86508354

PUSH-ON NUT,M8 x 1.25

U-Spring, M8 x 1.50 x 3.50 mm

4шт.

3

86995571

COVER

Top

2шт.

4

87108031

COVER

, Years: -09-FEB-04

1шт.

4

87283147

COVER

, Start Year: 09-FEB-04

1шт.

5

84004735

CAUTION DECAL

3шт.

6

86626958

WARNING DECAL

English

4шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.

9

86995792

PAD,125mm W x 1270mm L

Anti-Skid

2шт.

10

86547782

REFLECTOR,YELLOW

Reflective

2шт.

11

86999218

SHIELD

W/Decals

1шт.

11

87282751

SHIELD

W/Decals

1шт.

For EU Only

1шт.

12

86999254

DANGER DECAL

1шт.

13

87108372

BRACKET

1шт.

14

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.

15

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

16

86624774

DANGER DECAL

Danger

2шт.

17

84014117

DECAL

Stop

4шт.

18

86638209

STRIP

Wear, See Ref 20 and Figure Note

4шт.

19

86629239

COTTER PIN,Int, 5/16" x .177

, Start Year: 09-FEB-04

2шт.

19

87109290

LOCK PIN,25.4mm OD x 30mm L

2шт.

20

87339327

SHEET

UHMW, Wear Pad, Campaigned MY04[HAJ105201NA/HAJ103201EU] and prior. Ref 18 required HAJ105701 and after.

1шт.

21

86616032

SELF-TAP SCREW,Pan HD, 1/4" - 20 x 1"

20шт.
