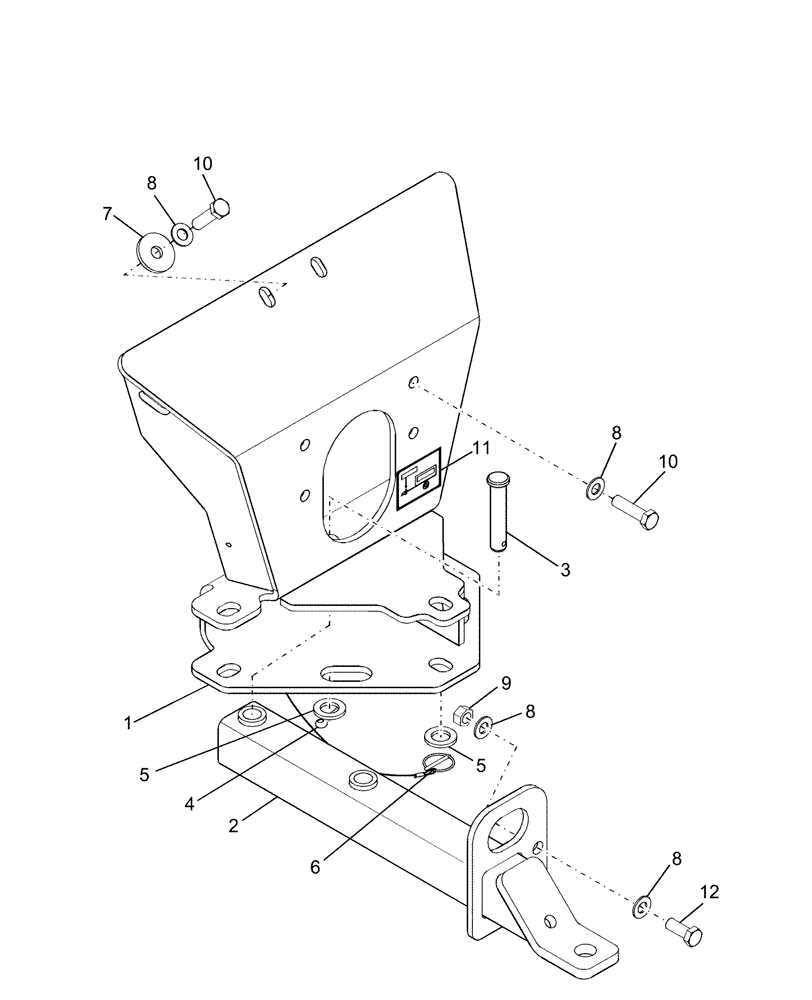

Запчасти Case IH AFX8010 (H.10.C[1]) - HITCH, FIXED MECHANICAL H - Working Arm

1

87107901

HITCH

1шт.

1

87044130

HITCH

, Start Year: 01-JAN-05

1шт.

2

87107917

TRAILER HITCH

1шт.

3

86984254

CLEVIS PIN,24mm OD x 135mm L

2шт.

4

9515820

COTTER PIN,M10.5 x 24mm OD x 3mm Thk

1шт.

5

140022

WASHER,26mm ID x 44mm OD x 4mm Thk

2шт.

6

87108028

LOCK PIN

Includes Tether

1шт.

7

337522

WASHER,17.5mm ID x 56mm OD x 5mm Thk

2шт.

8

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

10шт.

9

825-1416

NUT,M16, Cl 8

2шт.

10

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

6шт.

11

84433130

DECAL

Weight Limit

1шт.

12

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

2шт.
