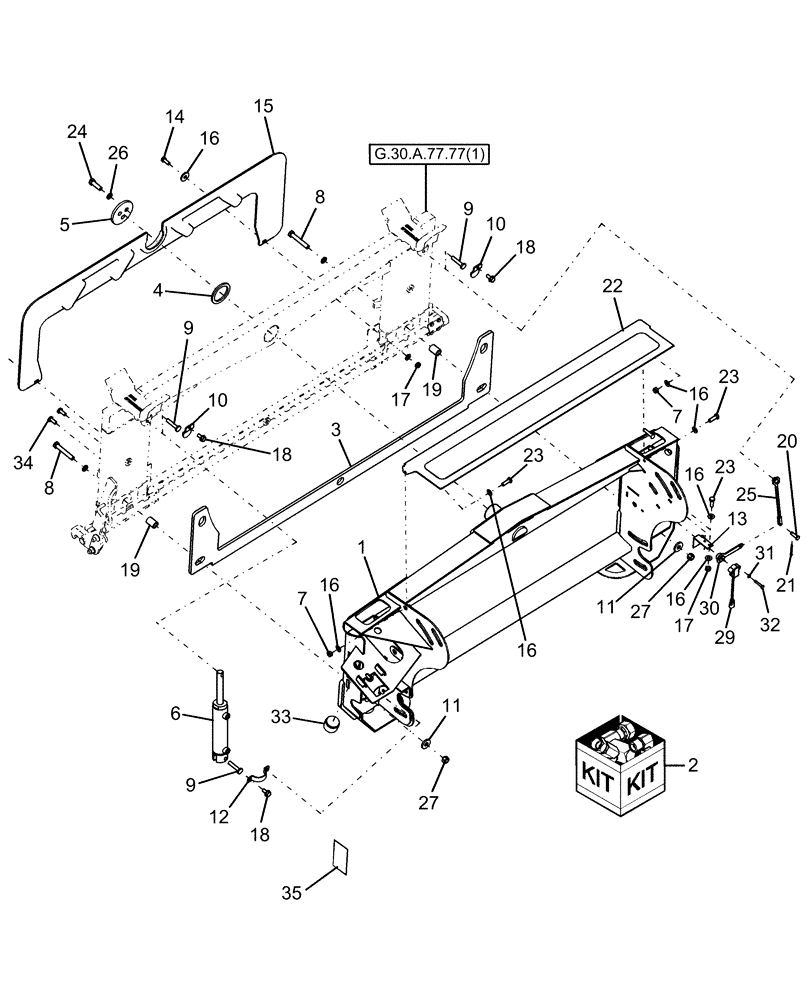

Запчасти Case IH AFX8010 (G.30.A.77.77[3]) - LATERAL TILT FEEDER ADAPTER G - Tool Positioning

1

86996120

ADAPTER

, Years: -31-DEC-05

1шт.

For NA Only

1шт.

1

87282753

, Years: -31-DEC-05

1шт.

For EU Only

1шт.

1

87532606

ADAPTER

Was 87344106 Includes Ref. 35, Start Year: 01-JAN-06

1шт.

For NA Only

1шт.

1

87532607

ADAPTER

Was 87344107 Includes Ref. 35, Start Year: 01-JAN-06

1шт.

For EU Only

1шт.

2

87105744

SEAL KIT

Ref.6, Cylinder Repair

1шт.

3

86995541

PLASTIC

Front

1шт.

4

86995542

THRUST WASHER,77.5mm ID x 101.6mm OD x 7.8mm Thk

Center, Front

1шт.

5

86995680

RETAINING PLATE

Center, 2 Holes, Years: -29-MAR-04

1шт.

5

87283209

RETAINING PLATE

Center, 3 Holes, Start Year: 29-MAR-04

1шт.

6

87108710

CYLINDER

Lateral Tilt Feeder Adapter, Years: -29-MAR-04

1шт.

6

87282645

CYLINDER,Double Acting, 28mm Rod, 140mm Stroke

Lateral Tilt Feeder Adapter, Start Year: 29-MAR-04

1шт.

For NA Only

1шт.

6

87108114

CYLINDER

Lateral Tilt Feeder Adapter, Years: -29-MAR-04

1шт.

For EU Only

1шт.

6

87282646

CYLINDER,Double Acting, 25mm Rod, 84mm Stroke

Lateral Tilt Feeder Adapter, Start Year: 29-MAR-04

1шт.

For EU Only

1шт.

7

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

8

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

2шт.

9

87024342

PIN

Headed, CL 8.8, M12 x 55, Years: -29-MAR-04

3шт.

9

87282857

PIN

Replaces 87280511, Start Year: 29-MAR-04

3шт.

9

87312143

PIN,14mm OD x 68.5mm L

, Start Year: 01-JAN-06

3шт.

10

87107104

PLATE

2шт.

10

87312141

PLATE

, Start Year: 01-JAN-06

2шт.

11

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

, Years: -29-MAR-04

2шт.

11

913347

WASHER,M17 x 56mm OD x 11mm Thk

, Start Year: 29-MAR-04

2шт.

12

87107105

U-BRACKET

1шт.

13

87001364

BRACKET

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

15

86995566

DEFLECTOR

Front

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

17

9706690

NUT,M8 x 1.25, Cl 8

4шт.

18

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

19

87107672

SPACER,20.64mm ID x 30.16mm OD x 42mm L

2шт.

20

84019930

CLEVIS PIN,6mm OD x 20mm L

1шт.

21

86523849

COTTER PIN,1/16" x 3/4"

1шт.

22

84155101

SHEET

Shield, Top

1шт.

23

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

24

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

, Years: -29-MAR-04

2шт.

24

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

, Start Year: 29-MAR-04

2шт.

25

86997312

LINKAGE

, Years: -29-MAR-04

1шт.

25

87283220

LINKAGE

, Start Year: 29-MAR-04

1шт.

26

86588503

WASHER,17mm ID x 28mm OD x 3mm Thk

4шт.

27

86512555

NUT,M16 x 2, Cl 10

2шт.

28

140041

WASHER,M8 x 28mm OD x 3mm Thk

1шт.

29

86995593

SENSOR

Feeder Angle

1шт.

29

87283864

SENSOR

Feeder Angle, Start Year: 01-JAN-06

1шт.

30

87105024

ARM

1шт.

31

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

32

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

2шт.

33

87105683

CAP

1шт.

34

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

, Start Year: 29-MAR-04

4шт.

35

86996879

DECAL

, Start Year: 01-JAN-06

2шт.

For NA Only

1шт.

35

87413244

DECAL

, Start Year: 01-JAN-06

2шт.

For EU Only

1шт.
