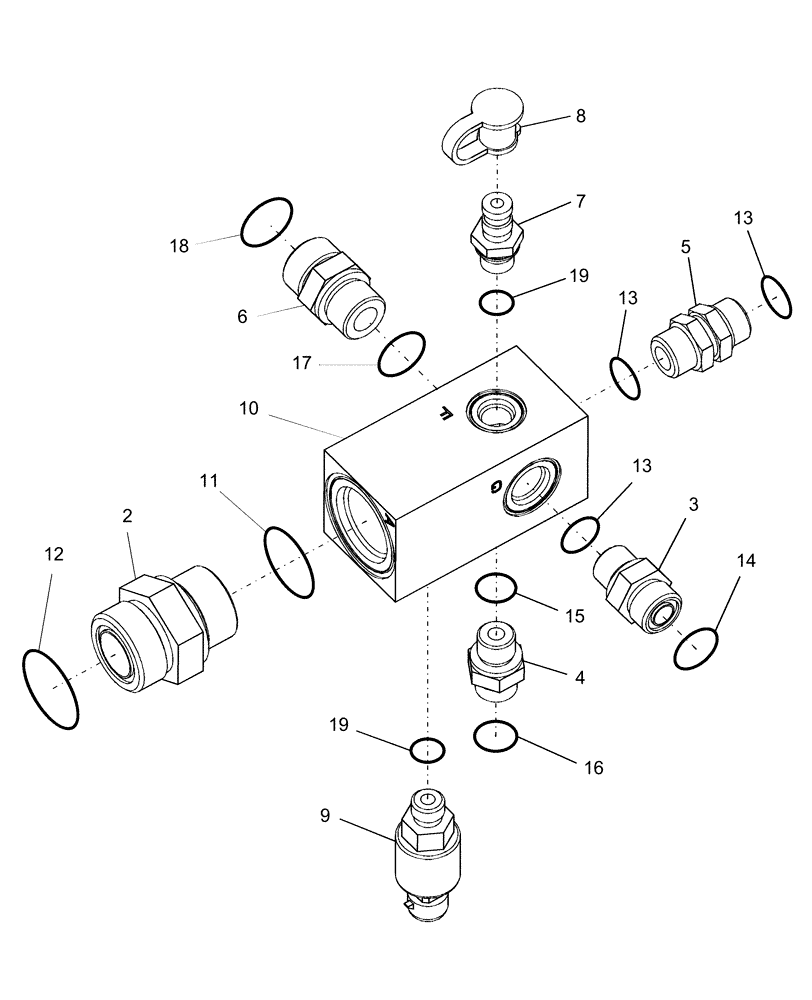

Запчасти Case IH AFX8010 (A.12.A.19) - MANIFOLD, CHARGE PRESSURE A - Distribution Systems

1

86975013

MANIFOLD

Includes Ref. 2 thru 10, Years: -15-AUG-03

1шт.

1

87282545

MANIFOLD

Includes Ref. 2 thru 10, Start Year: 15-AUG-03

1шт.

1

87283811

Pressure Control, Includes Ref. 2, 3, 4, 6, 7, 8, 9, 10, Start Year: 04-DEC-04

1шт.

2

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

, Years: -15-AUG-03

1шт.

2

86579684

HYD CONNECTOR,1-11/16"-12 ORFS x M33 x 2.0 ORB

, Start Year: 15-AUG-03

1шт.

3

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

4

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

5

86997654

HYD CONNECTOR

ORB,M18x1.5

1шт.

6

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

7

84320565

COUPLING,M14 x 1.5

1шт.

8

86502604

DUST CAP

1шт.

9

86597585

SENSOR

Control Pressure Switch

1шт.

10

86975009

MANIFOLD

, Years: -04-DEC-04

1шт.

10

87283810

MANIFOLD

, Start Year: 04-DEC-04

1шт.

11

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

ORB, M33

1шт.

12

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ORF, 1-7/16", Years: -15-AUG-03

1шт.

12

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

ORF, 1-11/16", Start Year: 15-AUG-03

1шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

ORB, M18

3шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

ORF, 13/16"

1шт.

15

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

ORB, M16

1шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

ORF, 11/16"

1шт.

17

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

ORB, M22

1шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

ORB, M14

2шт.
