(G.30.A.77.77[2]) - FEEDER HOUSE FIXED FRONT FACE ADAPTER - PRIOR TO PIN HAJ105705

Запчасти Case IH AFX8010 (G.30.A.77.77[2]) - FEEDER HOUSE FIXED FRONT FACE ADAPTER - PRIOR TO PIN HAJ105705 G - Tool Positioning

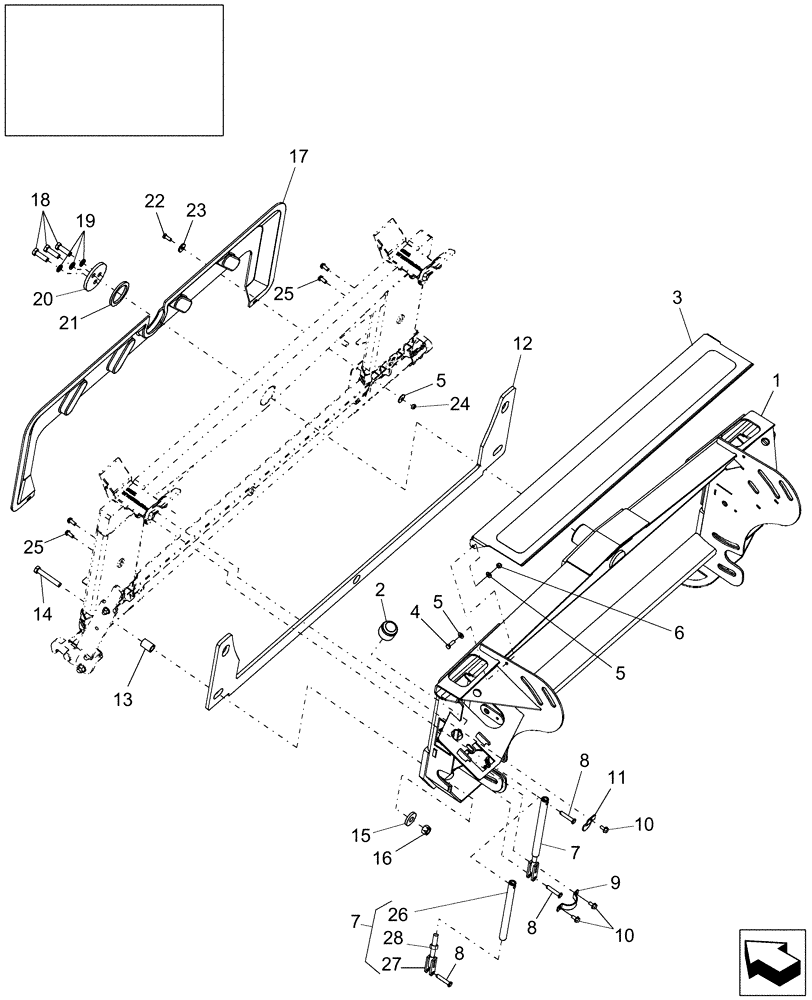

Схема запчастей Case IH AFX8010 - (G.30.A.77.77[2]) - FEEDER HOUSE FIXED FRONT FACE ADAPTER - PRIOR TO PIN HAJ105705 G - Tool Positioning
8
17
28
10
5
25
19
27
2
16
26
23
15
3
20
9
8
25
5
8
6
4
14
1
10
21
7
7
12
24
5
22
13
11
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86996120

ADAPTER

Front Face, Years: -29-MAR-04

1шт.

For NA Only

1шт.

1

87282753

1шт.

For EU Only

1шт.

1

87280726

ADAPTER

Front Face, Start Year: 29-MAR-04

1шт.

2

87105683

CAP

1шт.

3

84155101

SHEET

Shield, Top

1шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

6

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

7

86997269

CLEVIS

, Years: -29-MAR-04

1шт.

7

87283241

CLEVIS

Adjustable, Start Year: 29-MAR-04

1шт.

8

383420

CLEVIS PIN,M12 x 55

, Years: -29-MAR-04

2шт.

8

87282857

PIN

, Start Year: 29-MAR-04

2шт.

9

87107105

U-BRACKET

Pin Retaining

1шт.

10

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

11

87107104

PLATE

Pin Retaining

1шт.

12

86995541

PLASTIC

1шт.

13

87107672

SPACER,20.64mm ID x 30.16mm OD x 42mm L

2шт.

14

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

2шт.

15

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

, Years: -29-MAR-04

2шт.

15

913347

WASHER,M17 x 56mm OD x 11mm Thk

, Start Year: 29-MAR-04

2шт.

16

86512555

NUT,M16 x 2, Cl 10

2шт.

17

86995566

DEFLECTOR

Front

1шт.

18

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

, Years: -29-MAR-04

2шт.

18

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

, Start Year: 29-MAR-04

3шт.

19

86588503

WASHER,17mm ID x 28mm OD x 3mm Thk

1шт.

20

87283738

RETAINING PLATE

Front Center, 3 Holes; Was 86995680 - 2 Holes, Years: -29-MAR-04

1шт.

20

87283209

RETAINING PLATE

Front Center, 3 Holes, Start Year: 29-MAR-04

1шт.

21

86995542

THRUST WASHER,77.5mm ID x 101.6mm OD x 7.8mm Thk

1шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

80140041

WASHER

M8

2шт.

24

9706690

NUT,M8 x 1.25, Cl 8

2шт.

25

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

, Start Year: 29-MAR-04

4шт.

26

87283240

TUBE,17.45 mm ID x 26.99 mm OD x 312 mm L

, Start Year: 29-MAR-04

1шт.

27

87283238

CLEVIS

, Start Year: 29-MAR-04

1шт.

28

9847024

NUT,M20, Cl 10

, Start Year: 29-MAR-04

1шт.

Выбрано товаров: 37
