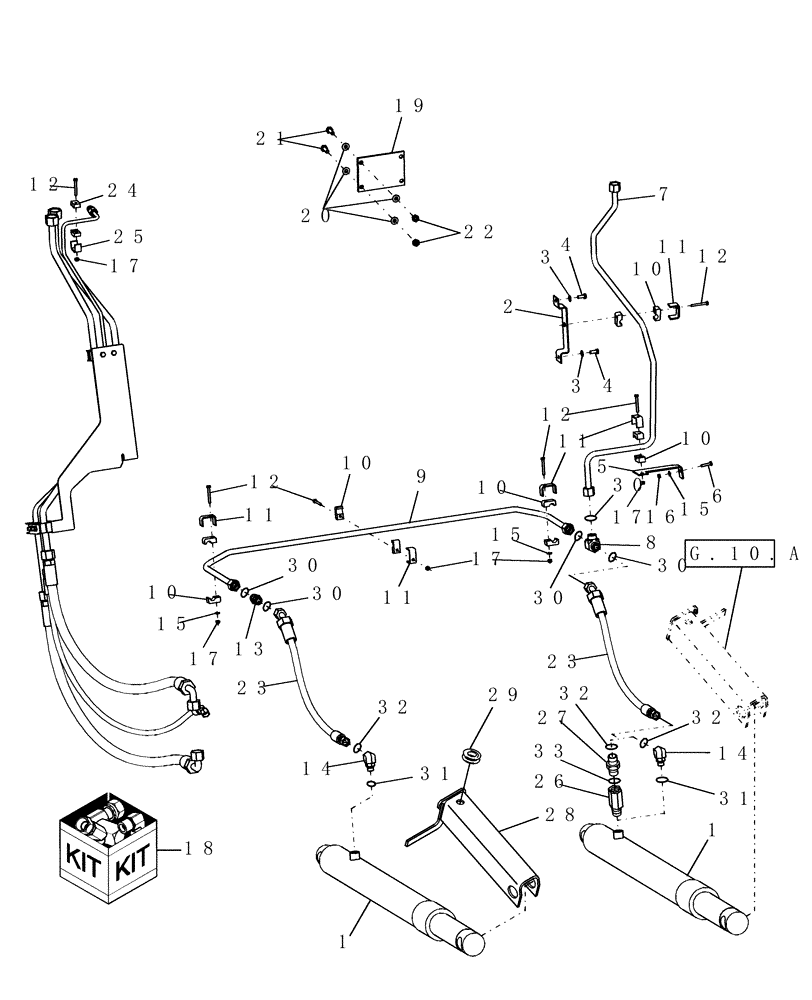

Запчасти Case IH AFX8010 (G.10.A[2]) - HYDRAULICS - FEEDER LIFT G - Tool Positioning

1

86981406

CYLINDER

Feeder Lift, Years: -15-AUG-03, Serial Range: -HAJ105236

2шт.

87282426R

REMAN-HYD CYLINDER

AFX8010 - PIN HAJ105105 THRU HAJ199999, Serial Range: -HAJ105236 (3/03-9/06), Reman for new P/N 86981406

2шт.

87282426C

CORE-HYD CYLINDER

Return Number

1шт.

1

86981406

CYLINDER

Feeder Lift, Years: -15-AUG-03, Serial Range: -HAJ103230

2шт.

For EU Only

1шт.

1

87031103

CYLINDER

Feeder Lift, Years: 15-AUG-03-06-DEC-03, Start Serial: HAJ105237

2шт.

87282426R

REMAN-HYD CYLINDER

AFX8010 - PIN HAJ105105 THRU HAJ199999, Start Serial: HAJ105237 (3/03-9/06), Reman for new P/N 87031103

2шт.

87282426C

CORE-HYD CYLINDER

Return Number

1шт.

1

87031103

CYLINDER

Feeder Lift, Years: 15-AUG-03-06-DEC-03, Start Serial: HAJ103231

2шт.

For EU Only

1шт.

1

87282426

HYDRAULIC CYLINDER,75mm Rod, 525mm Stroke

, Start Year: 06-DEC-03

2шт.

87282426R

REMAN-HYD CYLINDER

AFX8010 PIN HAJ105105 THRU HAJ199999 (3/03-9/06)

2шт.

87282426C

CORE-HYD CYLINDER

Return Number

1шт.

2

87108130

BRACKET

Feeder Lift Tube, Years: -15-AUG-03

1шт.

2

87281787

SUPPORT TUBE

Feeder Lift Tube, Start Year: 15-AUG-03

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

5

87108132

SUPPORT

Feeder Lift, Case Drain Tubes

1шт.

6

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

, Years: -15-AUG-03

1шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

, Start Year: 15-AUG-03

1шт.

7

87000417

HYD TUBE,0.625" OD

Feeder Lift, Mid

1шт.

8

84989665

TEE,1"-14 ORFS

1шт.

9

87000419

HYD TUBE,0.625" OD

Feeder Lift, Lower

1шт.

10

433007

CLAMP

10шт.

11

433100

SUPPORT

5шт.

12

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

1шт.

13

84431473

HYD CONNECTOR,1"-14 ORFS

1шт.

14

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

2шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

16

9706755

NUT,M6, Cl 8

1шт.

17

353308

NUT,M6 x 1.0, Cl 8

1шт.

18

87105743

Kit, Seals - Feeder Lift Cylinder, Years: -15-AUG-03

1шт.

18

87031097

SEAL KIT

Feeder Lift Cylinder, Start Year: 15-AUG-03

1шт.

19

86976845

PLATE

Mounting

1шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

21

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

22

100016

NUT,M10 x 1.5, Cl 8

2шт.

23

87105740

FLEXIBLE HOSE,12.5mm ID x 625mm L

Feeder Lift Cylinder

2шт.

24

433008

CLAMP

2шт.

25

442340

SUPPORT

1шт.

26

84442647

SAFETY VALVE

, Start Year: 29-AUG-03

1шт.

For EU Only

1шт.

27

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

, Start Year: 29-AUG-03

1шт.

For EU Only

1шт.

28

87280191

CHANNEL

, Start Year: 29-AUG-03

1шт.

For EU Only

1шт.

29

87107921

GROMMET,19mm ID x 41mm OD x 30mm Thk

, Start Year: 29-AUG-03

1шт.

For EU Only

1шт.

30

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

31

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

33

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
