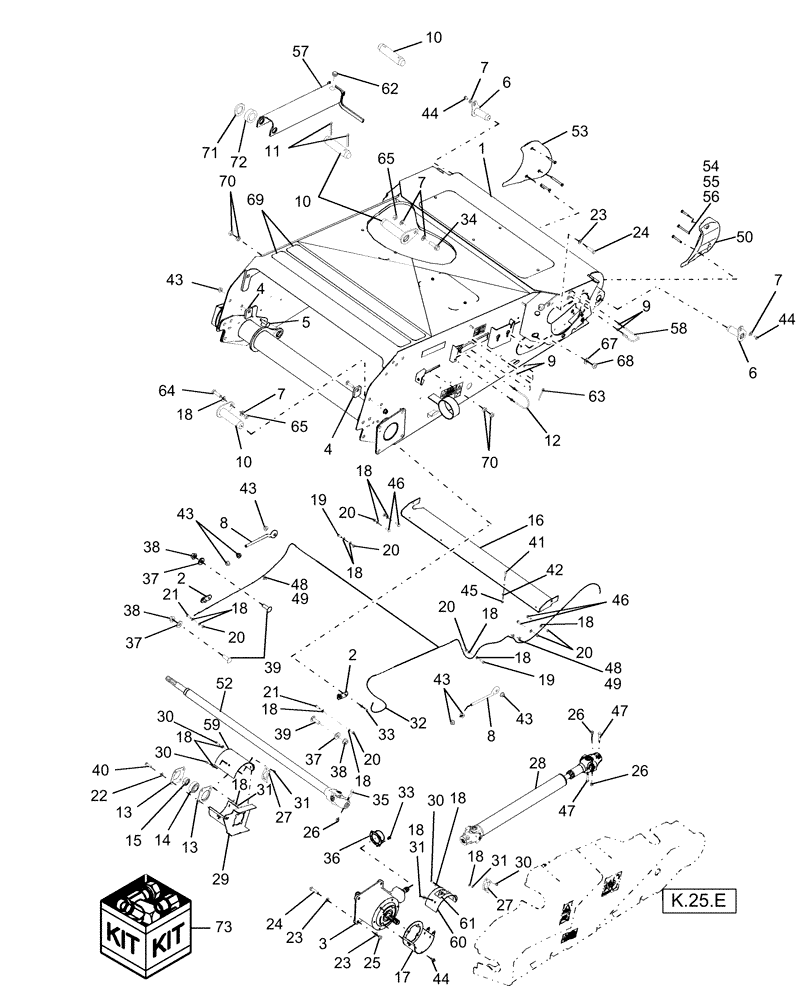

Запчасти Case IH AFX8010 (G.10.A[1]) - FEEDER FRAME G - Tool Positioning

1

86995292

HOUSING

Includes: Decals & Anti-Skid Pads

1шт.

1

87282752

1шт.

For EU Only

1шт.

2

87106719

BRACKET

2шт.

3

87109542

GEARBOX

Was 86999169

1шт.

87610913R

REMAN-GEARBOX

AFX8010 PIN HAJ105105 Thru HAJ199999, Reman For New P/N's 87109542 & 87610913,

1шт.

87610913C

CORE-GEARBOX

Return Number

1шт.

4

86995788

PLATE

, Years: -06-DEC-03

2шт.

4

87282452

PLATE

, Start Year: 06-DEC-03

2шт.

5

86981360

BOLT

, Years: -06-DEC-03

2шт.

5

87281691

BOLT,Special Bolt, M16 x 2 x 68.9mm OAL 10mm W Flat

, Start Year: 06-DEC-03

2шт.

6

87109123

PIN

, Years: -06-DEC-03

2шт.

6

87281673

PIN,44mm OD x 127mm L

, Start Year: 06-DEC-03

2шт.

7

362810

WASHER,11mm ID x 30mm OD x 5mm Thk

1шт.

8

87109127

BOLT

Eye

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

10

87109728

PIN

, Years: -06-DEC-03

4шт.

10

87282445

PIN,41.27mm OD x 218mm L

, Start Year: 06-DEC-03

4шт.

11

80752

COTTER PIN,1/4" x 2 1/2"

8шт.

12

87108395

U-BOLT,M8 x 1.25, 145mm OAL x 95mm W

1шт.

13

848286

FLANGE

, Years: -06-DEC-03

2шт.

13

86974037

FLANGE

, Start Year: 06-DEC-03

2шт.

14

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

1шт.

15

45393

COLLAR

1шт.

16

87282529

SEAL

Rear, Replaced 87106711

1шт.

17

87108951

SHIELD

LH

1шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

20

100016

NUT,M10 x 1.5, Cl 8

34шт.

21

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

23

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

12шт.

24

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

8шт.

25

825-1416

NUT,M16, Cl 8

4шт.

26

87021758

NUT,M12 x 1.75, Cl 10

5шт.

27

86638316

LATCH

2шт.

28

86999166

SHAFT

Conveyor Jackshaft

1шт.

29

87108942

SHIELD

RH

1шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

31

9706690

NUT,M8 x 1.25, Cl 8

8шт.

32

87108254

HARNESS

Wire

1шт.

32

87326647

WIRE HARNESS

Wire - with Reel Position Sensors, Start Year: 01-JAN-06

1шт.

33

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

34

9804263

BOLT,M10 x 49.2mm, Cl 8.8

, Start Year: 09-FEB-04

2шт.

35

87301326

BOLT,M12 x 1.75 x 82.68mm, Cl 10.9

1шт.

36

87283910

GUARD

, Start Year: 04-OCT-04

1шт.

37

86592703

WASHER,21mm ID x 50mm OD x 6mm Thk

14шт.

38

86512499

FLANGE NUT,M20 x 2.5, Cl 10

14шт.

39

86981478

CARRIAGE BOLT,M20 x 70.9mm, Cl 10.9

14шт.

40

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

41

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

, Years: -06-DEC-03

5шт.

41

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

, Start Year: 06-DEC-03

5шт.

42

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

43

86512498

FLANGE NUT,M16 x 2, Cl 10

1шт.

44

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

6шт.

45

832-46408

NUT,M8 x 1.25, Cl 8

6шт.

46

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

47

87021759

BOLT,M12 x 1.75 x 60mm, Cl 10.9

4шт.

48

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

4шт.

49

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

50

87282755

DEFLECTOR

LH

1шт.

52

86999167

SHAFT

Feeder Jackshaft

1шт.

53

87282756

DEFLECTOR

RH

1шт.

54

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

2шт.

55

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

2шт.

56

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

57

87564959

CHANNEL

1шт.

For NA Only

1шт.

57

87564963

CHANNEL

1шт.

For EU Only

1шт.

58

87283141

RETAINING WIRE

Replaces 87107616

1шт.

59

87108949

SHIELD

RH

1шт.

60

87108945

SHIELD

LH, Includes Decal

1шт.

60

87108944

SHIELD

LH, Less Decal

1шт.

61

84004742

DECAL

1шт.

62

87107921

GROMMET,19mm ID x 41mm OD x 30mm Thk

1шт.

63

281072

COTTER PIN,5/16" Dia x 3"

8шт.

64

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

65

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

66

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

, Years: -09-FEB-04

2шт.

67

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

68

86619907

NUT,1.6875"-18

1шт.

69

86995792

PAD,125mm W x 1270mm L

2шт.

70

392530

NUT,M16, Cl 10

, Start Year: 09-FEB-04

4шт.

71

87583638

WASHER

2шт.

72

87583639

SPACER

2шт.

73

87583642

SERVICE KIT

Includes Ref. 71 & 72

1шт.
