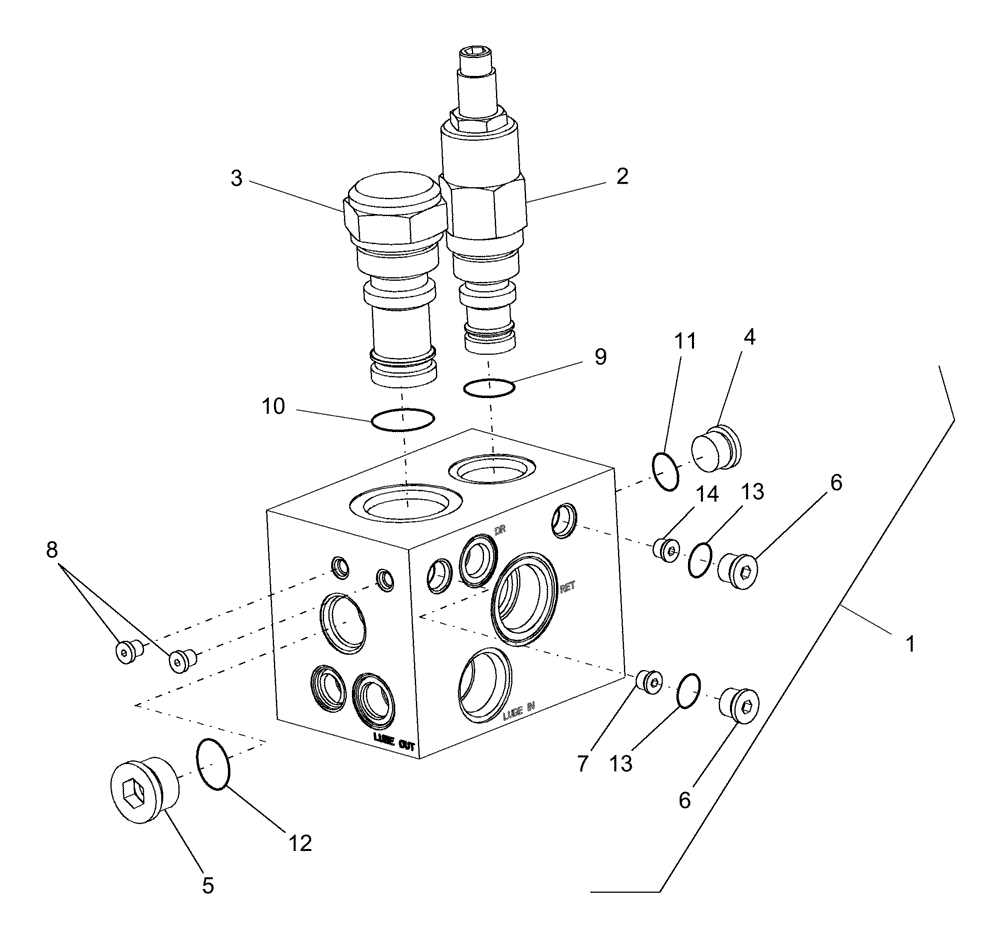

Запчасти Case IH AFX8010 (A.12.A.17[4]) - VALVE, HYDRAULIC PTO/CHARGE REGULATOR A - Distribution Systems

1

86975010

HYDRAULIC VALVE

Includes: Ref 1 thru 13, Serial Range: -HAJ100949

1шт.

1

87283360

HYDRAULIC VALVE

Includes: Ref 1 thru 14, Start Serial: HAJ100950

1шт.

2

NLA

Pressure Regulating, Includes Ref. 9, Serial Range: -HAJ100949

1шт.

2

87283362

HYDRAULIC VALVE

Pressure Regulating, Includes Ref.9, Start Serial: HAJ100950

1шт.

3

87281715

HYDRAULIC VALVE

Pressure Regulating, Includes Ref. 10

1шт.

4

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Includes Ref. 11

1шт.

5

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 12

1шт.

6

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 13

2шт.

7

87281716

PLUG, Orifice, Serial Range: -HAJ100949

1шт.

7

87026245

ORIFICE

.040, Start Serial: HAJ100950

1шт.

8

86602475

PLUG

BSN

2шт.

8

86632547

PLUG,Hex, 5/16"-24 ORB

ASN

2шт.

9

1978123C1

SEAL KIT

1шт.

10

700714185

KIT

Seal

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

14

87444190

ORIFICE

.045, Start Serial: HAJ100950

1шт.
