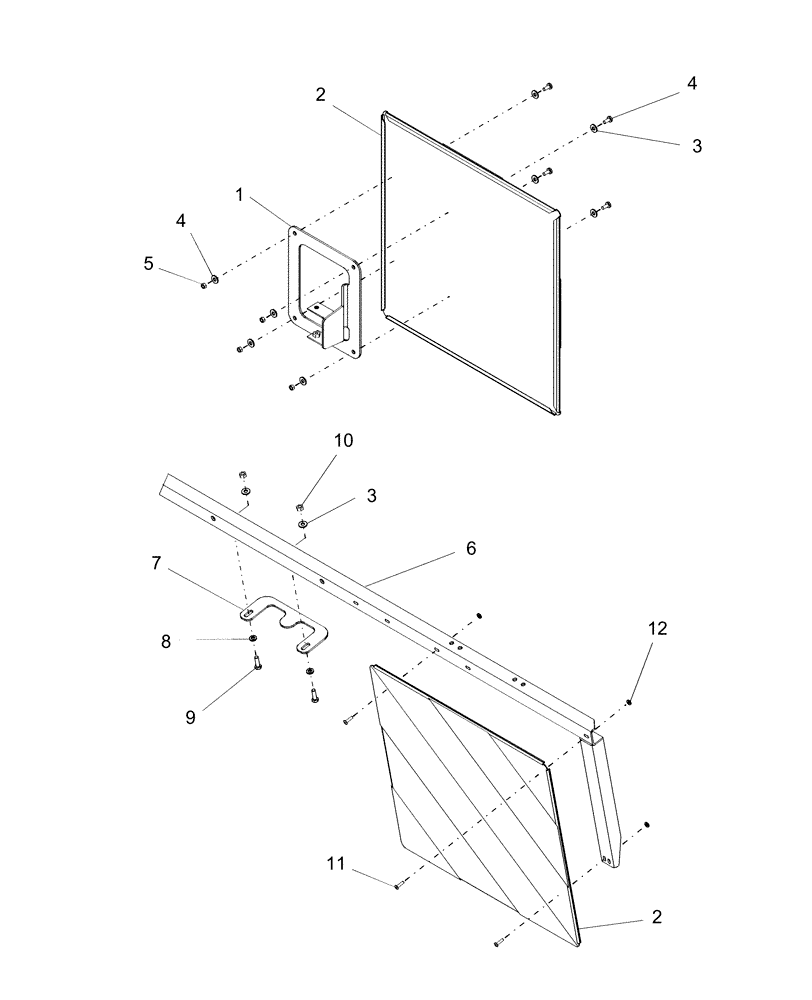

Запчасти Case IH AFX8010 (E.60.A.02[1]) - SIGNAL PLATES, WIDE E - Body and Structure

1

87106368

BRACKET

Rear

2шт.

1

87284854

BRACKET

2шт.

2

84607381

PLATE

Signal

4шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

20шт.

4

80043982

SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8

Pan Hd, M5 x 10

8шт.

5

86508813

NUT,M5, Cl 8

8шт.

6

9502877

SUPPORT

Profile

1шт.

7

87000768

BRACKET

2шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

10

9706755

NUT,M6, Cl 8

4шт.

11

425523

RIVET

Pop, Aluminum

6шт.

12

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.
