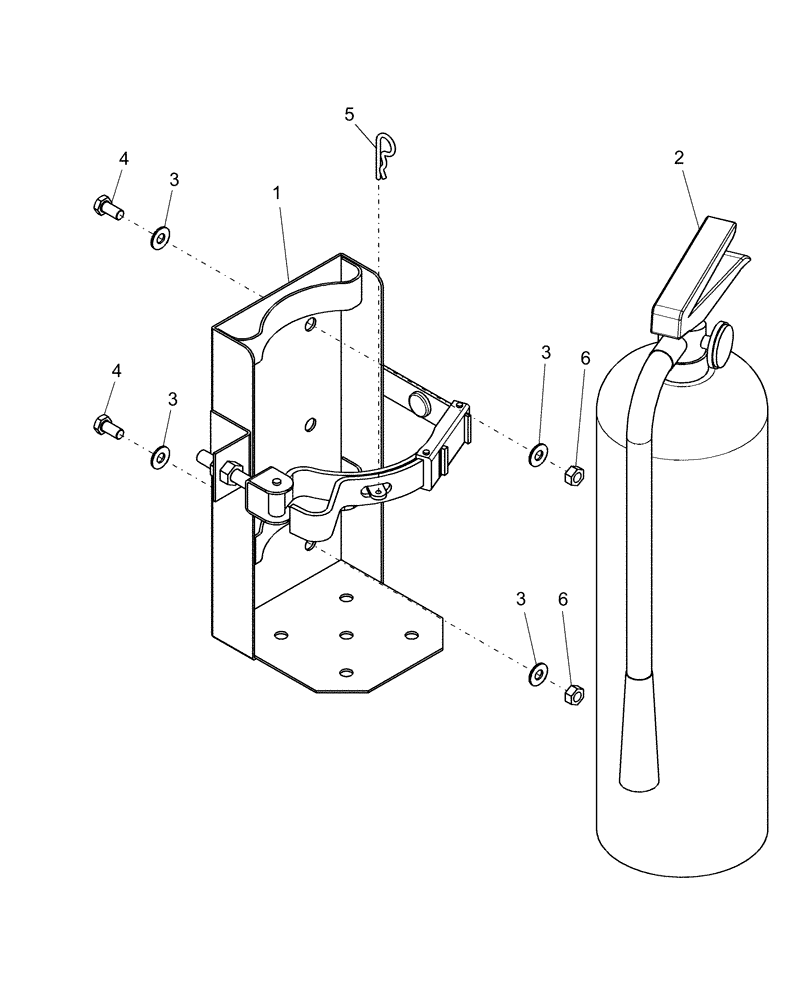

Запчасти Case IH AFX8010 (E.50.B.90[1]) - FIRE EXTINGUISHER - EU E - Body and Structure

1

87414154

BRACKET

1шт.

2

87414153

FIRE EXTINGUISHER

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

5

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.

6

9706690

NUT,M8 x 1.25, Cl 8

4шт.
