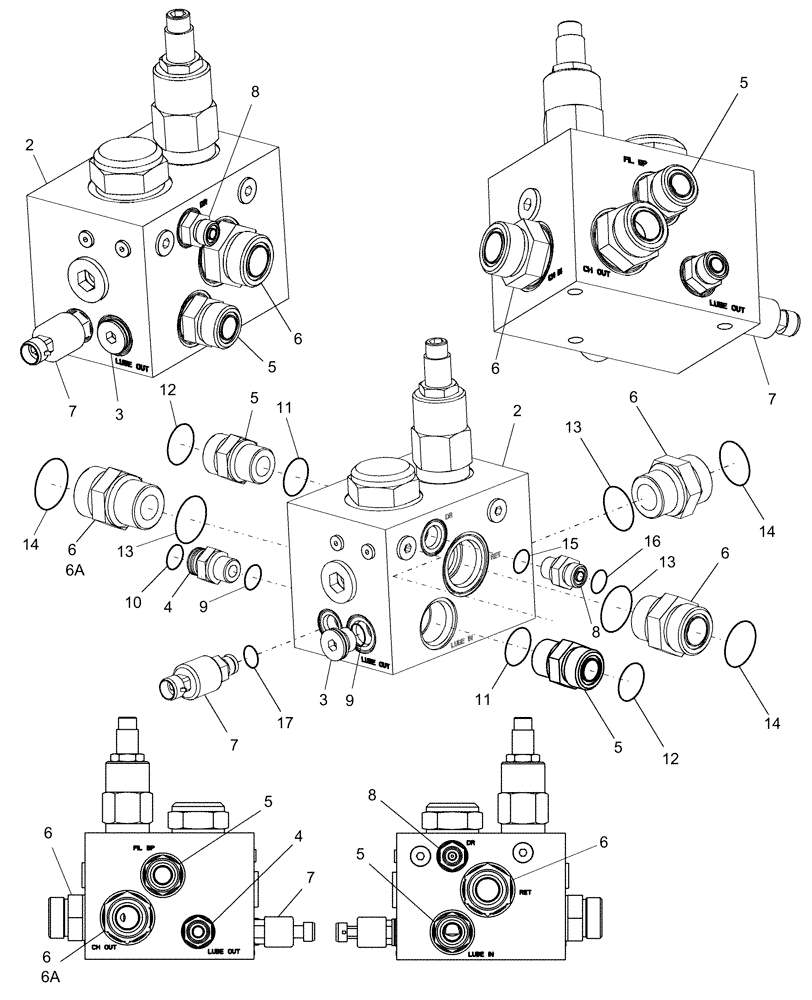

Запчасти Case IH AFX8010 (A.12.A.17[3]) - VALVE, HYDRAULIC PTO / CHARGE REGULATOR A - Distribution Systems

1

87281628

HYDRAULIC VALVE

PTO Regulator - With Fittings - Was 86998777, Years: -15-AUG-03

1шт.

1

87282402

HYDRAULIC VALVE

Less Fittings, Years: 15-AUG-03-09-FEB-04, Serial Range: -HAJ100949

1шт.

1

87283360

HYDRAULIC VALVE

Less Fittings, Start Year: 09-FEB-04, Start Serial: HAJ100950

1шт.

2

86975010

HYDRAULIC VALVE

PTO Regulator - Less Fittings, Years: -15-AUG-03

1шт.

3

86598046

PLUG,M18 x 1.5 ORB

, Years: -15-AUG-03

1шт.

4

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

5

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

2шт.

6

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

, Years: -15-AUG-03

3шт.

6

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

, Start Year: 15-AUG-03

2шт.

6a

86583482

HEX SOCKET PLUG,M33 x 2

, Start Year: 15-AUG-03

1шт.

7

87280944

PRESSURE SWITCH

Lube Pressure

1шт.

8

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

13

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

3шт.

14

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

15

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
