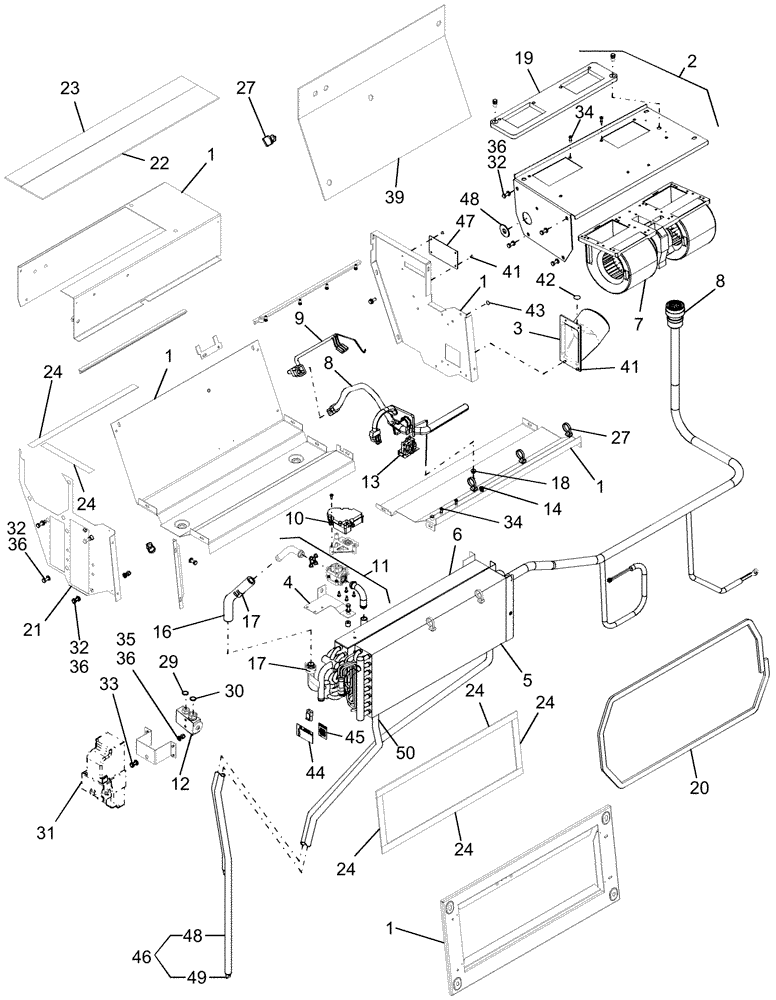

Запчасти Case IH AFX8010 (E.40.D.92[2]) - HVAC UNIT - MANUAL E - Body and Structure

1

86523252

HOUSING

1шт.

2

84989879

PLATE

Blower

1шт.

3

84320221

AIR DUCT

Fresh Air Inlet

1шт.

4

84074997

BRACKET

Watervalve

1шт.

5

86523242

EVAPORATOR

Coil

1шт.

6

86523241

HEATER

Coil

1шт.

7

84431351

BLOWER

1шт.

8

87280357

WIRE HARNESS

1шт.

9

86594052

WIRE HARNESS

Blower

1шт.

10

84074260

ACTUATOR

, Years: -25-SEP-03

1шт.

11

84074259

VALVE

1шт.

12

84015397

VALVE

Expansion, Years: -25-SEP-03

1шт.

12

87033212

VALVE

Expansion, Start Year: 25-SEP-03

1шт.

13

84078518

THERMOSTAT

Freeze

1шт.

14

PL

PROCURE LOCALLY

Plug

1шт.

15

84074288

BUSHING

Actuator, Years: -25-SEP-03

1шт.

16

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

1шт.

17

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

2шт.

18

84320222

GROMMET,3.75mm ID x 8.5mm OD

1шт.

19

84074261

SEAL

Air Duct

1шт.

20

84320224

SEALING STRIP

Strip

1шт.

21

84320226

SEAL

End Plate

1шт.

22

84320227

SEALING STRIP,63.5mm W x 525mm L x 3mm Thk

Evaporator Coil, Top

1шт.

23

84320228

SEAL

Evaporator Coil, Top

1шт.

24

84015383

SEALING STRIP,2410mm L

1шт.

25

84434934

GASKET

Blower

1шт.

26

86976190

TUBE

Drain

1шт.

27

84320229

CABLE TIE

CABLE STRAP

5шт.

29

FOR84015185

O-RING

, Years: -25-SEP-03

1шт.

29

84817009

O-RING,0.07" Thk x 0.426" ID, -13, 70 Duro

, Start Year: 25-SEP-03

1шт.

30

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

31

84320230

TAPE

1шт.

32

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

17шт.

33

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

34

44334

SCREW,Cross Pan Hd, M4 x 12

8шт.

35

412152

NUT,M6 x 1, Cl 8.8

1шт.

36

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

17шт.

37

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

38

28283R1

SPARE PART Cross Pan Hd, #8-32 x 7/16", w/LW

1шт.

39

84320231

GASKET

1шт.

40

PL

PROCURE LOCALLY

Insulation

1шт.

41

PL

PROCURE LOCALLY

Rivet, Pop

8шт.

42

PL

PROCURE LOCALLY

Plug

2шт.

43

PL

PROCURE LOCALLY

Plug

1шт.

44

591120

DECAL

1шт.

45

NS

NOT SERVICED

Decal

1шт.

46

86976191

FLEXIBLE HOSE

Drain; Includes: Ref.s 48 Thru 50

2шт.

47

87280279

COVER

Coolbox

1шт.

48

198091C1

HOSE,12.95mm ID x 15240mm L

50'; 75" Required

1шт.

Cut to Required Lengths

1шт.

49

109239C2

CHECK VALVE

2шт.

50

1250522C3

FITTING

2шт.
