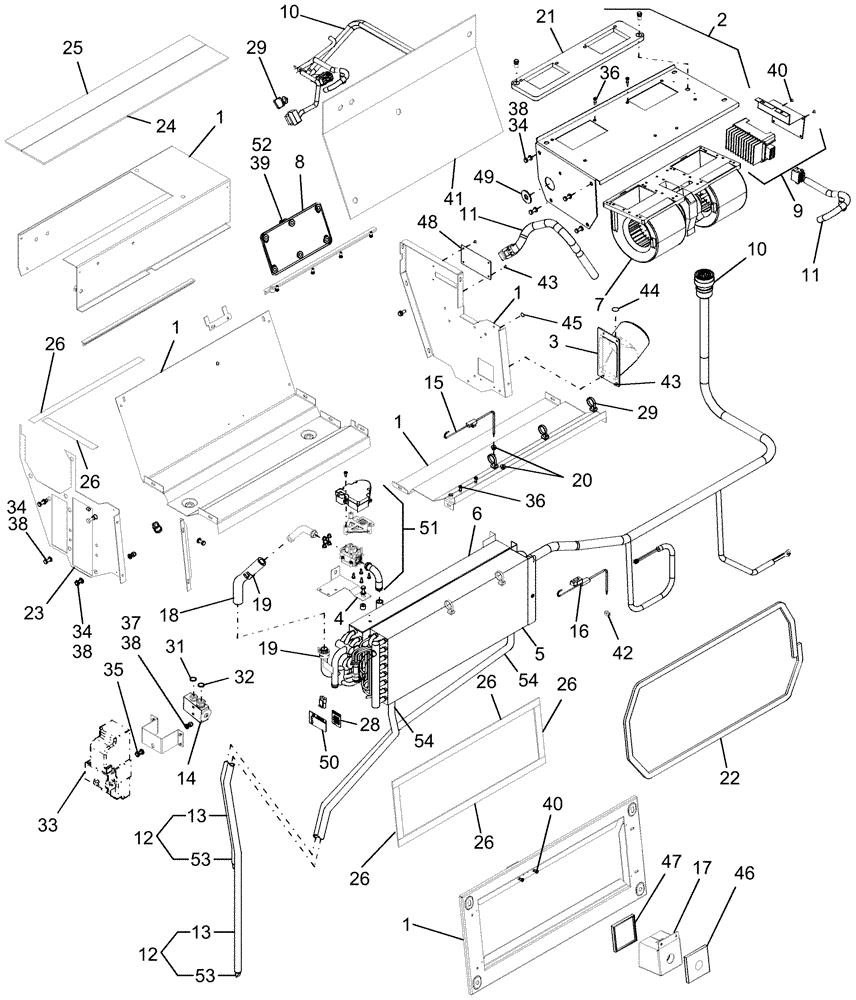

Запчасти Case IH AFX8010 (E.40.D.92[1]) - ATC UNIT, PRIOR TO PIN HAJ106401 E - Body and Structure

1

86523252

HOUSING

, Years: -25-SEP-03

1шт.

1

87282348

HOUSING

, Start Year: 25-SEP-03

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Blower

1шт.

3

84320221

AIR DUCT

Fresh Air Inlet

1шт.

4

NSS

NOT SOLD SEPARAT

Watervalve

1шт.

5

86523242

EVAPORATOR

Coil

1шт.

6

86523241

HEATER

Coil

1шт.

7

87663947

BLOWER,12 V

Blower Assembly

1шт.

8

87280280

CONTROL

Module, ATC, Years: -25-SEP-03

1шт.

87429902R

REMAN-MODULE

AFX8010 PIN HAJ105105 THRU HAJ199999 PRIOR TO PIN HAJ106401 (3/03-9/06), Reman for New P/N 87280280

1шт.

87429902C

CORE-MODULE

Return Number

1шт.

8

87429902

CONTROL

Module, ATC, Start Year: 25-SEP-03

1шт.

87429902R

REMAN-MODULE

AFX8010 PIN HAJ105105 THRU HAJ199999 PRIOR TO PIN HAJ106401 (3/03-9/06)

1шт.

87429902C

CORE-MODULE

Return Number

1шт.

9

393289A1

ECU

Blower Resistor

1шт.

9

393289A1R

REMAN ELECT CONTROL

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, Blower Resistor, PRIOR TO PIN HAJ106401 (3/03-9/06)

1шт.

9

393289A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

10

87282350

WIRE HARNESS

1шт.

11

87282351

WIRE HARNESS

Blower - Includes Ref.49

1шт.

12

86976191

FLEXIBLE HOSE

Drain; Includes: Ref.s 13, 53, & 54

2шт.

13

198091C1

HOSE,12.95mm ID x 15240mm L

50'; 75" Required

1шт.

Cut to Required Lengths

1шт.

14

84015397

VALVE

Expansion, Years: -15-AUG-03

1шт.

14

87033212

VALVE

Expansion, Start Year: 15-AUG-03

1шт.

15

87282407

SENSOR

Probe

1шт.

16

86531133

SENSOR

Temperature

1шт.

17

84443617

COVER

Venturi, Serial Range: -HAJ106401

1шт.

17

87367963

VENTURI

, Start Serial: HAJ106401

1шт.

18

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

1шт.

19

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

2шт.

20

84320222

GROMMET,3.75mm ID x 8.5mm OD

2шт.

21

84074261

SEAL

Air Duct

1шт.

22

84320224

SEALING STRIP

Strip

1шт.

23

84320226

SEAL

Unit End Plate

1шт.

24

84320227

SEALING STRIP,63.5mm W x 525mm L x 3mm Thk

Evaporator Coil Top

1шт.

25

84320228

SEAL

Heater Coil Top

1шт.

26

84015383

SEALING STRIP,2410mm L

1шт.

27

84434934

GASKET

Blower

1шт.

28

NSS

NOT SOLD SEPARAT

Decal, Warning

1шт.

29

84320229

CABLE TIE

CABLE STRAP

5шт.

31

84015185

O-RING

, Years: -15-AUG-03

1шт.

31

84817009

O-RING,0.07" Thk x 0.426" ID, -13, 70 Duro

, Start Year: 15-AUG-03

1шт.

32

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

33

84320230

TAPE

1шт.

34

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

16шт.

35

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

36

44334

SCREW,Cross Pan Hd, M4 x 12

8шт.

37

412152

NUT,M6 x 1, Cl 8.8

1шт.

38

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

16шт.

39

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

40

28283R1

SPARE PART Cross Pan Hd, #8-32 x 7/16", w/LW

4шт.

41

84320231

GASKET

Gasket

1шт.

42

PL

PROCURE LOCALLY

Cable Tie

1шт.

43

PL

PROCURE LOCALLY

Rivet, Pop, 3mm

6шт.

44

PL

PROCURE LOCALLY

Plug

1шт.

45

PL

PROCURE LOCALLY

Plug

2шт.

46

87034252

GASKET

1шт.

47

87034253

SEAL

, Serial Range: -HAJ106401

1шт.

47

87369069

GASKET

, Start Serial: HAJ106401

1шт.

48

87280279

COVER

1шт.

49

NSS

NOT SOLD SEPARAT

Grommet

1шт.

50

NSS

NOT SOLD SEPARAT

Decal, Nameplate

1шт.

51

87282821

FLOW CONTROL VALVE

Water, Serial Range: -HAJ106401

1шт.

52

4899110

SCREW,Hex Flg, M6 x 1 x 20

1шт.

53

109239C2

CHECK VALVE

2шт.

54

1250522C3

FITTING

2шт.

55

86531126

SENSOR

Temp, Venturi

1шт.
