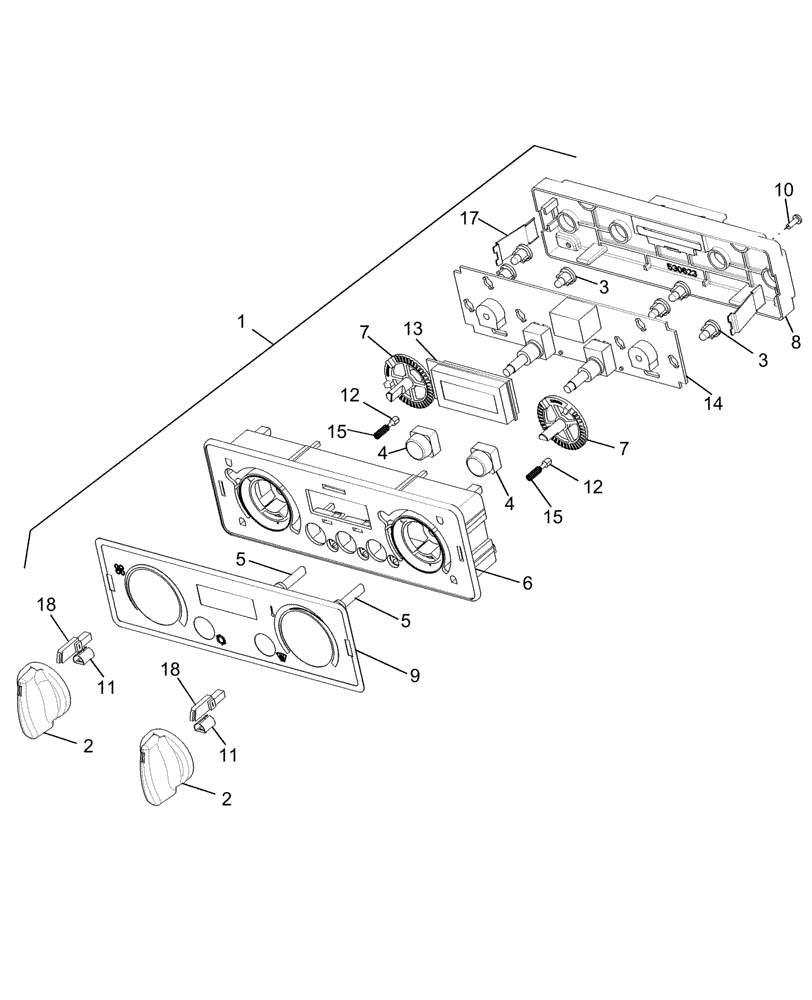

Запчасти Case IH AFX8010 (E.40.D.05[2]) - CONTROLS, ATC E - Body and Structure

1

86996837

CONTROL

Air Conditioning, Years: -01-DEC-04

1шт.

1

87337658

AIR CONTROL

Air Conditioning, Start Year: 01-JAN-05, Start Serial: HAJ105916

1шт.

2

NSS

NOT SOLD SEPARAT

2шт.

3

87107596

BULB

6шт.

4

NSS

NOT SOLD SEPARAT

Cap, Pushbutton

2шт.

5

NSS

NOT SOLD SEPARAT

Light Pipe, Control

2шт.

6

NSS

NOT SOLD SEPARAT

Cover, Control

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Potentiometer

2шт.

8

NSS

NOT SOLD SEPARAT

Housing, Rear

1шт.

9

NSS

NOT SOLD SEPARAT

Overlay, Control

1шт.

10

NSS

NOT SOLD SEPARAT

Screw, Plastic

4шт.

11

NSS

NOT SOLD SEPARAT

Sleeve, Shaft

2шт.

12

NSS

NOT SOLD SEPARAT

Detent

2шт.

13

NSS

NOT SOLD SEPARAT

LCD Assembly

1шт.

14

NSS

NOT SOLD SEPARAT

Light Board Assembly

1шт.

15

NSS

NOT SOLD SEPARAT

Spring, Detent

2шт.

17

NSS

NOT SOLD SEPARAT

Clip, Spring

2шт.

18

NSS

NOT SOLD SEPARAT

Light Pipe, Knob

2шт.
