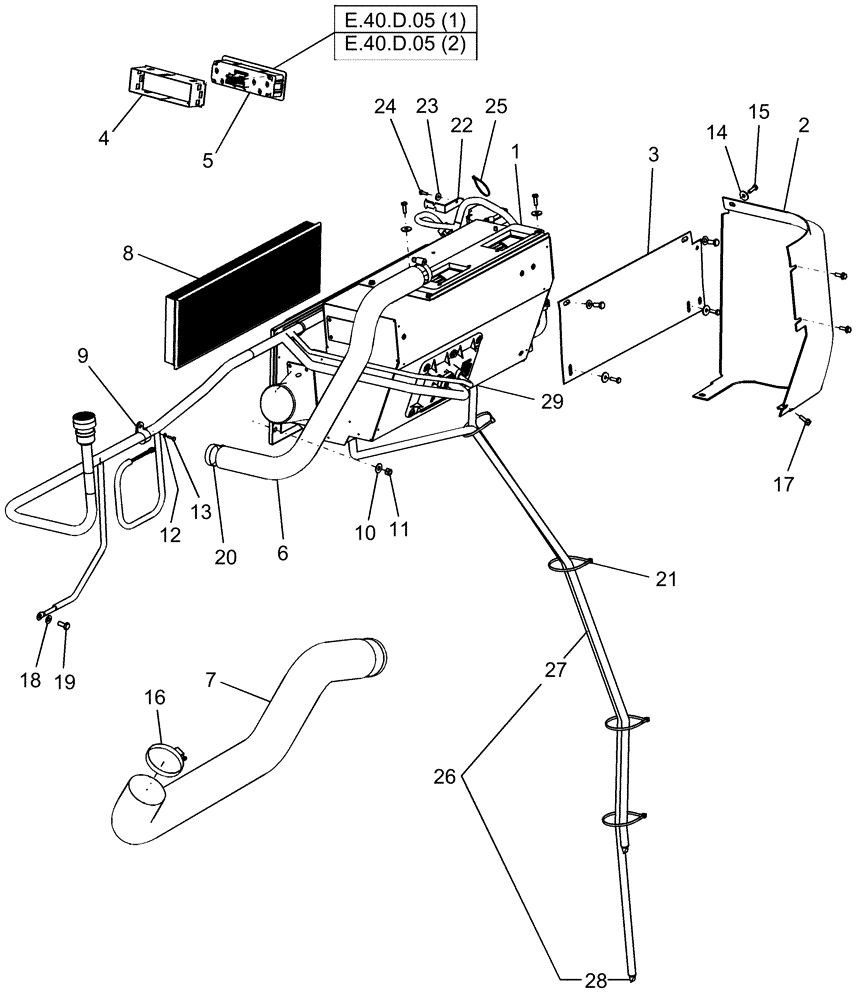

Запчасти Case IH AFX8010 (E.40.D) - HVAC CAB KIT E - Body and Structure

1

NSS

NOT SOLD SEPARAT

ATC - 86996838

1шт.

1

86975154

AIR CONDITIONER

Manual

1шт.

2

84067980

COVER

1шт.

3

84076757

SUPPORT

1шт.

4

84334445

SLEEVE

1шт.

5

86996837

CONTROL

ATC, Years: -31-DEC-04

1шт.

5

87337658

AIR CONTROL

ATC, Start Year: 01-JAN-05, Start Serial: HAJ105916

1шт.

5

86975153

CONTROL

Manual

1шт.

6

86531050

AIR DUCT

A/C Unit To Cab; L = 780mm, I.D. = 50.8mm

1шт.

7

86531048

FLEXIBLE HOSE,74mm ID x 1190mm L

Cab Air Filter to A/C Unit

1шт.

8

84058793

AIR FILTER,510mm L x 174mm W x 37.4mm Thk, Paper

1шт.

9

84818444

CLAMP,22.3mm ID, 6.7mm Bolt Hole, P Type

1шт.

10

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

11

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

12

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

13

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

1шт.

14

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

6шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

16

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

ATC

2шт.

17

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

20

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

21

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP 76 mm

4шт.

22

84431349

BRACKET

1шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

24

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

1шт.

25

86566989

CABLE TIE,208mm L

CABLE STRAP 45 mm

1шт.

26

86976191

FLEXIBLE HOSE

Drain; Includes: Ref.s 27 Thru 29

2шт.

27

198091C1

HOSE,12.95mm ID x 15240mm L

50' Roll; 75" Required

1шт.

Cut to Required Lengths

1шт.

28

109239C2

CHECK VALVE

2шт.

29

1250522C3

FITTING

2шт.
