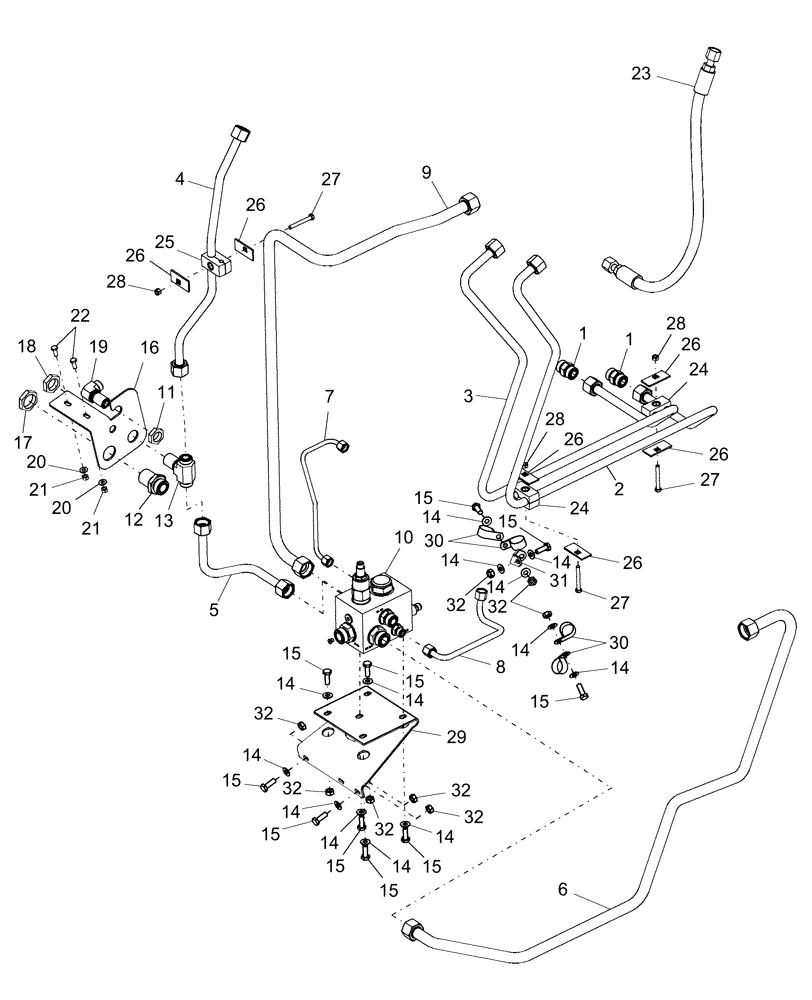

Запчасти Case IH AFX8010 (A.12.A.17[2]) - HYDRAULICS - PTO REGULATOR VALVE, PIN A - Distribution Systems

1

84100407

UNION,1-3/16"-12 ORFS

2шт.

2

86995999

HYD TUBE,0.75" OD

Gear Pump to Fan, Serial Range: -HAJ105757

1шт.

2

87284932

HYD TUBE,0.75" OD

Gear Pump to Fan, Start Serial: HAJ105758

1шт.

3

86995998

HYD TUBE,0.75" OD

Gear Pump to RAS and Spreaders, Serial Range: -HAJ105757

1шт.

3

87284933

HYD TUBE,0.75" OD

Gear Pump to RAS and Spreaders, Start Serial: HAJ105758

1шт.

4

87281693

HYD TUBE,0.75" OD

Lube Supply, Tee to Cross

1шт.

5

87281692

HYD TUBE,0.75" OD

Lube Regulator, Supply to Valve

1шт.

6

87106669

HYD TUBE,1" OD

Charge, from Valve, Years: -15-AUG-03

1шт.

7

87106673

HYD TUBE,0.375" OD

Drain, from PTO Regulator Valve

1шт.

8

86995886

HYD TUBE,0.50" OD

Lube Supply, to Rotor

1шт.

9

86995856

HYD TUBE,1" OD

PTO Regulator Valve Bypass

1шт.

10

87281628

HYDRAULIC VALVE

Hydraulic PTO/ Charge Regulator, Years: -15-AUG-03

1шт.

10

87282402

HYDRAULIC VALVE

, Years: 15-AUG-03-09-FEB-04, Serial Range: -HAJ100949

1шт.

10

87283360

HYDRAULIC VALVE

, Start Year: 09-FEB-04, Start Serial: HAJ100950

1шт.

11

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

12

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

1шт.

13

86900241

TEE,1-7/16"-12 ORFS, Bulkhead

1шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

16

87001274

BRACKET

Bulkhead

1шт.

17

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

1шт.

18

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

1шт.

19

87028944

ELBOW,90 Degree, 1"-14 ORFS, Bulkhead

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

21

9706690

NUT,M8 x 1.25, Cl 8

2шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

87109746

FLEXIBLE HOSE

Cleaning Fan / Regulator Return

1шт.

24

87000140

CLAMP,Tube, 19.05mm

2шт.

25

87000154

CLAMP

1шт.

26

87000230

PLATE

Hose Clamp

6шт.

27

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

3шт.

28

86528579

NUT,M8 x 1.25

3шт.

29

87284344

BRACKET

Bracket

1шт.

30

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

31

87314169

BRACKET

1шт.

32

100016

NUT,M10 x 1.5, Cl 8

8шт.
