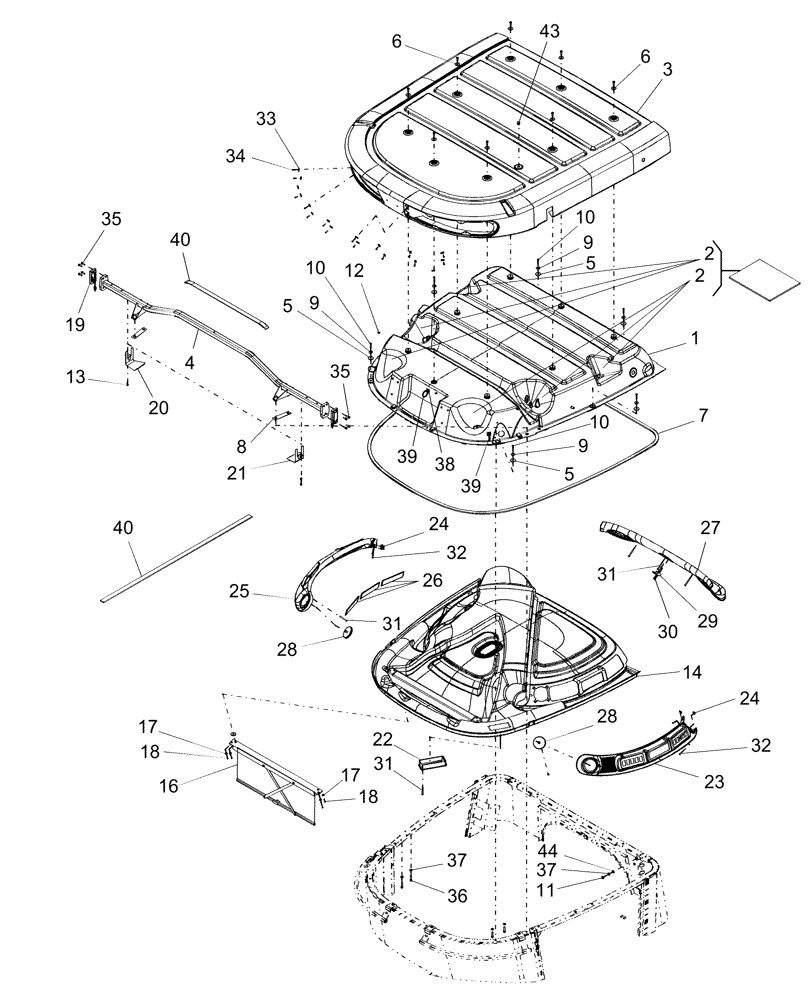

Запчасти Case IH AFX8010 (E.34.A.78[6]) - ROOF E - Body and Structure

1

87105766

ROOF

Inner

1шт.

2

87000601

SEAL PROTECTION

6шт.

3

87105772

ROOF

Outer

1шт.

4

87107127

SUPPORT

, Years: -17-OCT-05

1шт.

4

87326681

SUPPORT

, Start Year: 17-OCT-05

1шт.

5

87000585

WASHER,8mm ID x 35mm OD x 3mm Thk

14шт.

6

86900237

WASHER,0.41" ID x 1.25" OD x 0.06" Thk

8шт.

7

86996707

SEAL

1шт.

8

87105773

SEAL PROTECTION

2шт.

9

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6шт.

10

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

6шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

13

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

14

86995949

ROOF LINING

1шт.

16

82004428

SUN CURTAIN

Visor, Deluxe

1шт.

17

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

4шт.

18

86050251

SCREW,Phillips Drive, Pan HD, M4 x 25mm, Cl 4.8

4шт.

19

84059856

WIRE CONNECTOR

2шт.

20

87109881

BRACKET

RH

1шт.

21

87109880

BRACKET

LH

1шт.

22

87281670

VENT

Louver

8шт.

23

86995945

PANEL

LH

1шт.

24

86014250

SPRING NUT,M6 x 1.0

4шт.

25

86995946

PANEL

RH

1шт.

26

84439017

COVER

BSN -

3шт.

26

87105189

COVER

ASN -

3шт.

27

86995944

PANEL

Rear

1шт.

28

84059804

GRILLE

2шт.

29

86520824

HOOK

1шт.

30

84058989

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

2шт.

31

84439080

BOLT,Phillips Drive, Flat HD, M6 x 1 x 57mm, Cl 4.8

7шт.

32

86502680

SCREW,Phil Oval Hd, Csk, M6 x 20mm, Cl 4.8, Full Thd

4шт.

33

86900239

SPRING NUT,U, #10 - 24

Speed

16шт.

34

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

16шт.

35

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

8шт.

36

84000811

SCREW,M8 x 35mm, Cl 8.8

CL 8.8

4шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

38

87280913

RUBBER PAD

Mounting

4шт.

39

86566989

CABLE TIE,208mm L

CABLE STRAP

4шт.

40

87282566

SEALING STRIP

Seal

1шт.

41

86628133

EMBLEM

CASE IH - Not Shown

1шт.

41

238638A1

EMBLEM

AFS - Not Shown

1шт.

42

86628134

PUSH-ON NUT

Not Shown

2шт.

43

87510719

PLUG

Cap

1шт.

44

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.
