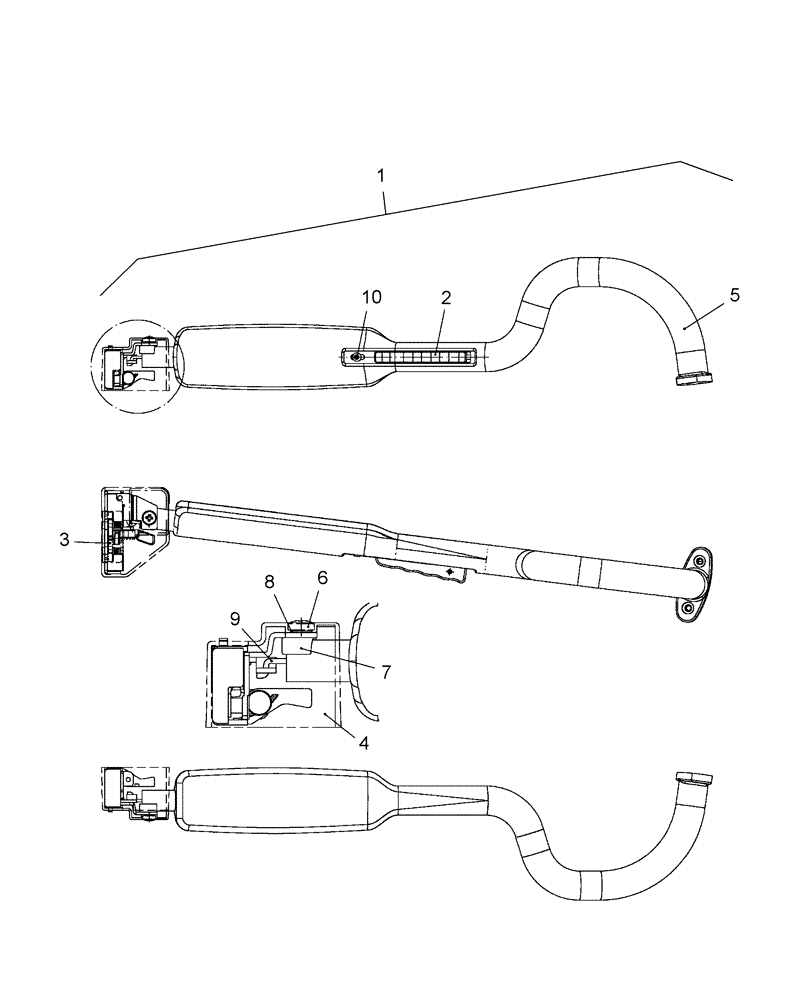

Запчасти Case IH AFX8010 (E.34.A.76[3]) - HANDLE ASSEMBLY, DOOR E - Body and Structure

1

84067947

DOOR HANDLE

LH

1шт.

2

84320301

HANDLE

Latch

1шт.

3

86520782

LATCH

1шт.

4

84067944

COVER

Latch

1шт.

5

86521008

HANDLE

Grab

1шт.

6

44317

SCREW,Cross Pan Hd, M8 x 16

1шт.

7

84320299

CAP COVER

1шт.

8

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

9

84320300

CONNECTING ROD

Rod, Connecting

1шт.

10

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

1шт.
