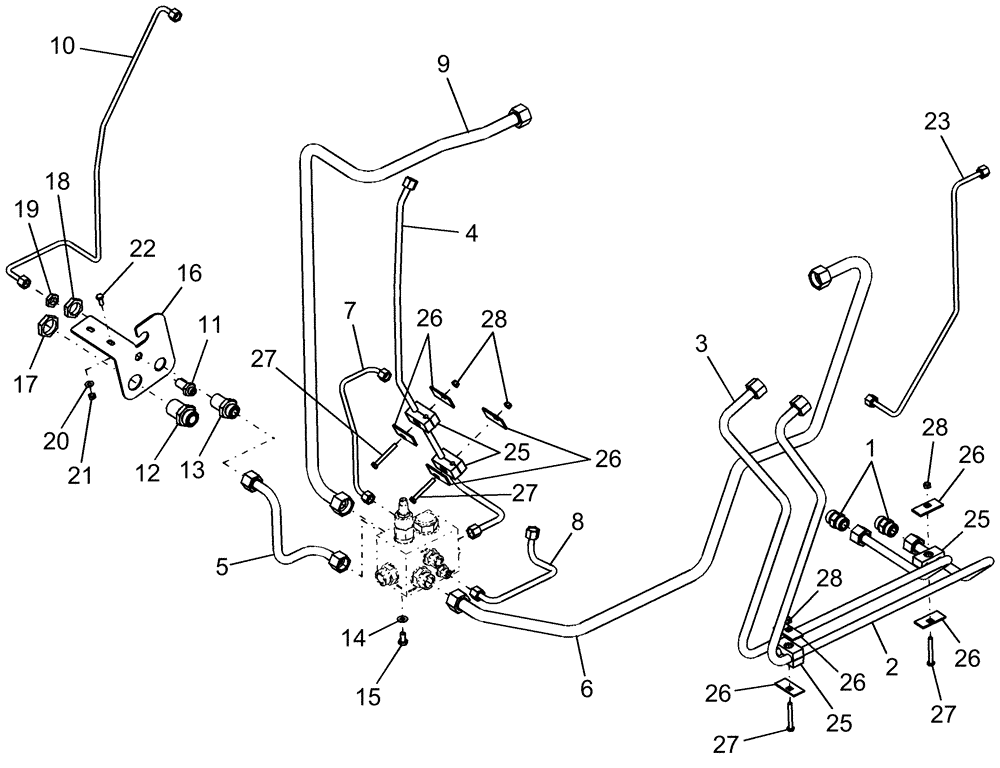

Запчасти Case IH AFX8010 (A.12.A.17[1]) - HYDRAULICS - PTO REGULATOR VALVE A - Distribution Systems

1

84100407

UNION,1-3/16"-12 ORFS

2шт.

2

86995999

HYD TUBE,0.75" OD

Gear Pump to Fan

1шт.

3

86995998

HYD TUBE,0.75" OD

Gear Pump to RAS and Spreaders

1шт.

4

86998287

HYD TUBE,0.50" OD

Lube, from Valve to UNL Valve

1шт.

5

86995880

HYD TUBE,0.75" OD

Lube Supply to PTO Valve

1шт.

6

87106669

HYD TUBE,1" OD

Charge from Valve, Years: -15-AUG-03

1шт.

7

87106673

HYD TUBE,0.375" OD

Drain from PTO Regulator Valve

1шт.

8

86995886

HYD TUBE,0.50" OD

Lube Supply to Rotor Clutch

1шт.

9

86995856

HYD TUBE,1" OD

PTO Regulator Valve Bypass

1шт.

10

86996001

HYD TUBE,0.375" OD

Park Brake from Valve

1шт.

11

86978770

UNION,11/16"-6, ORFS

1шт.

12

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

1шт.

13

86639064

UNION,1-3/16"-12 ORFS, Bulkhead

1шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

16

87001274

BRACKET

1шт.

17

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

Tube OD = 1"

1шт.

18

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

Tube OD = 3/4"

1шт.

19

87010704

BHD LOCK NUT,11/16"-16

Tube OD = 3/8"

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

21

9706690

NUT,M8 x 1.25, Cl 8

2шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

87000777

HYD TUBE,0.375" OD

Cleaning Fan Drain

1шт.

24

87000140

CLAMP,Tube, 19.05mm

Tube

2шт.

25

87105732

CLAMP

Tube

2шт.

26

87000230

PLATE

Hose Clamp

8шт.

27

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

4шт.

28

832-46408

NUT,M8 x 1.25, Cl 8

4шт.
