(E.34.A.72[3]) - PLATFORM, RAILING NA 3.3 - P.I.N. HAJ105201 & AFTER

Запчасти Case IH AFX8010 (E.34.A.72[3]) - PLATFORM, RAILING NA 3.3 - P.I.N. HAJ105201 & AFTER E - Body and Structure

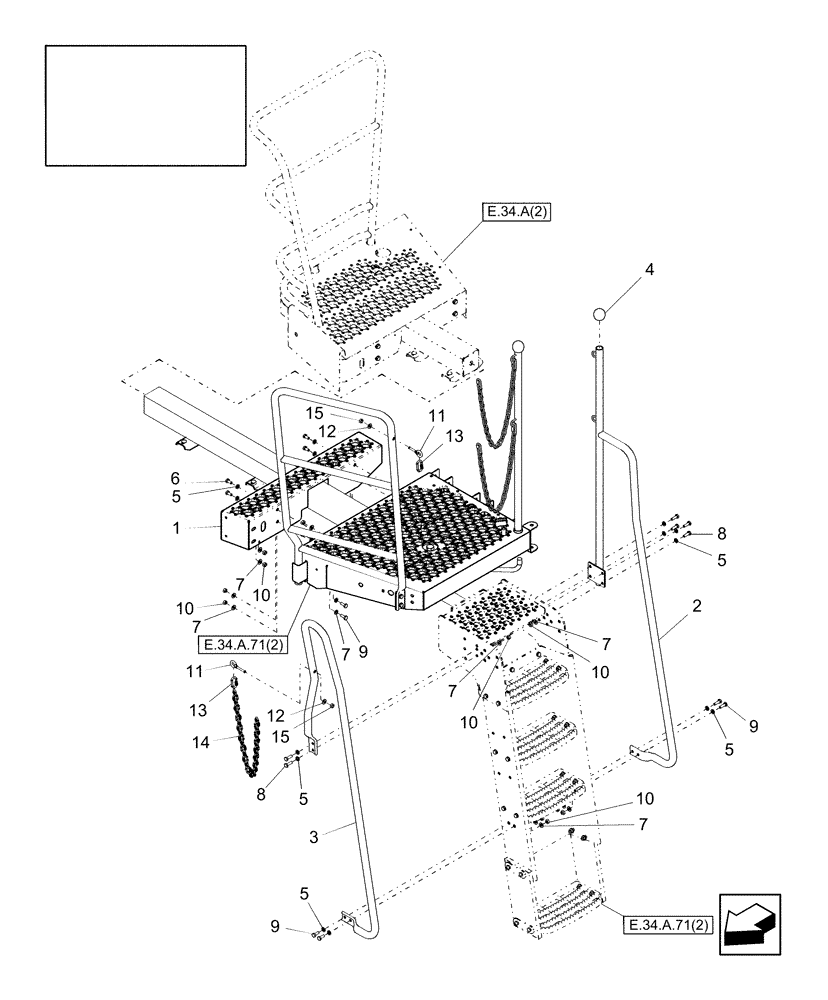

Схема запчастей Case IH AFX8010 - (E.34.A.72[3]) - PLATFORM, RAILING NA 3.3 - P.I.N. HAJ105201 & AFTER E - Body and Structure
7
7
9
2
5
10
5
9
e.34.a(2)
7
4
12
7
10
15
10
14
8
5
13
5
1
7
8
9
6
7
e.34.a.71(2)
e.34.a.71(2)
13
11
10
11
12
10
3
5
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87280955

PLATFORM

150, Extension

1шт.

2

87109386

HANDRAIL

1шт.

3

87284635

HANDRAIL

LH

1шт.

4

87109879

KNOB

Ladder Latch

1шт.

5

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

18шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

10

100016

NUT,M10 x 1.5, Cl 8

18шт.

11

87510645

EYEBOLT,M6

(x 1 x 33), Campaign Item

2шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

Campaign Item

2шт.

13

87308550

NUT,M6

Dome, Campaign Item

2шт.

14

326376A2

LINK

Chain, Campaign Item

2шт.

15

87109887

CHAIN,807.32mm L

Ladder Gate, Campaign Item

1шт.
