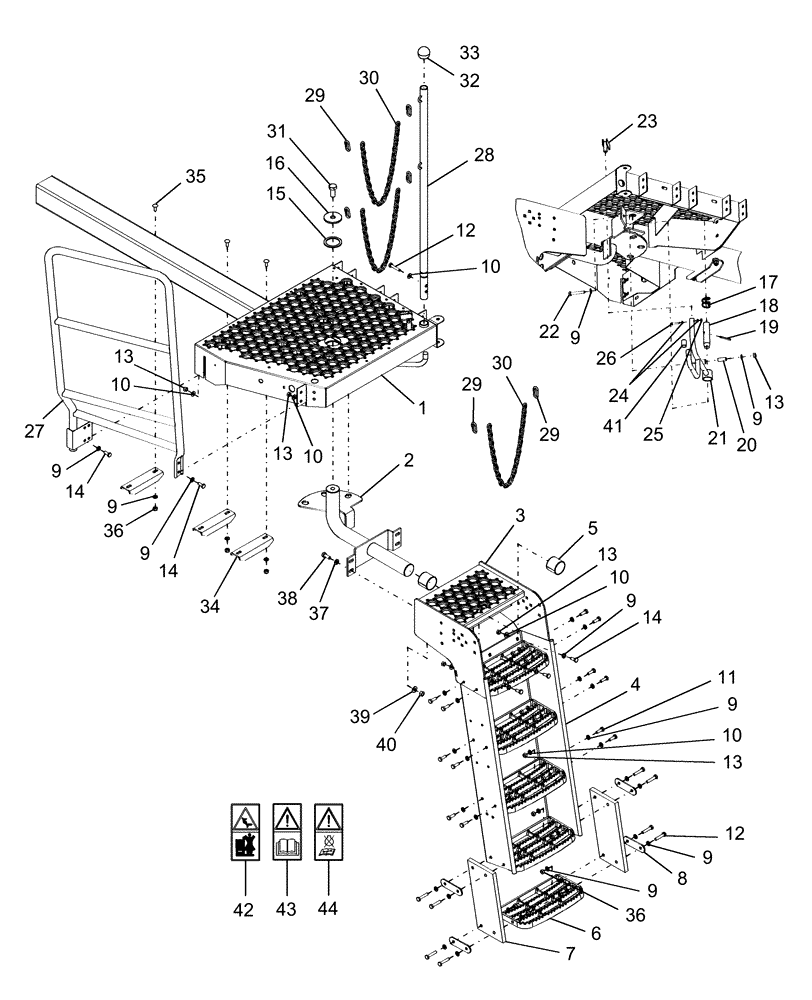

Запчасти Case IH AFX8010 (E.34.A.71[2]) - USER PLATFORM & LADDER - P.I.N. HAJ105201 & AFTER E - Body and Structure

1

87109254

PLATFORM

1шт.

2

87283997

ARM

1шт.

3

87109256

LADDER

1шт.

3

87283973

LADDER

, Start Year: 04-OCT-04

1шт.

4

87510520

LADDER

1шт.

For NA Only

1шт.

4

87284036

LADDER

Includes Ref. 42, 43, & 44

1шт.

For EU Only

1шт.

5

NS

NOT SERVICED

Bushing - 87109507

2шт.

6

87301185

STEP

Replaced 86642692

5шт.

7

87109724

HANGER

Step, Rubber

2шт.

7

87284743

, Start Year: 04-OCT-04

2шт.

8

87281588

PLATE

4шт.

9

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

12шт.

12

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

10шт.

13

100016

NUT,M10 x 1.5, Cl 8

1шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

7шт.

15

87281392

THRUST WASHER,59.2mm ID x 76.2mm OD x 3.17mm Thk

1шт.

16

86637951

WASHER,0.81" ID x 3" OD x 0.24" Thk

1шт.

17

87109472

SPRING,40.49mm Free Length

1шт.

18

87106596

PIN,25.4mm OD x 114mm OAL

1шт.

19

87020818

LOCK PIN,1/4" OD x 2" OAL, Slotted

1шт.

20

87108760

BUSHING,10.4mm ID x 14.4mm OD x 34mm OAL

1шт.

21

87109490

HANDLE

Includes Ref. 41

1шт.

22

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

23

87109799

PEDAL

Foot Release

1шт.

24

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

25

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

26

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

27

87109516

HANDRAIL

LH, Front

1шт.

28

87109394

GRAB RAIL

1шт.

29

87107072

CHAIN LINK,44.299mm Pitch

Chain

1шт.

30

87109887

CHAIN,807.32mm L

1шт.

31

86624002

BOLT,Hex, M20 x 40mm, Cl 8.8

1шт.

32

349014A1

KNOB

1шт.

33

PL

PROCURE LOCALLY

Adhesive, Loctite

1шт.

34

87281554

PLATE

3шт.

35

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

36

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

37

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

38

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

39

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

40

9706685

NUT,M12 x 1.75, Cl 8

4шт.

41

87109878

CAP,17.5mm ID x 25.4mm OAL

1шт.

42

84004732

CAUTION DECAL

Do Not Ride on Platform or Ladder

1шт.

43

84004731

WARNING DECAL

Read Operator's Manual Before Operating

1шт.

44

84004733

DECAL

Stop Engine Before Servicing

1шт.
