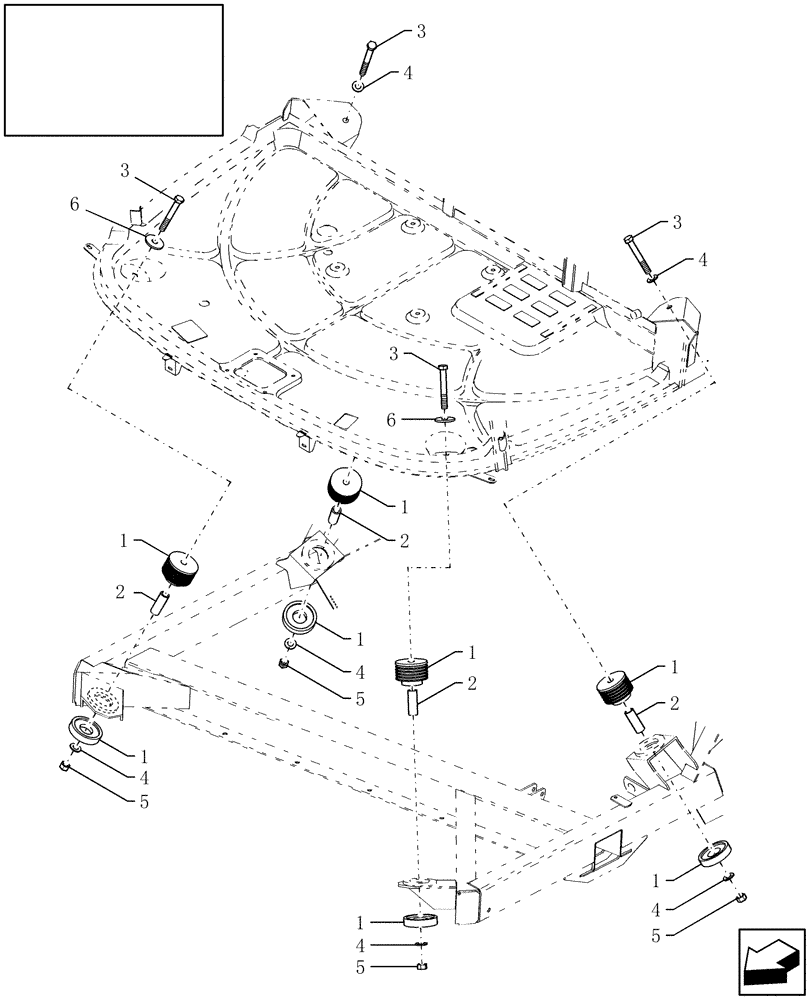

Запчасти Case IH AFX8010 (E.34.A.68[1]) - CAB MOUNTING, PRIOR TO PIN HAJ105701 E - Body and Structure

1

84807139

ISOLATOR

4шт.

2

84807136

SPACER

4шт.

3

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

4шт.

4

80378246

WASHER

M16

6шт.

5

86000441

NUT,M16 x 2.0, Cl 8

4шт.

6

337522

WASHER,17.5mm ID x 56mm OD x 5mm Thk

2шт.
