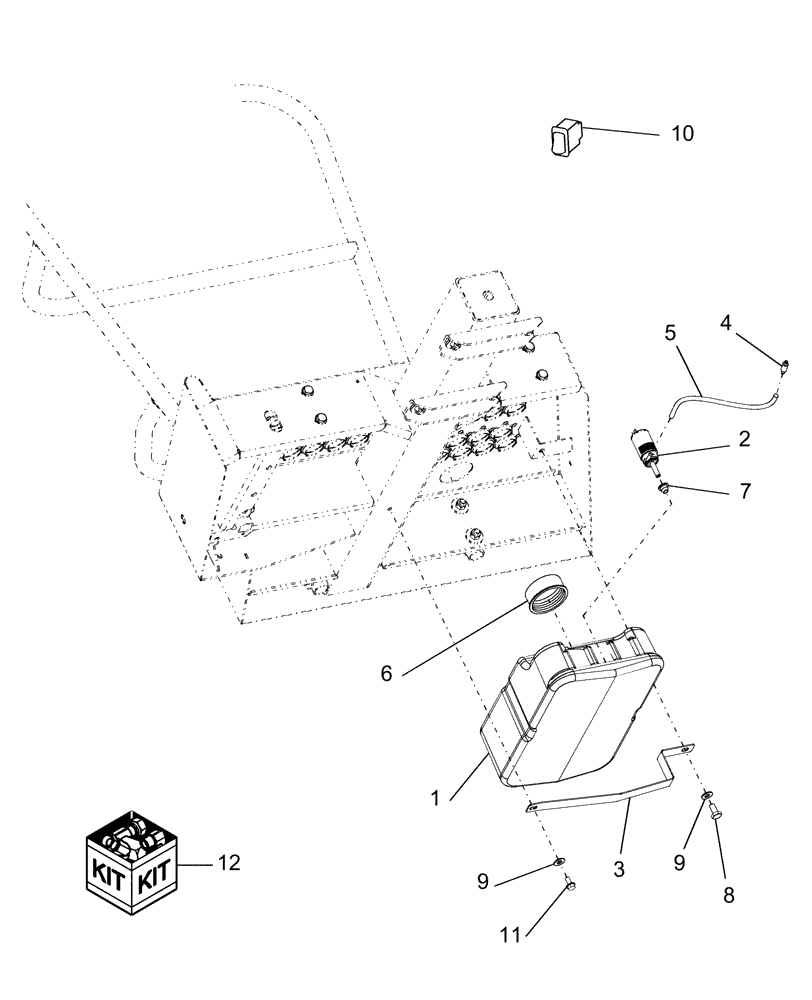

Запчасти Case IH AFX8010 (E.34.A.66.01[01]) - PUMP & RESERVOIR, WINDSHIELD WASHER - PRIOR TO PIN HAJ105701 E - Body and Structure

1

84067920

RESERVOIR, WINDSHIEL

Includes Ref. 2, 6 & 7

1шт.

2

84037533

PUMP

Washer Fluid

2шт.

3

87282860

BRACKET

1шт.

4

84037530

VALVE

1шт.

5

87282056

HOSE,3.56mm ID x 15240mm L

Windshield Washer Res.

1шт.

6

84073021

CAP

1шт.

7

84037531

SEAL

1шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

10

84320245

WINDSHIELD WASHER SW

In Cab, Washer Fluid

1шт.

11

86978776

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

1шт.

12

84083382

DIA KIT, ADD PROD

Includes: Ref.s 1 Thru 11 Plus Contents Of Fig. E.34.A.66

1шт.
