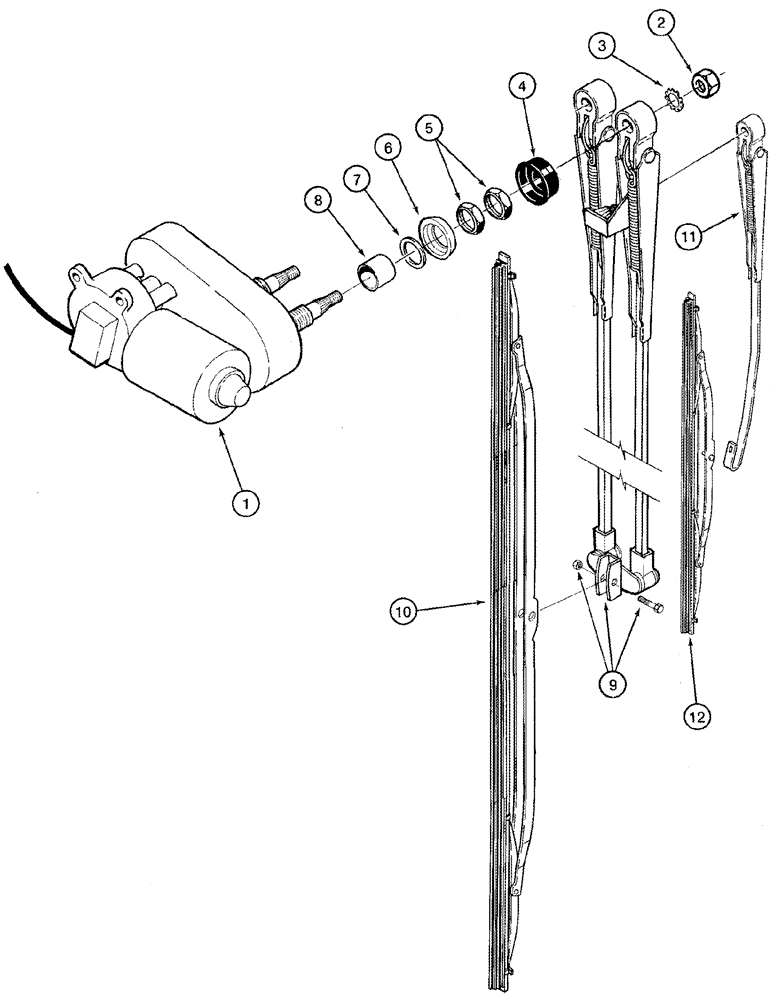

Запчасти Case IH AFX8010 (E.34.A.65[2]) - WINDSHIELD WIPER - DOUBLE BLADE E - Body and Structure

137838A1

WIPER MOTOR

MOTOR, WIPER Includes 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

Motor

1шт.

138013A1

REPAIR KIT

Includes 2 - 7

1шт.

2

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

3

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

4

NSS

NOT SOLD SEPARAT

Cover

2шт.

5

NSS

NOT SOLD SEPARAT

Nut

2шт.

6

NSS

NOT SOLD SEPARAT

Retainer

2шт.

7

NSS

NOT SOLD SEPARAT

Seal

2шт.

8

123936A1

SPACER

2шт.

352976A1

WIPER BLADE

Includes 9 - 12

1шт.

9

123150A1

WIPER ARM

ARM, WIPER 1000 mm

1шт.

10

123151A1

WIPER BLADE

1000 mm (39-3/8 in)

1шт.

11

231284A1

WIPER ARM

ARM, WIPER 176 mm lg

1шт.

12

231283A1

WIPER BLADE

330 mm lg

1шт.
