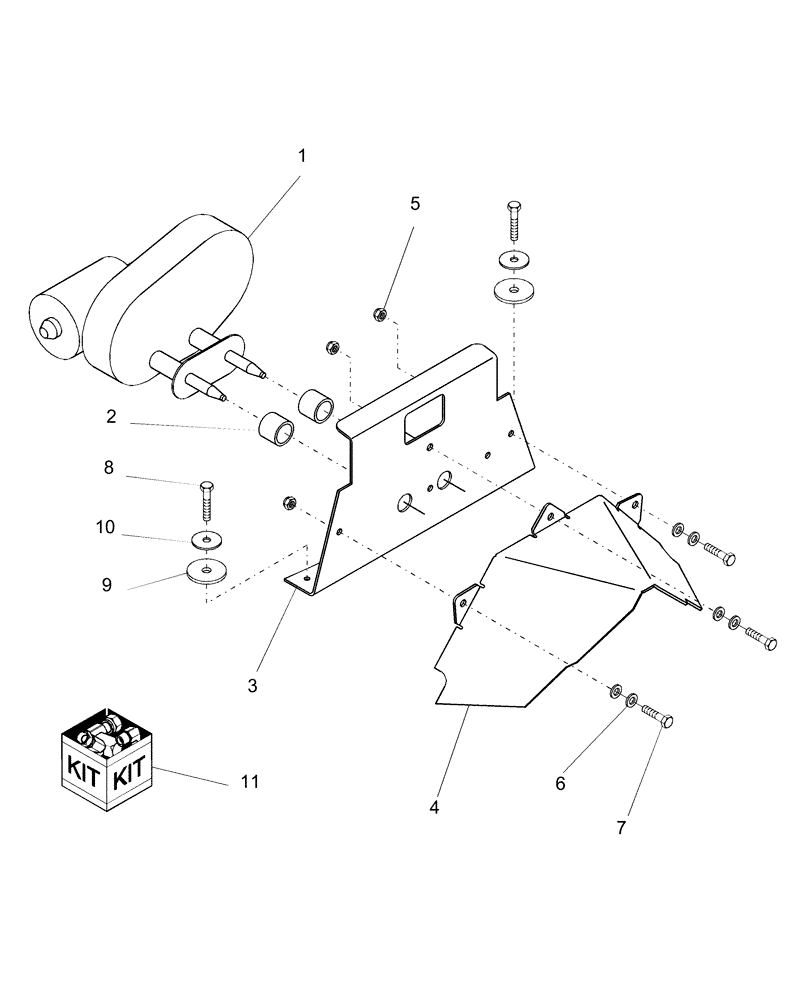

Запчасти Case IH AFX8010 (E.34.A.65[1]) - MOTOR, WINDSHIELD WIPER E - Body and Structure

1

86976257

WIPER MOTOR

1шт.

2

86975131

SPACER

2шт.

3

87282810

BRACKET

Replaces 87105758

1шт.

4

87105760

COVER

1шт.

5

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

3шт.

6

86624181

WASHER,M6

4шт.

7

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

8

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

9

87000585

WASHER,8mm ID x 35mm OD x 3mm Thk

2шт.

10

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

11

138013A1

REPAIR KIT

Wiper Motor Hardware

1шт.
