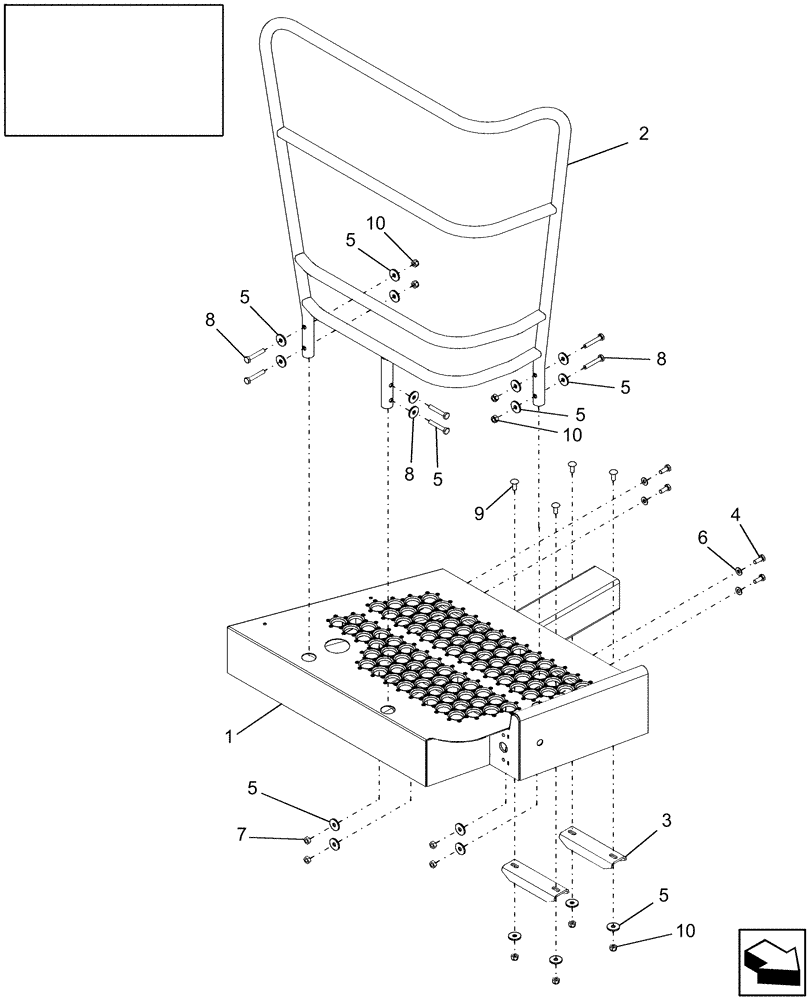

Запчасти Case IH AFX8010 (E.34.A[2]) - USER PLATFORM, R.H., P.I.N. HAJ105101 & AFTER E - Body and Structure

1

87105192

PLATFORM

1шт.

2

87281293

HANDRAIL

1шт.

3

87281554

PLATE

2шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

18шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

7

100016

NUT,M10 x 1.5, Cl 8

4шт.

8

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

6шт.

9

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.
