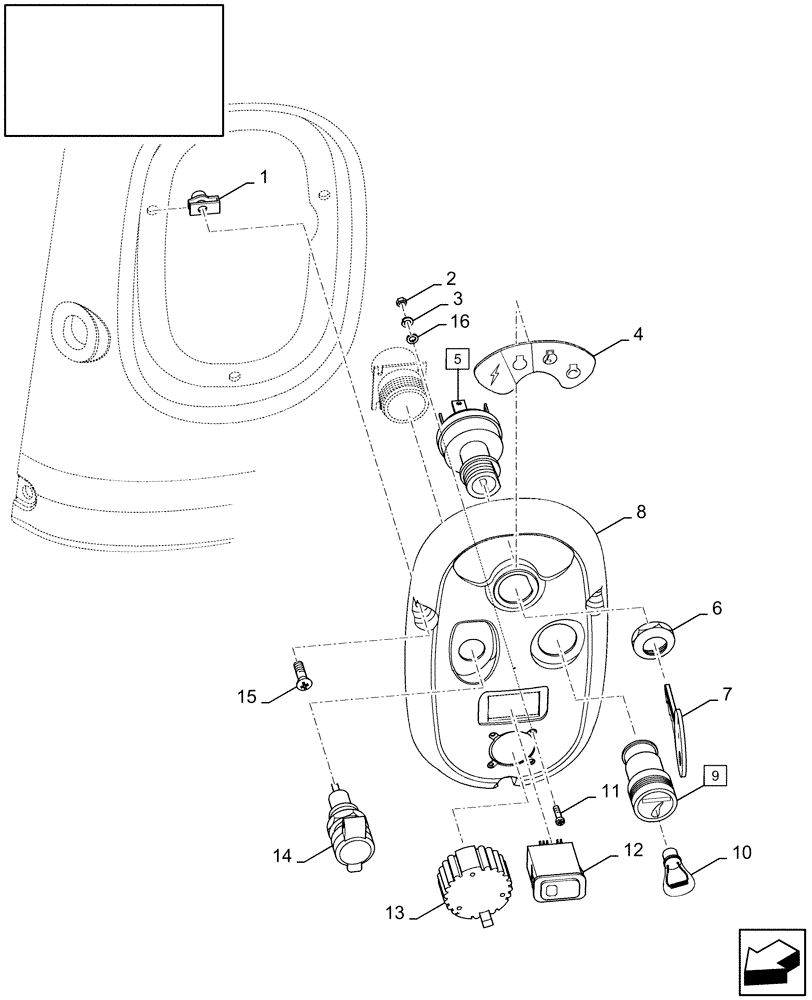

Запчасти Case IH AFX8010 (E.32.A.80.02[3]) - CONSOLE, IGNITION KEY E - Body and Structure

1

86014250

SPRING NUT,M6 x 1.0

3шт.

2

86508812

NUT,M3, Cl 8

4шт.

3

86509827

LOCK WASHER,M3

4шт.

4

86533664

DECAL

, Years: -15-AUG-03

1шт.

4

87023988

DECAL

, Start Year: 15-AUG-03

1шт.

5

86500903

IGNITION SWITCH

(6, 7) - Keys Included, Years: -15-AUG-03

1шт.

5

87281750

IGNITION SWITCH

Keys NOT Included, Start Year: 15-AUG-03

1шт.

6

86502200

NUT

1шт.

7

86502201

IGNITION KEY

Ignition and Door Locking

1шт.

8

86995947

DASHBOARD

1шт.

9

5148077

CIGARETTE LIGHTER

(10)

1шт.

10

5148133

CIGARETTE LIGHTER

Heating

1шт.

11

86511816

SCREW,Pan, M3 x 0.5 x 16mm, Cl 4.8

4шт.

12

84320263

BLANK-OFF PLUG

1шт.

13

84074633

COVER

1шт.

14

82002966

POWER SOCKET,M18 x 1

1шт.

15

86503049

SCREW,Phillips Drive, Oval HD, M6 x 30mm, Cl 4.8

3шт.

16

86639310

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.
