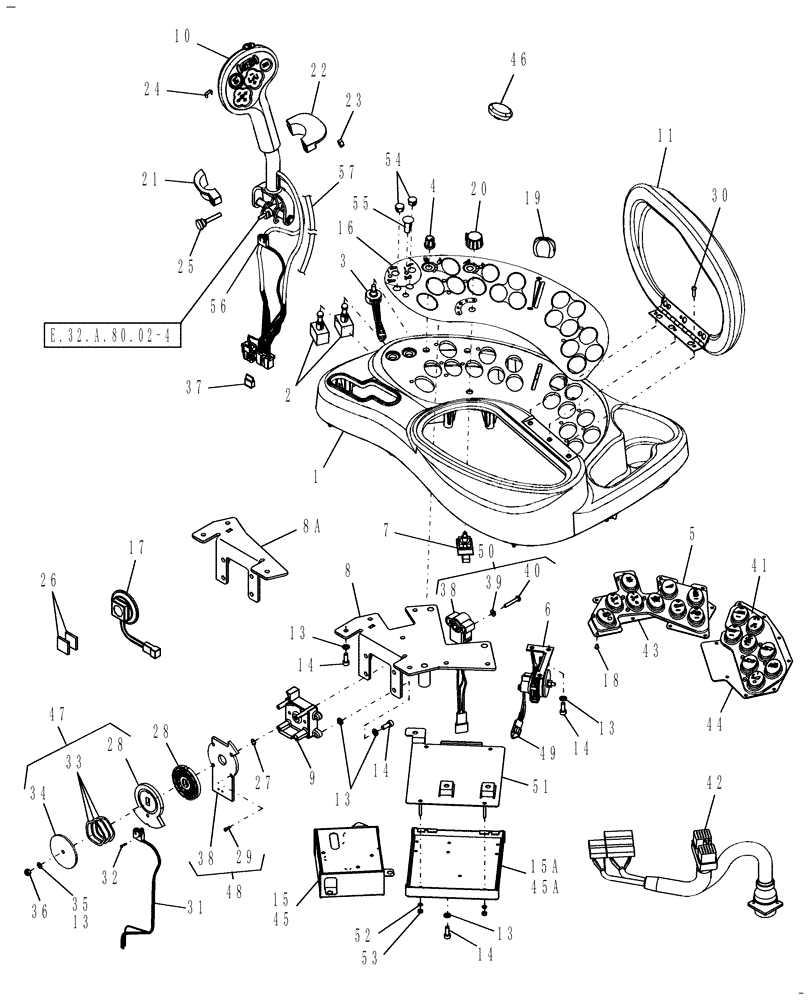

Запчасти Case IH AFX8010 (E.32.A.80.02[2]) - CONSOLE AND CONTROLS, R.H. E - Body and Structure
![Схема запчастей Case IH AFX8010 - (E.32.A.80.02[2]) - CONSOLE AND CONTROLS, R.H. E - Body and Structure](https://partsell.ru/storage/images/caseih/1304708.png)
№
Артикул
Название
Примечание
Количество
1
86998395
CONSOLE
Upper
1шт.
1
87393154
CONSOLE
Upper, Start Year: 01-JAN-07
1шт.
2
86997464
SWITCH
Feeder Mode
2шт.
3
86997465
POTENTIOMETER
1шт.
4
86997466
KNOB
Console Control
1шт.
5
87106744
RUBBER PAD
1шт.
6
86995126
THROTTLE
Control
1шт.
7
86525096
SWITCH ASSY
Gear Shift
1шт.
8
86998256
BRACKET
1шт.
8a
NS
NOT SERVICED
Bracket
1шт.
9
87109134
BASE
Base - Replaced 87107949
1шт.
10
87107952
HANDLE
Requires Ref. 56, Not Included
1шт.
10
87377032
HANDLE
With Edge Guidance / Autopilot Steering; Requires Ref. 56, Not Included, Start Year: 01-JAN-06
1шт.
11
86995956
ARMREST
& Hinge
1шт.
11
87718946
HINGE
Only
1шт.
12
87109133
PLATE
Stop, Friction
1шт.
13
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
1шт.
14
864-6016
HEX SOC SCREW,M6 x 16mm, Cl 8.8
1шт.
15
87107914
MODULE
Monitor, Includes Ref. 45
1шт.
15
87332641
MODULE
Monitor, Includes Ref. 45
1шт.
15
87521010
MODULE
Monitor, Includes Ref. 45, Start Year: 01-JAN-07
1шт.
87521010R
REMAN-MODULE
1шт.
87521010C
CORE-MODULE
Return Number
1шт.
16
87107910
DECAL
, Years: -31-JUL-04
1шт.
16
87282486
DECAL
, Start Year: 31-JUL-04
1шт.
16
87376151
DECAL
, Start Year: 01-JAN-07
1шт.
17
86998255
SPEAKER
1шт.
18
86977872
SELF-TAP SCREW,Cross Pan Hd, #6 x 1/4"
17шт.
19
87105681
KNOB
EH Control Lever
1шт.
20
86622310
KNOB
1шт.
21
86997341
SUPPORT
LH
1шт.
22
86997342
SUPPORT
RH
1шт.
23
7770
NUT,Hex, 1/4 - 20, Cl 5
1шт.
24
86618564
CLIP
1шт.
25
86618563
KNOB
1шт.
27
87107953
WAVE WASHER
Wave
1шт.
28
87107954
PLATE
Stop, Years: -31-JUL-04
1шт.
28
87284703
CAM
Cam, Replaced 87282488, Start Year: 31-JUL-04
1шт.
29
87107955
HEX SOC SCREW,Torx, #4 - 40 x 3/8", Patch
Cap, Socket Hd, #4-40 x 3/8"
4шт.
30
340-1088
SCREW,Cross Pan Hd, #8-32 x 1/2"
3шт.
31
87107957
SWITCH
Neutral
1шт.
32
87107958
SCREW,Pan, #2 - 56 x 0.50mm
Pan Hd, #2-56 x .50
2шт.
33
86975889
WAVE WASHER
Wave
3шт.
34
87107960
PLATE
Stop
1шт.
35
87107961
WASHER
Flat, #10, Years: -31-JUL-04
1шт.
36
87107962
LOCK NUT
M6 x 1
1шт.
37
87107963
LOCK
1шт.
39
87108107
WASHER
#10, Years: -31-JUL-04
2шт.
40
87107965
HOLLOW SCREW
Torx, Pan Hd, #10-32, Years: -31-JUL-04
2шт.
40
87282487
SCREW,Pozidrive, Pan HD, #10 - 32 x 1-1/4"
Torx, #10-32 x 1 1/4", Locking, Start Year: 31-JUL-04
2шт.
41
87106743
RUBBER PAD
, Years: -31-JUL-04
1шт.
41
87282484
RUBBER PAD
Required on all Dual Speed Rear Axle, Start Year: 31-JUL-04
1шт.
42
87107911
WIRE HARNESS
Console, RH
1шт.
42
87376152
WIRE HARNESS
Console, RH, Start Year: 01-JAN-07
1шт.
86981166
RESISTOR
300 Ohm, Incl in 42
1шт.
43
87107915
PRINTED CIRCUIT BOAR
Front
1шт.
43
87107589
KEYBOARD
Includes Ref. 5 & 43
1шт.
44
87107916
PRINTED CIRCUIT BOAR
Rear, Years: -31-JUL-04
1шт.
44
87282485
SWITCH
Panel, Includes Ref. 41 & 44, Start Year: 31-JUL-04
1шт.
45
87107913
SOFTWARE
1шт.
45
87564795
Software, Start Year: 01-JAN-07
1шт.
46
86997284
CAP
Cover
1шт.
47
87284702
KIT
Plates, Friction - Includes Ref. 13, 28, 33, 34 & 36, Replaced 87282658
1шт.
48
87282659
KIT
Stop, Propulsion Handle - Includes Ref. 12 & 29
1шт.
49
87282573
KIT
Potentiometer, Throttle, Includes Potentiometer and Screws
1шт.
50
87282656
KIT
Sensor, Propulsion Handle - Includes Ref. 38 & 40, Years: -04-OCT-04
1шт.
50
87284090
KIT
Sensor, Replaces 87282656 - Includes Ref. 38 & 40, Start Year: 04-OCT-04
1шт.
51
NS
NOT SERVICED
Bracket, Start Year: 01-JAN-07
1шт.
53
100012
NUT,M4 x 0.7, Cl 8
, Start Year: 01-JAN-07
4шт.
54
87327317
PLASTIC PLUG
Touch Screen Display
1шт.
54
87453959
SWITCH
Small Color Display (Escape)
1шт.
54
87453957
SWITCH
Small Color Display (Home)
1шт.
55
87570112
PLUG
Touch Screen Display
1шт.
56
87282657
KIT
Neutral Switch with Wires
1шт.
57
87582997
FOAM INSULATION
1шт.
Выбрано товаров: 79
