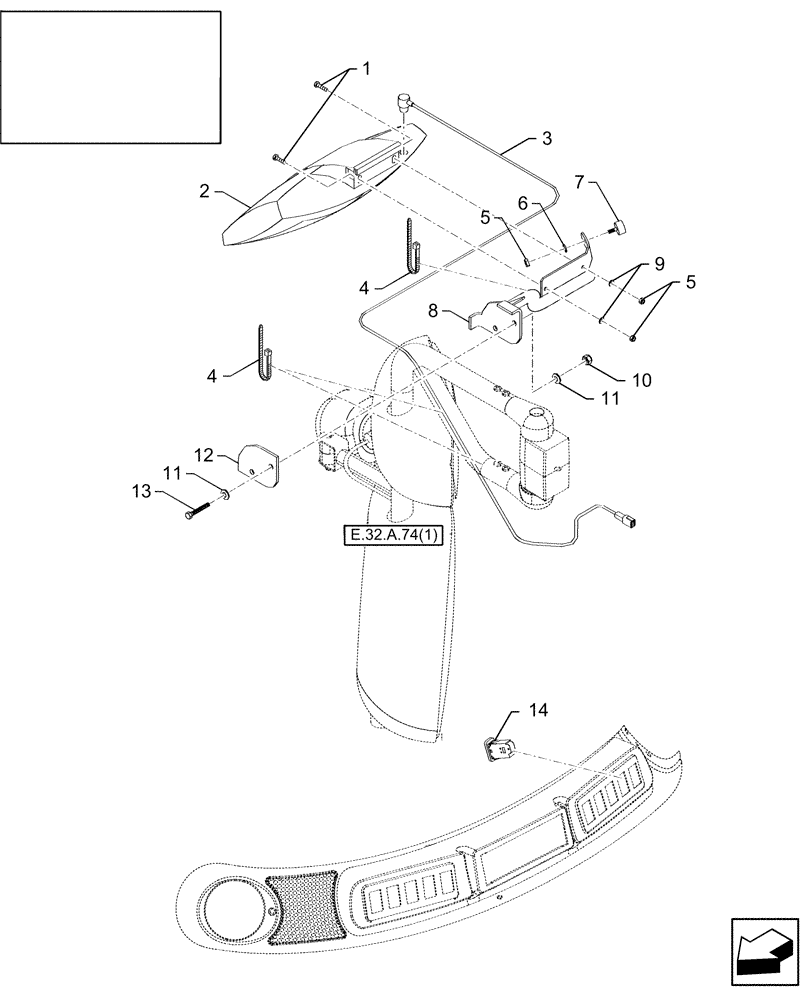

Запчасти Case IH AFX8010 (E.32.A.74[3]) - MIRROR FOR GERMANY E - Body and Structure

1

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

2

84433606

REAR VIEW MIRROR,324mm x 184mm

1шт.

3

84444198

WIRE HARNESS

1шт.

4

86566989

CABLE TIE,208mm L

CABLE STRAP

4шт.

5

353308

NUT,M6 x 1.0, Cl 8

5шт.

6

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

1шт.

7

916454

DAMPER

1шт.

8

84435413

SUPPORT

Arm

1шт.

9

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

2шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

11

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

12

84435412

SUPPORT

1шт.

13

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

14

84320260

SWITCH, MIRROR ADJUS

Mirror Choice

1шт.
