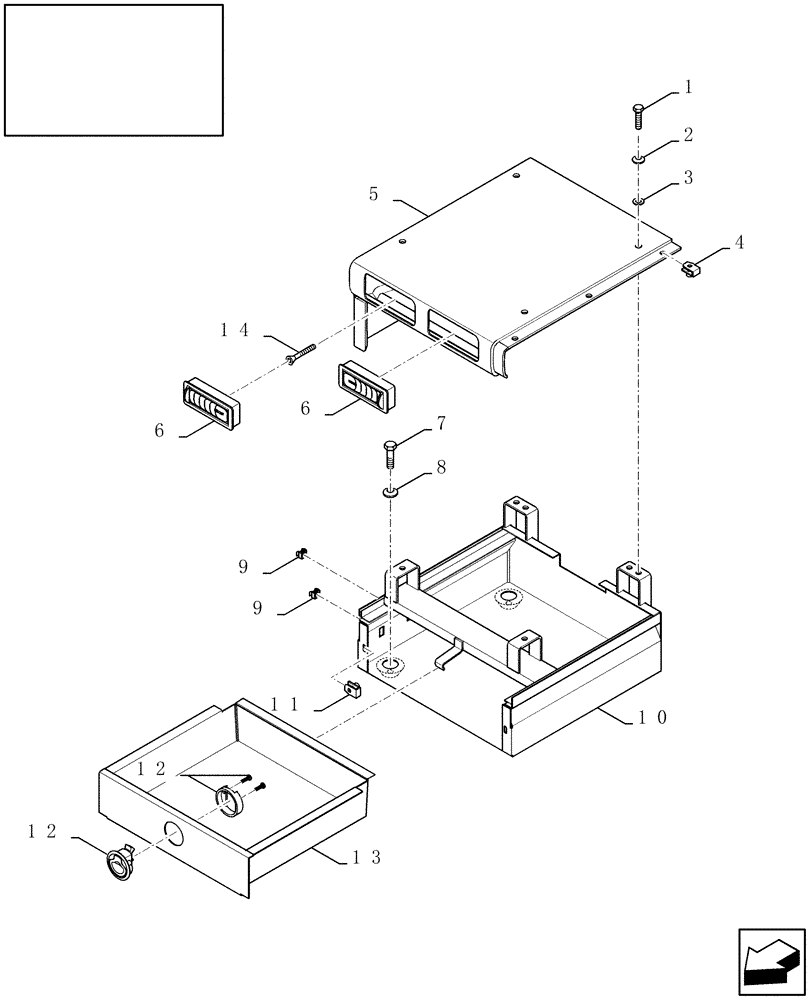

Запчасти Case IH AFX8010 (E.32.A.70[6]) - SUPPORT, SEAT - PRIOR TO P.I.N. HAJ105701 E - Body and Structure

1

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

4

86014250

SPRING NUT,M6 x 1.0

3шт.

5

86995760

COVER

1шт.

6

84059873

DIFFUSER

2шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

8

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

9

84432090

NUT,M6

2шт.

10

84076824

SUPPORT

1шт.

11

9628100

NUT,M4 x 0.7

2шт.

12

84061285

LOCK

1шт.

13

84076843

BOX

Drawer

1шт.

14

9844205

SCREW,Phillips Drive, Oval HD, M4 x 14mm, Cl 4.8

1шт.
