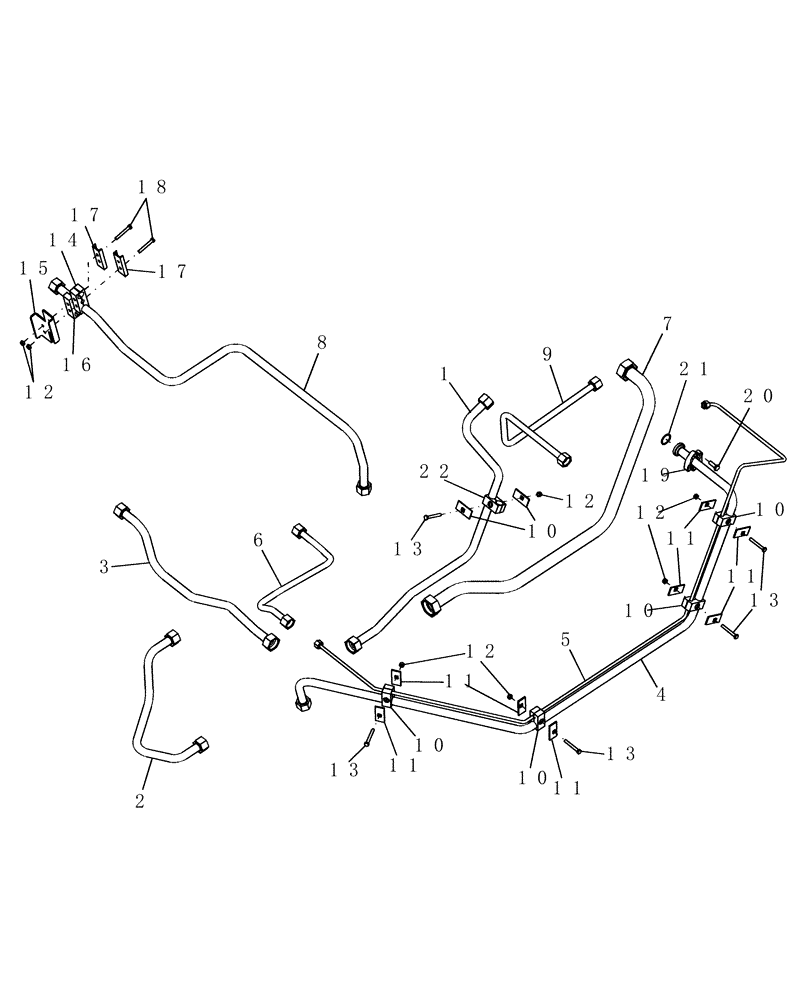

Запчасти Case IH AFX8010 (A.10.A.36[2]) - HYDRAULIC LINES A - Distribution Systems

1

87109045

HYD TUBE,1" OD

Charge Pump to Filter

1шт.

2

87109046

HYD TUBE,1" OD

Charge Pump from Filter

1шт.

3

86996178

HYD TUBE,1" OD

Gear Flow to Filter

1шт.

4

87105738

HYD TUBE,1" OD

PFC Pump to Main Valve

1шт.

5

87105739

HYD TUBE,0.375" OD

Load Sense to PFC Pump

1шт.

6

87109047

HYD TUBE,0.75" OD

Charge Bypass, Serial Range: -HAJ105757

1шт.

6

9847689

CAP,1-3/16" - 12 ORFS

, Start Serial: HAJ105758

2шт.

7

87106605

HYD TUBE,1.50" OD

Filter to PFC Pump

1шт.

8

87105709

HYD TUBE,1" OD

Hydro Cooler Inlet

1шт.

9

87000881

HYD TUBE,20 mm OD x 394, 296.1 mm L

Spreader Valve Pressure

1шт.

10

87000142

CLAMP,2 Hoses

Hydraulic Tube

4шт.

11

87000230

PLATE

Hose Clamp

10шт.

12

832-46408

NUT,M8 x 1.25, Cl 8

9шт.

13

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

5шт.

14

86999893

CLAMP

Hydraulic Tube

1шт.

15

87107783

BRACKET

Hydraulic Clamp

1шт.

16

87000734

CLAMP

Hydraulic Tube

1шт.

17

87000242

CHANNEL

Clamp Back-Up

2шт.

18

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

19

86980728

COLLAR CLAMP

Split Flange

2шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

21

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

22

87000147

CLAMP

Hydraulic Tube

1шт.
