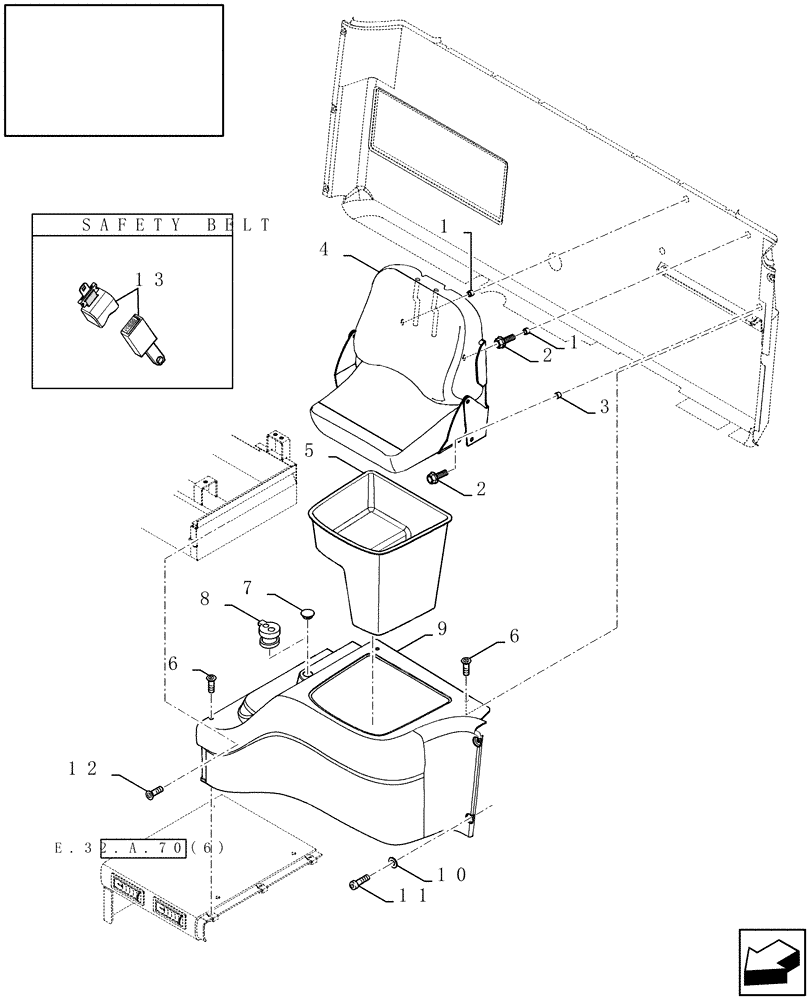

Запчасти Case IH AFX8010 (E.32.A.70[2]) - SEAT, INSTRUCTIONAL E - Body and Structure

1

84075475

BUSHING

2шт.

2

86511480

BOLT,M8 x 1.25 x 38.1mm

4шт.

3

84075476

BUSHING

2шт.

4

86995156

SEAT ASSY.

1шт.

5

84067905

BOX

1шт.

6

86502680

SCREW,Phil Oval Hd, Csk, M6 x 20mm, Cl 4.8, Full Thd

5шт.

7

84067984

PLUG

1шт.

8

84320279

CIGARETTE LIGHTER

1шт.

9

86995759

COVER

1шт.

10

84072877

WASHER,6.6mm ID x 22mm OD x 2mm Thk

2шт.

11

84007540

SCREW,Pozidrive, Pan HD, M6 x 25mm, Cl 4.8

2шт.

12

9844205

SCREW,Phillips Drive, Oval HD, M4 x 14mm, Cl 4.8

1шт.

13

84081010

SEAT BELT

1шт.
