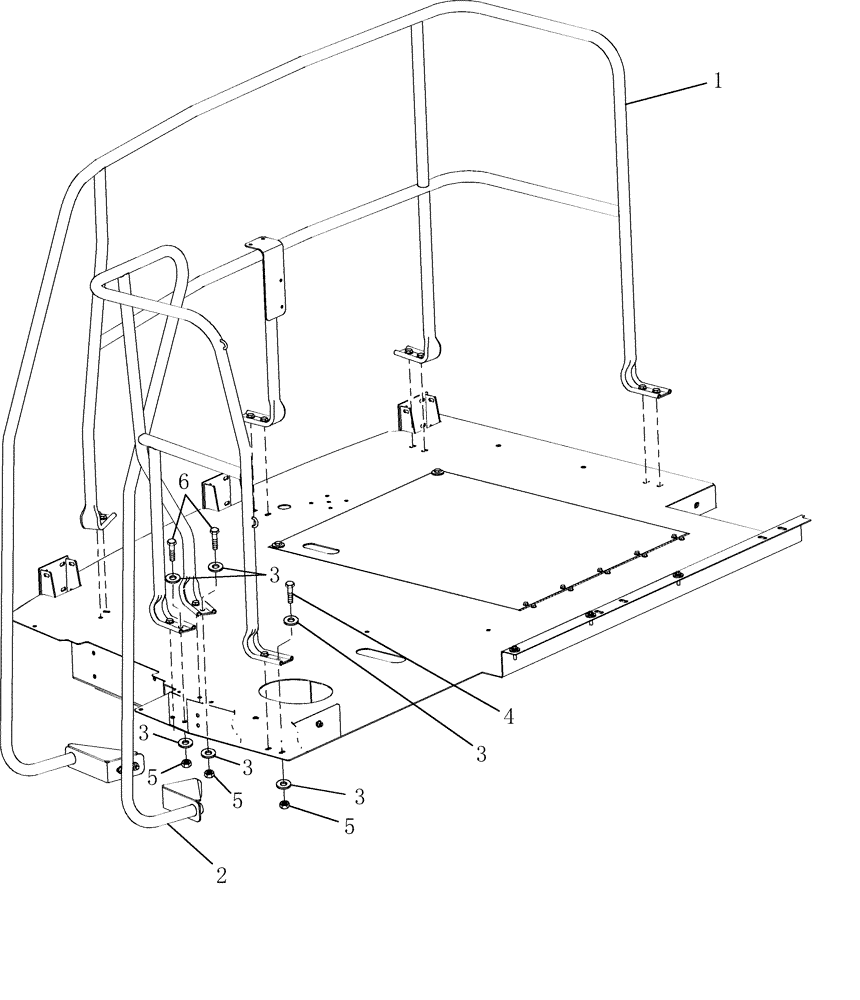

Запчасти Case IH AFX8010 (E.30.A.72[5]) - REAR DECK HANDRAILS E - Body and Structure

1

87106993

HANDRAIL

Rear

1шт.

2

87107002

HANDRAIL

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

36шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

14шт.

5

100016

NUT,M10 x 1.5, Cl 8

18шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.
