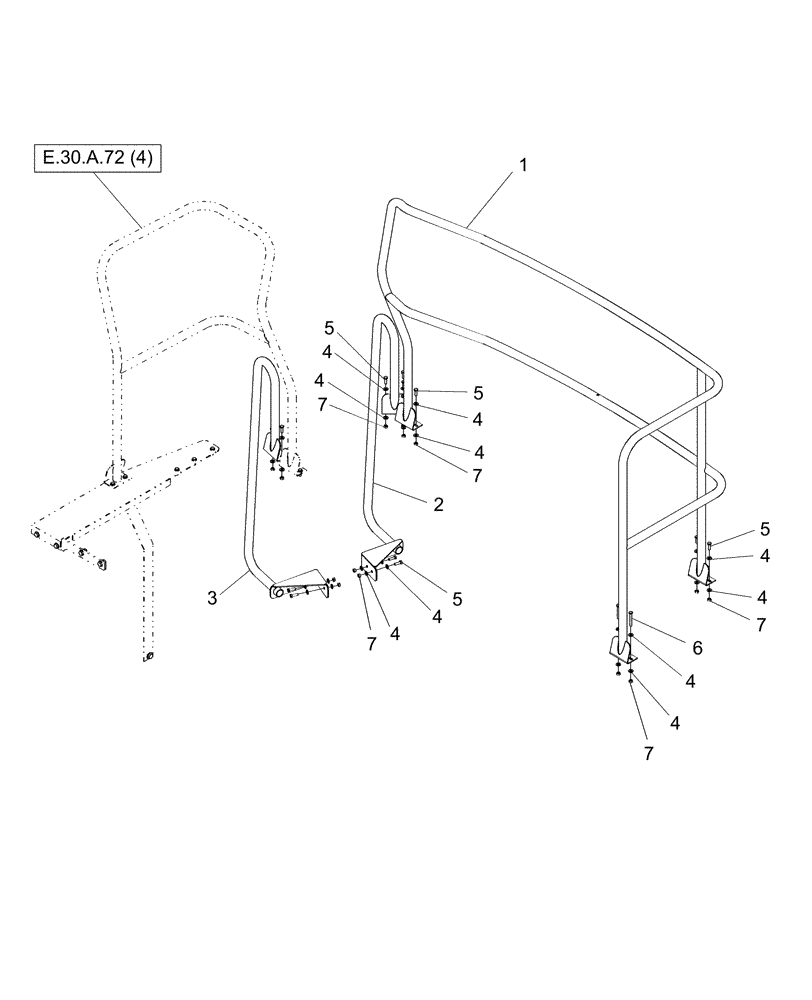

Запчасти Case IH AFX8010 (E.30.A.72[3]) - HANDRAILS, REAR DECK E - Body and Structure

1

86976712

TUBE

Rear

1шт.

2

86976785

HANDRAIL

1шт.

3

86976783

HANDRAIL

1шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

6

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

7

9706690

NUT,M8 x 1.25, Cl 8

1шт.
