(E.30.A.72[2]) - PLATFORM AND HANDRAILS, REAR - PRIOR TO P.I.N. HAJ105101

Запчасти Case IH AFX8010 (E.30.A.72[2]) - PLATFORM AND HANDRAILS, REAR - PRIOR TO P.I.N. HAJ105101 E - Body and Structure

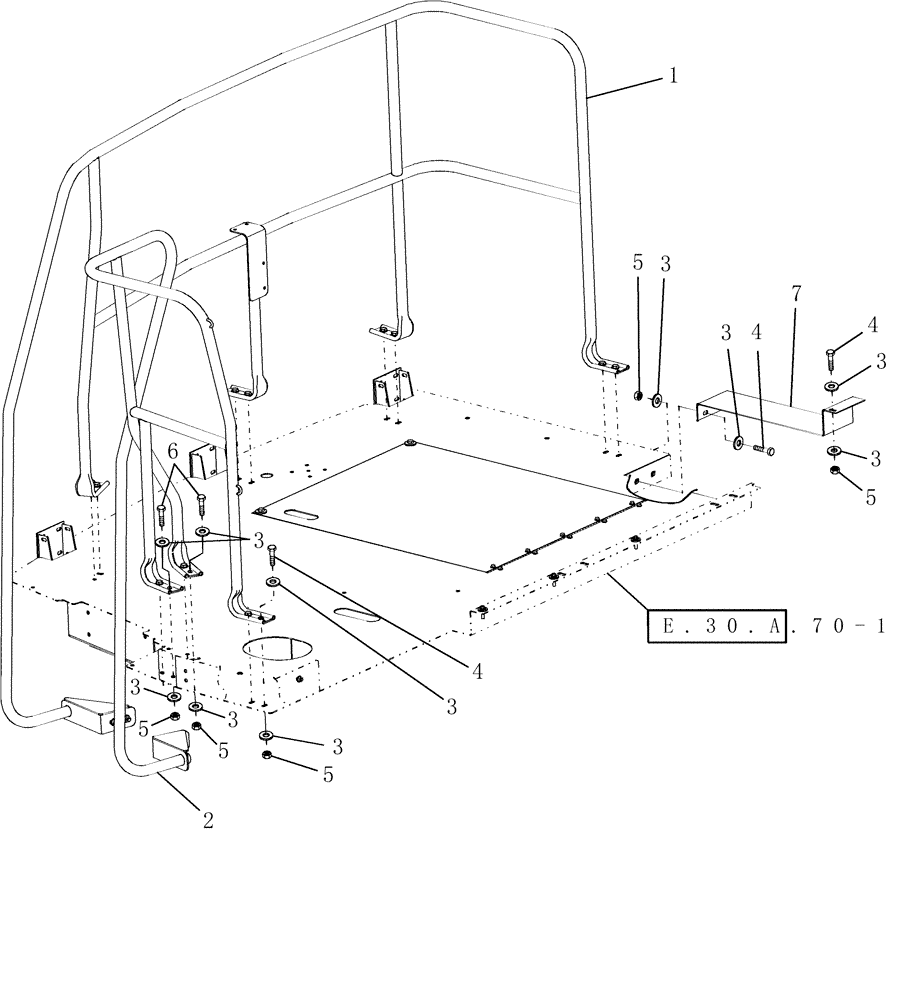

Схема запчастей Case IH AFX8010 - (E.30.A.72[2]) - PLATFORM AND HANDRAILS, REAR - PRIOR TO P.I.N. HAJ105101 E - Body and Structure
5
3
1
3
2
3
3
3
7
e.30.a.70-1
3
3
3
5
5
5
4
6
3
4
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87106993

HANDRAIL

Rear

1шт.

2

87107002

HANDRAIL

Front RH

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

14шт.

5

100016

NUT,M10 x 1.5, Cl 8

18шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

7

87107744

PLATE

1шт.

Выбрано товаров: 7
